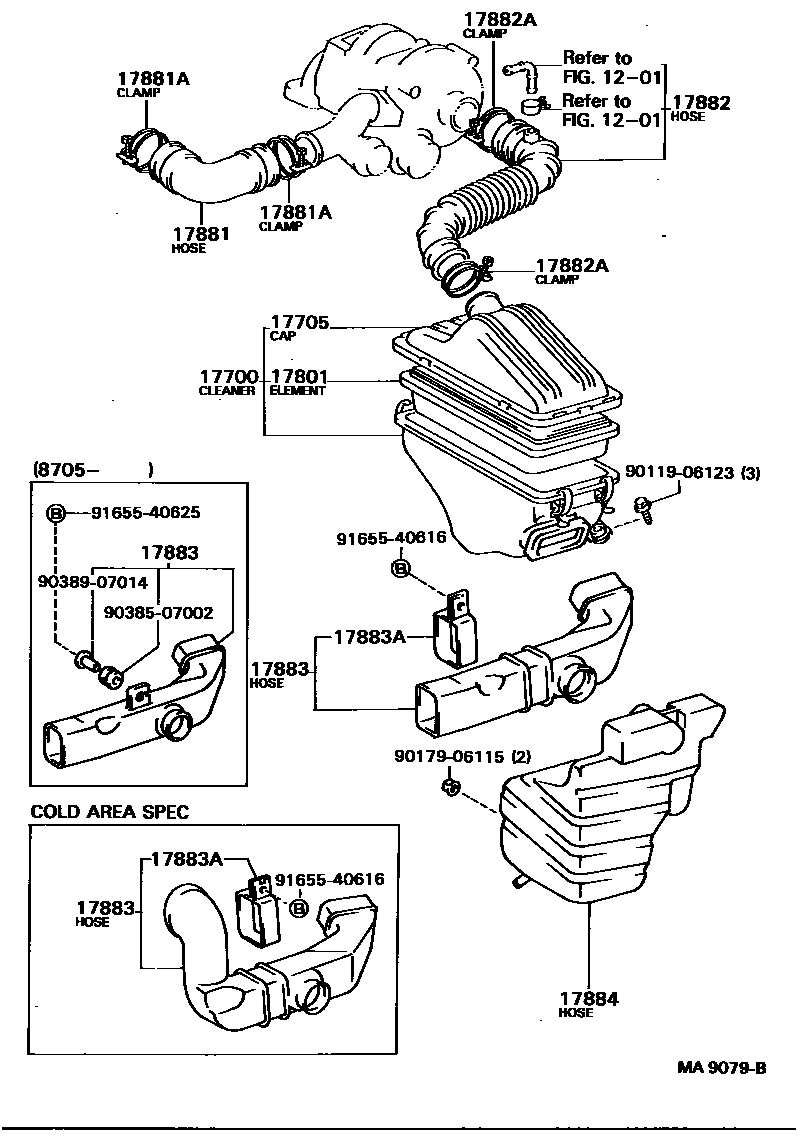

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

1201

17700CLEANER ASSY, AIR

main17700-62010i1VZFE..VZV20198704-198808

sub17700-62020

main17700-63130i1SI..SV20198608-198808

sub17700-74090

main17700-64200i2CT..CV20198608-198808

main17700-74031i3SGE..SV21198608-198808

main17700-74090i3SFE..SV21198608-198808

17705CAP SUB-ASSY, AIR CLEANER

main17705-62010i1VZFE..VZV20198704-198808

main17705-63060i1SI..SV20198608-198808

main17705-64030i2CT..CV20198608-198808

main17705-74031i3SGE..SV21198608-198808

main17705-74090i3SFE..SV21198608-198808

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64040i2CT..CV20198608-198808

main17801-74010i1SI,3S#..SV2#198608-198808

sub17801-55010

main17801-74020i1VZFE..VZV20198704-198808

17881HOSE, AIR CLEANER, NO.1

main17341-64020i2CT..CV20198608-198808

main17881-62010i1VZFE..VZV20198704-198808

main17881-63030i1SI..SV20198608-198808

main17881-74050i3SGE..SV21198608-198808

main17881-74100i3SFE..SV21198608-198808

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-70001i2CT..CV20198608-198808

sub90467-56001

main96111-10710i1SI..SV20198608-198808

main96111-10710i3SFE..SV21198608-198808

AIR CLEANER SIDE

main96111-10750i1VZFE..VZV20198704-198710

NO.1

main96111-10750i1VZFE..VZV20198710-198808

main96111-10780i3SGE..SV21198608-198808

main96111-10830i3SFE..SV21,25198608-198808

PIPE SIDE

main96111-10900i1VZFE..VZV20198704-198710

NO.2

main96111-10900i1VZFE..VZV20198710-198808

17882HOSE, AIR CLEANER, NO.2

main17880-64050i2CT..CV20198608-198808

main17882-63050i1SI..SV20198608-198808

main17882-74031i3SGE..SV21198608-198808

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-75001i2CT..CV20198608-198808

TURBO SIDE

main96111-10670i2CT..CV20198608-198808

AIR CLEANER SIDE

main96111-10710i1SI..SV20198608-198808

main96111-10780i3SGE..SV21198608-198808

PIPE SIDE

main96111-10900i3SGE..SV21198608-198808

AIR FLOW METER SIDE

17883HOSE, AIR CLEANER, NO.3

main17882-63110i2CT..CV20198608-198808

main17882-64040i2CT..CV20198608-198710

COLD SPEC

main17882-64040i2CT..CV20198710-198808

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-01046i2CT..CV20198710-198808

main90460-01046i2CT..CV20198608-198808

17884HOSE, AIR CLEANER, NO.4

main17883-62010i1VZFE..VZV20198704-198808

sub17883-62011

main17883-63030i1SI,3S#..SV2#198608-198808

9011906123

main90119-06123

9017906115

main90179-06115

9038507002

main90385-07002

9038907014

main90389-07014

9165540616

main91655-40616

9165540625

main91655-40625

17 parts on this diagram · 5 diagrams in section
