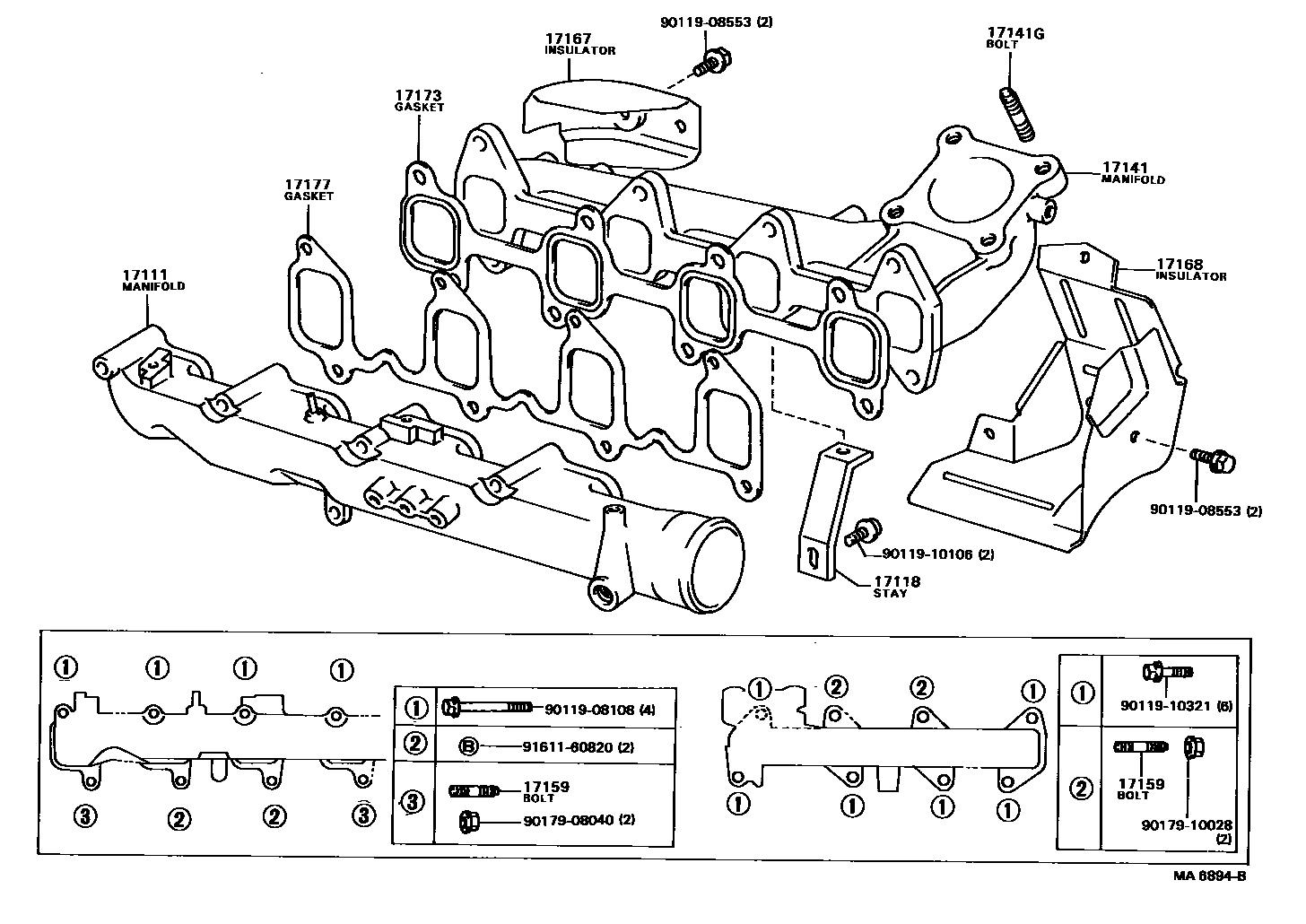

MANIFOLD
17141MANIFOLD, EXHAUST
17141GBOLT, STUD(FOR TURBOCHARGER)
sub90116-10094
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE SIDE
INTAKE SIDE
INTAKE MANIFOLD SIDE
EXHAUST SIDE
*53,EXHAUST SIDE
EXHAUST MANIFOLD
*54,EXHAUST SIDE
EXHAUST SIDE
EXHAUST MANIFOLD SIDE
EXHAUST SIDE
INTAKE MANIFOLD
INTAKE SIDE
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
9011908108
main90119-08108
9011908553
main90119-08553
9011910106
main90119-10106
9011910321
main90119-10321
9017908040
main90179-08040
9017910028
main90179-10028
9161160820
main91611-60820
16 parts on this diagram · 6 diagrams in section
