16261HOSE, WATER BY-PASS

main16261-62010i198704-198808

main16261-63010i198608-198808

main16261-64060i198608-198808

main16261-74010i198608-198808

main16261-88360i198608-198808

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i198704-198808

sub96135-51300

main90467-15004i198608-198808

main90467-21001i198608-198808

sub90467-21006

main90467-22003i198608-198808

sub90467-21010

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-53050i198608-198808

main90406-17001i198608-198808

sub90406-17012

16264HOSE, WATER BY-PASS, NO.2

main16264-62010i198704-198808

main16264-64060i198608-198808

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i198704-198808

sub96135-51300

main90467-15004i198608-198808

16267HOSE, WATER BY-PASS, NO.3

main16267-62010i198704-198808

main16267-64010i198608-198808

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-11009i198608-198802

sub96135-51100

main90467-11049i198802-198808

sub90467-11009

main90467-13001i198704-198808

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-62010i198704-198808

sub16268-62011

main16268-64040i198608-198808

main16268-74010i198608-198808

main16268-74040i198710-198808

main16268-74040i198701-198710

*53

main16268-88360i198701-198710

*54

main16268-88360i198608-198701

16321INLET, WATER

main16321-62010i198704-198808

main16321-64020i198608-198808

main16321-88360i198608-198808

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i198704-198808

main16325-63010i198608-198808

sub16325-63011

16331OUTLET, WATER

main16304-74010i198608-198808

sub16304-74011

main16304-74030i198608-198808

main16331-62010i198704-198808

sub16331-62011

main16331-63060i198608-198808

main16331-63070i198608-198808

main16331-64030i198608-198808

16331ATHERMOSTAT

main90916-03046i198608-198808

main90916-03075i198704-198808

16331BPLUG(FOR WATER OUTLET)

main90344-53011i198608-198805

main90344-53011i198710-198808

main90345-53007i198805-198808

16331GBOLT, STUD(FOR WATER INLET)

main92122-60816i198608-198808

16332PIPE, WATER OUTLET, NO.1

main16332-64010i198608-198808

16341GASKET, WATER OUTLET

main16341-62010i198704-198802

sub16341-62020

main16341-62020i198802-198808

sub16341-62030

main16341-63010i198608-198808

sub16341-63011

main16341-64010i198608-198808

sub16341-64020

16345GASKET, WATER OUTLET PIPE

main16345-64020i198608-198808

sub16345-64040

16361FAN

main16361-63020i198608-198808

sub16361-74070

main16361-63040i198608-198808

main16361-64010i198608-198808

main16361-64020i198608-198808

main16361-64030i198704-198808

main16361-64031i198608-198808

16362FAN, NO.2

main16361-64040i198608-198808

16363MOTOR, COOLING FAN

main16363-10010i198608-198808

main16363-16010i198608-198808

main16363-16020i198608-198808

main16363-55010i198704-198808

main16363-64021i198608-198808

NO.2

main16363-64051i198608-198808

NO.1

main16363-74010i198608-198808

16400RADIATOR ASSY

main16400-62010i198704-198802

sub16400-62011

main16400-62011i198802-198808

sub16400-62020

main16400-62020i198704-198808

main16400-64111i198608-198808

main16400-64192i198608-198808

main16400-74120i198608-198808

sub16400-74450

main16400-74130i198608-198808

sub16400-74450

main16400-74200i198710-198808

sub16400-74450

16470TANK ASSY, RADIATOR RESERVE

main16470-62010i198704-198808

sub16470-62011

main16470-62011i198808-198808

sub16470-62021

main16470-64070i198608-198808

main16470-74040i198608-198808

sub16470-74041

main16470-74041i198808-198808

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i198710-198808

main90445-12078i198608-198808

main90445-12078i198704-198710

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i198608-198808

16471CAP SUB-ASSY, RESERVE TANK

main16405-62010i198704-198808

sub16405-62011

main16405-64010i198608-198808

main16405-74030i198608-198808

sub16405-74031

main16405-74031i198808-198808

sub16405-62011

16472HOSE, BREATHER

main85338-10020i198608-198609

sub85338-74040

main85338-14030i198608-198710

main85338-74040i198609-198808

main85338-95A01i198710-198808

16472APROTECTOR, HOSE

main16472-70070i198608-198808

16533SUPPORT, RADIATOR, UPPER

main16533-64071i198608-198808

main16533-74040i198608-198808

16571HOSE, RADIATOR, INLET

main16571-62010i198704-198808

main16571-63050i198608-198808

main16571-64120i198608-198808

main16571-74050i198608-198808

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i198608-198808

sub90467-34003

main90467-37001i198704-198808

sub90467-37003

16572HOSE, RADIATOR, OUTLET

main16572-62010i198704-198808

main16572-64150i198608-198808

main16572-74030i198608-198808

main16572-74050i198608-198808

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i198608-198808

sub90467-34003

main90467-33002i198608-198710

RADIATOR SIDE

sub90467-34003

main90467-33002i198710-198808

sub90467-34003

main90467-34003i198704-198808

sub90467-34004

main90467-37001i198608-198808

INLET SIDE

sub90467-37003

16611BRACKET, RADIATOR RESERVE TANK

main16402-64010i198608-198808

main16611-74030i198608-198808

16701SHROUD SUB-ASSY, FAN

main16711-62010i198704-198808

main16711-62020i198704-198808

main16711-64071i198608-198808

main16711-64092i198608-198808

main16711-74070i198608-198808

main16711-74080i198608-198808

main16711-74110i198608-198808

16712SHROUD, FAN, NO.2

main16712-64031i198608-198808

9009905164

main90099-05164

9011906056

main90119-06056

9011906311

main90119-06311

9017906115

main90179-06115

9017908040

main90179-08040

9046400459

main90464-00459

9048020014

main90480-20014

9092901017

main90929-01017

9111150625

main91111-50625

9165140816

main91651-40816

9165160814

main91651-60814

9331514010

main93315-14010

9331516014

main93315-16014

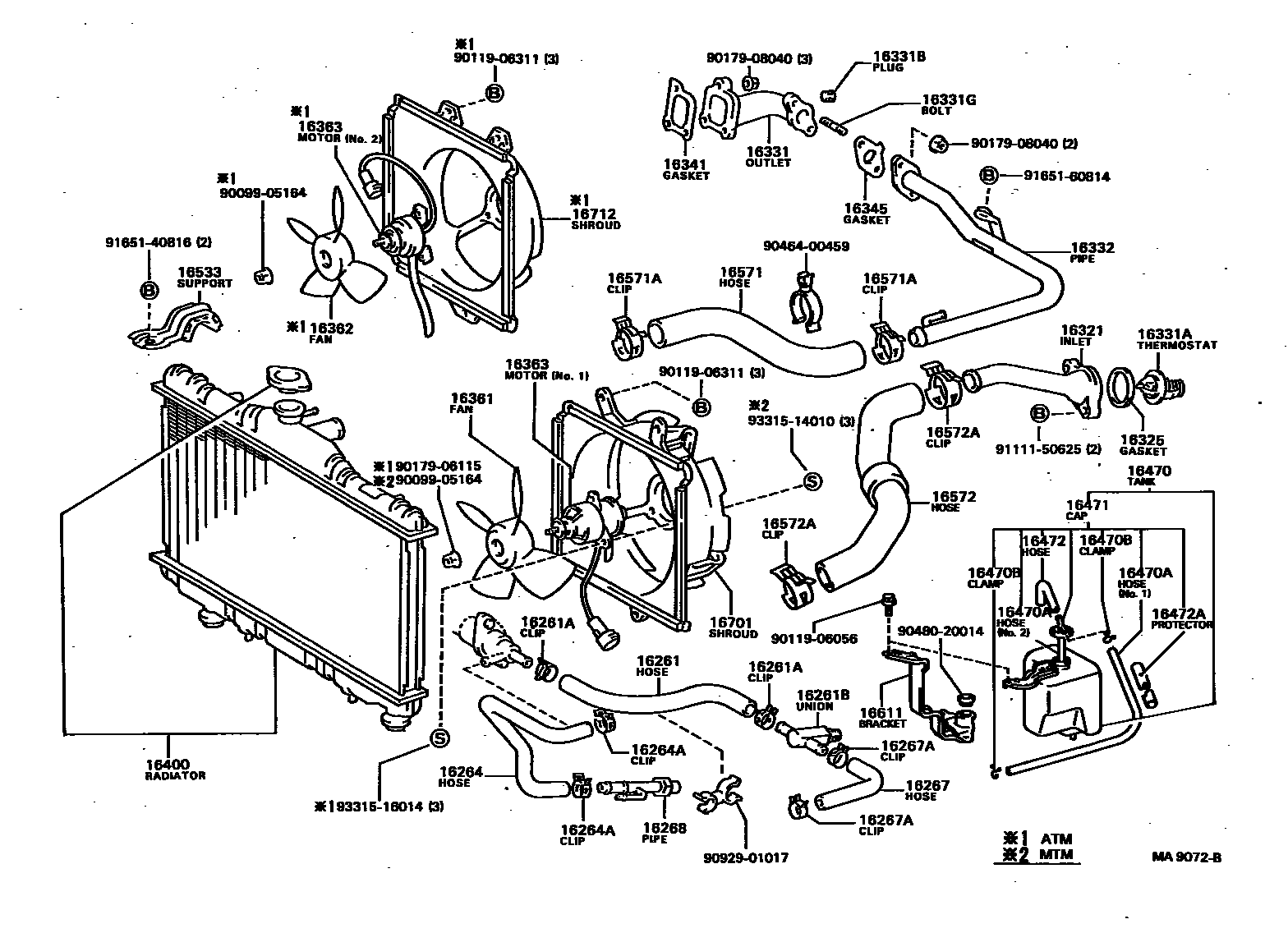

RADIATOR & WATER OUTLET
