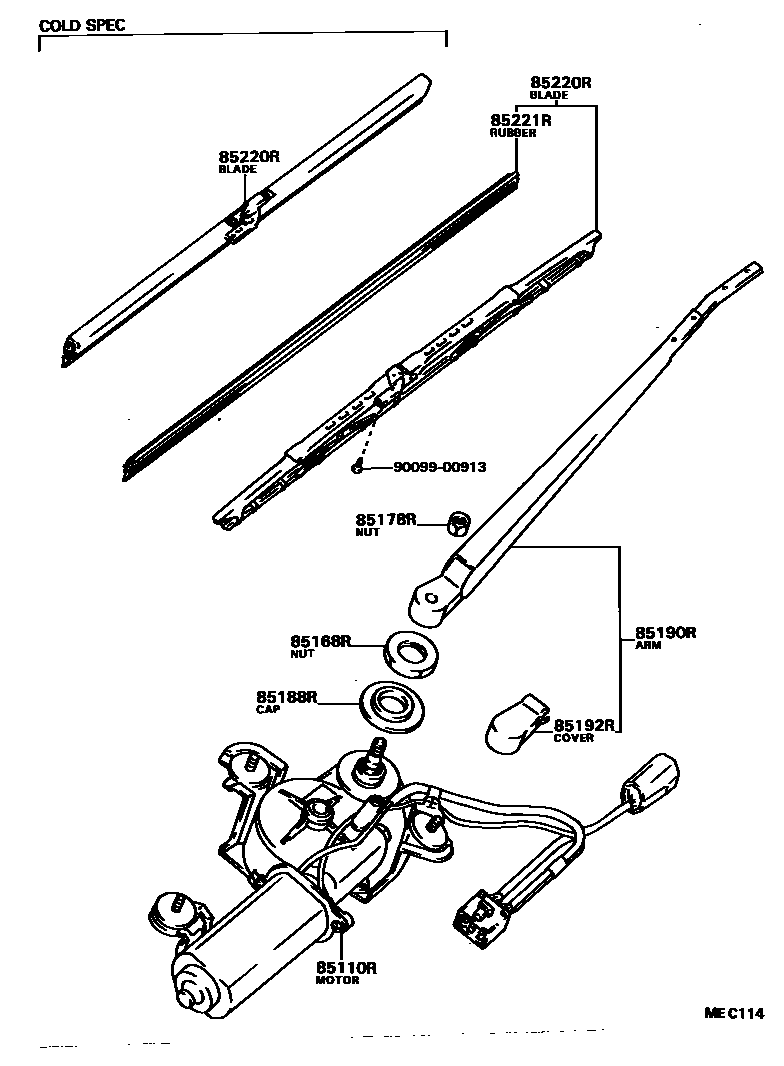

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85110-32030iCV10,SV1#..5D198208-198406

main85110-32130iCV10,SV1#..5D198406-198408

sub85110-32131

main85110-32131iCV1#,SV1#..5D198408-198607

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iCV1#,SV1#..5D198208-198607

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06115iCV1#,SV1#..5D198208-198607

85188RCAP, REAR WIPER PIVOT, NO.1

main85179-16150iCV1#,SV1#..5D198208-198607

85190RARM ASSY, REAR WIPER

main85190-32060iCV10,SV1#..5D198208-198405

main85190-32190iCV1#,SV1#..5D198405-198607

85192RCOVER, REAR WIPER ARM

main85192-32010iCV1#,SV1#..5D198208-198607

85220RBLADE ASSY, REAR WIPER

main85220-12620iCV11,SV11..5D198607-198607

WINTER BLADE

sub85291-12010

main85220-24040iCV1#,SV1#..5D198208-198607

WINTER BLADE

sub85291-24010

main85220-32120iCV1#,SV1#..5D198208-198607

85221RBLADE, REAR WIPER

main85221-14210iCV1#,SV1#..5D198208-198607

sub85214-24H90

9009900913

main90099-00913

9 parts on this diagram · 1 diagram in section
