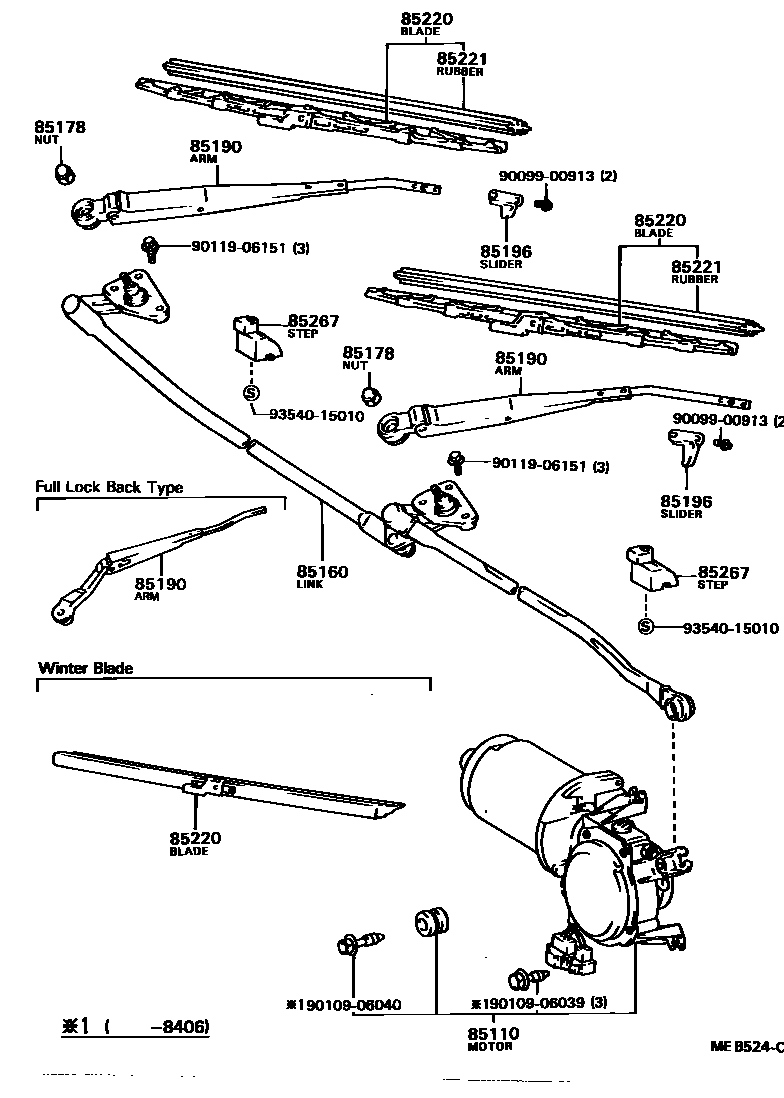

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-32010iCV10,SV1#..LT,VC,VL,XT198203-198406

main85110-32020iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

main85110-32080iCV1#,SV1#..LT,VC,VF,VL,VS,XE,XS,XT198406-198607

sub85110-32100

main85110-32090iSV1#..VR,VX,ZE,ZX198406-198607

main85110-32170iCV11,SV1#..LT,VC,VF,VL,VS,XE,XS,XT198508-198607

COLD SPEC

sub85110-32100

85160LINK ASSY, WINDSHIELD WIPER

main85160-32010iCV1#,SV1#198203-198607

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iCV10,SV1#198203-198508

main90176-08033iCV11,SV1#198508-198607

85190ARM ASSY, WINDSHIELD WIPER

main85190-32010iCV10,SV1#198203-198406

RH,FULL LOCK BACK TYPE

sub85190-32130

main85190-32020iCV10,SV1#198203-198406

LH,FULL LOCK BACK TYPE

sub85210-32110

main85190-32030iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

RH

sub85190-32140

main85190-32040iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

LH

main85190-32130iCV1#,SV1#198406-198607

RH,FULL LOCK BACK TYPE

main85190-32140iSV1#..VR,VX,ZE,ZX198406-198607

RH

main85210-32110iCV1#,SV1#198406-198607

LH,FULL LOCK BACK TYPE

main85210-32120iSV1#..VR,VX,ZE,ZX198406-198607

LH

85196SLIDER, WIPER ARM

main85196-32010iSV1#..SE,VE,VF,VX,XE,ZX198203-198212

RH

main85196-32011iSV10..SE,VE,VR,VX,ZE,ZX;CV10,SV11,12..VF,VX,XE,ZX198212-198607

RH

main85196-32020iSV1#..SE,VE,VF,VX,XE,ZX198203-198212

LH

main85196-32021iCV10,SV1#..SE,VE,VF,VX,XE,ZX198212-198406

LH

main85196-32120iSV1#..VR,VX,ZE,ZX198406-198607

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12620iCV11,SV11198607-198607

LH,WINTER BLADE

sub85291-12010

main85220-16320iCV1#,SV1#..LT,VC,VF,VL,VS,XE,XS,XT198406-198607

LH

sub85220-16321

main85220-16330iSV1#..VR,VX,ZE,ZX198406-198607

LH

sub85222-24050

main85220-16580iCV11,SV11198607-198607

RH,WINTER BLADE

sub85291-16010

main85220-24040iCV1#,SV1#198406-198607

LH,WINTER BLADE

sub85291-24010

main85220-24040iSV1#198203-198308

WINTER BLADE

sub85291-24010

main85220-32010iSV1#..SE,VE,VF,VX,XE,ZX198203-198212

RH

main85220-32020iSV10..LT,VC,VL,XT198203-198206

LH

sub85220-32060

main85220-32030iSV1#..SE,VE,VF,VX,XE,ZX198203-198212

LH

sub85220-32260

main85220-32050iSV1#..LT,VC,VL,XT198206-198212

RH

sub85212-23040

main85220-32060iSV1#..LT,VC,VL,XT198206-198212

LH

sub85220-32150

main85220-32070iSV1#198212-198212

RH

sub85220-32311

main85220-32080iSV1#..LT,VC,VL,XT198212-198212

LH

sub85220-32150

main85220-32090iSV1#..SE,VE,VF,VX,XE,ZX198212-198212

LH

sub85220-32260

main85220-32140iCV10,SV1#198212-198406

RH

sub85220-32310

main85220-32150iCV10,SV1#..LT,VC,VL,XT198212-198406

LH

sub85220-32260

main85220-32260iCV10,SV1#..SE,VE,VF,VX,XE,ZX198212-198406

LH

sub85220-3A120

main85220-32310iCV1#,SV1#198406-198607

RH

sub85220-32311

main85220-40040iCV1#,SV1#198406-198607

RH,WINTER BLADE

sub85291-40010

main85220-40040iCV10,SV1#198308-198406

WINTER BLADE

sub85291-40010

85221BLADE, WINDSHIELD WIPER

main85221-30090iSV1#198212-198308

sub85221-30110

main85221-30110iCV10,SV1#198308-198406

sub85221-30130

main85221-30110iCV1#,SV1#198406-198607

RH

sub85221-30130

main85221-30120iCV1#,SV1#198406-198607

LH

sub85221-40040

main85221-32010iSV1#198203-198212

sub85221-30110

85267STEP, LINEAR WIPER

main85267-32010iSV10..SE,VE,VR,VX,ZE,ZX;CV10,SV11,12..VF,VX,XE,ZX198203-198607

9009900913

main90099-00913

9010906039

main90109-06039

9010906040

main90109-06040

9011906151

main90119-06151

9354015010

main93540-15010

13 parts on this diagram · 1 diagram in section
