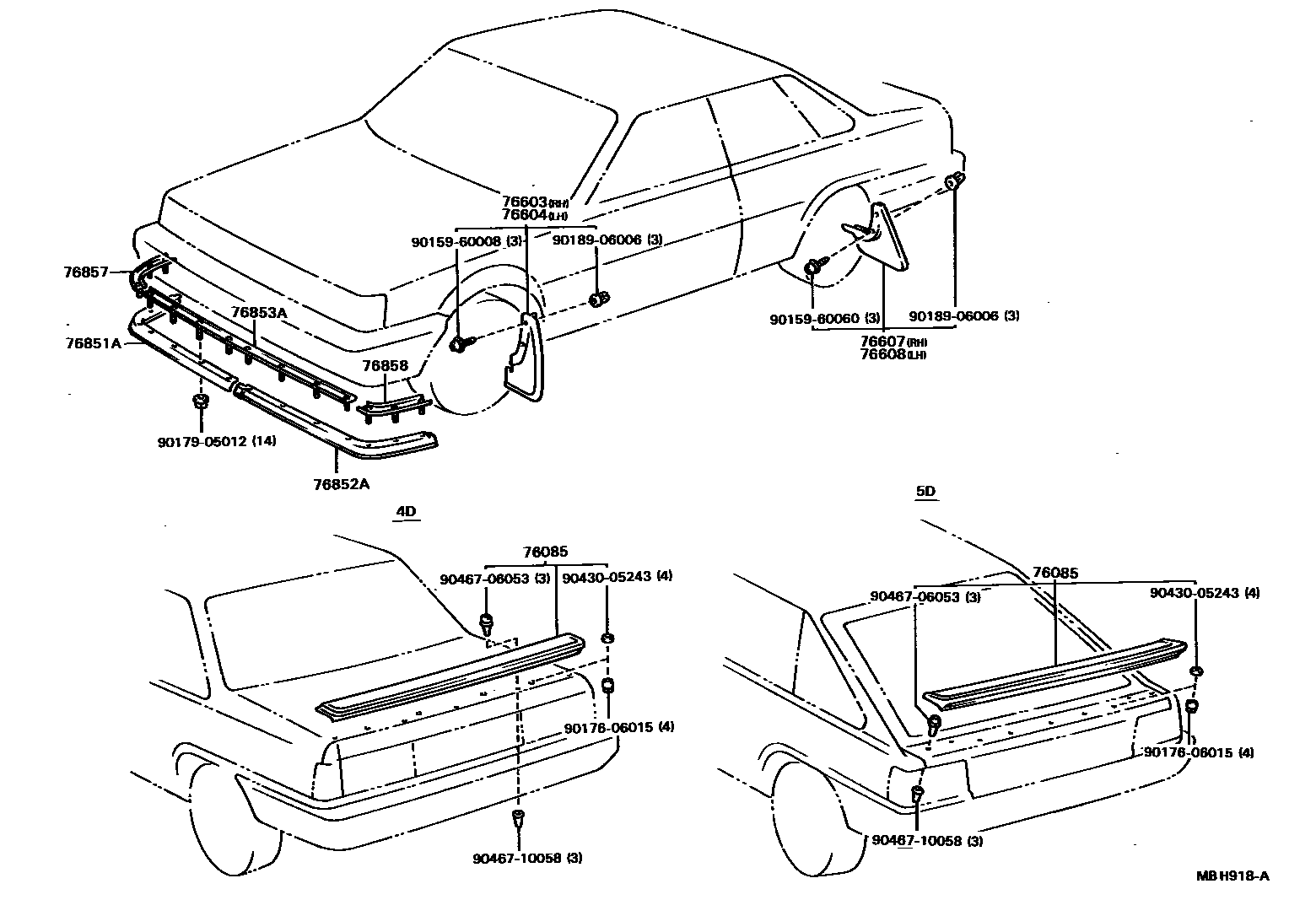

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-32010iSV1#..4D..(VF,VR,VS,VX,XE,XS,ZE,ZX)198406-198607

main76085-32020iSV1#..5D..(VF,VR,VS,VX)198406-198607

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-32030-05iSV12..ZX198509-198607

LIMITED,BEIGE,BEIGE

main76621-39025iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

main76621-39075iCV11,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198509-198607

main76621-39085-08iCV11,SV10..VF198605-198607

VF-2,WHITE,WHITE

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-32030-05iSV12..ZX198509-198607

LIMITED,BEIGE,BEIGE

main76622-39025iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

main76622-39075iCV11,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198509-198607

main76622-39085-08iCV11,SV10..XE198601-198607

LUMIERE,WHITE,WHITE

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-32030-05iSV12..ZX198509-198607

LIMITED,BEIGE,BEIGE

main76625-39045iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

main76625-39105iCV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

main76625-39115-08iCV11,SV10..XE198601-198607

LUMIERE,WHITE,WHITE

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-32030-05iSV12..ZX198509-198607

LIMITED,BEIGE,BEIGE

main76626-39045iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

main76626-39095iCV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

main76626-39105-08iCV11,SV10..XE198601-198607

LUMIERE,WHITE,WHITE

76851ACOVER, FRONT SPOILER, RH

main76851-32010iSV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

76852ACOVER, FRONT SPOILER, LH

main76852-32010iSV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

76853ARETAINER, FRONT SPOILER, UPPER NO.1

main76853-32010iSV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

76857RETAINER, FRONT SPOILER SIDE, RH

main76857-32010iSV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

76858RETAINER, FRONT SPOILER SIDE, LH

main76858-32010iSV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

9015960008

main90159-60008

9015960060

main90159-60060

9017606015

main90176-06015

9017905012

main90179-05012

9018906006

main90189-06006

9043005243

main90430-05243

9046706053

main90467-06053

9046710058

main90467-10058

18 parts on this diagram · 1 diagram in section
