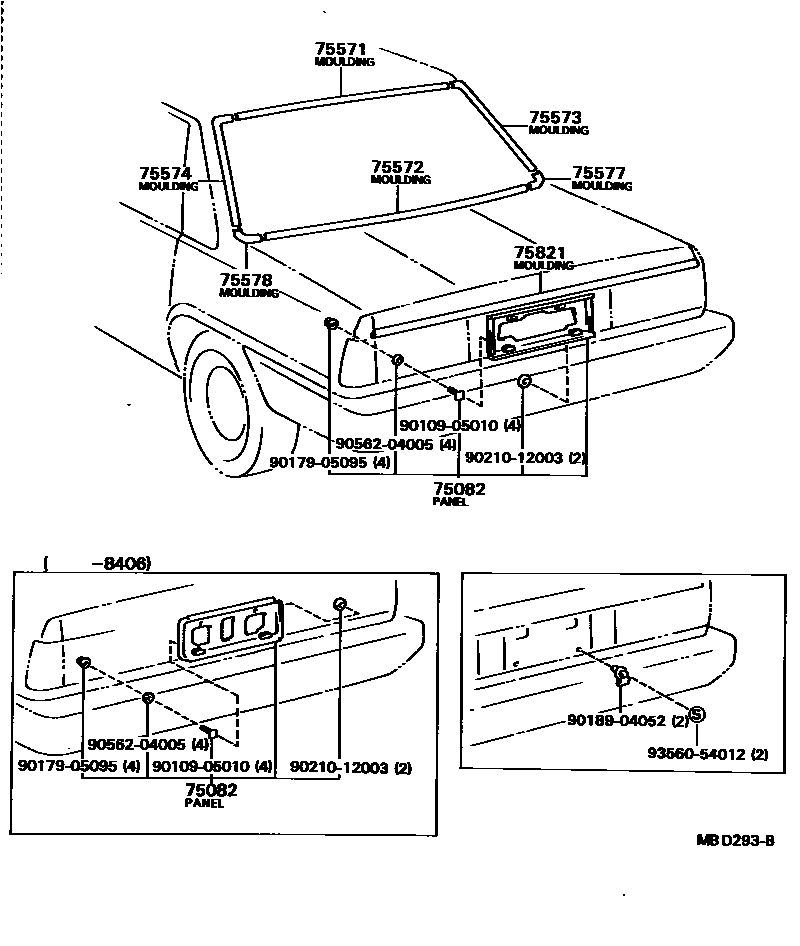

REAR MOULDING

0001 1 0002 1

75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER

main75082-39085iCV10,SV1#..SE,XE,ZX198203-198406

main75082-39095iCV10,SV1#..4D..(VE,VF,VX)198203-198406

main75082-39155iCV10,SV1#..XE,XS,ZE,ZX198406-198607

sub75082-32060

main75082-39165iCV1#,SV1#..4D..(VF,VR,VS,VX)198406-198607

sub75082-32070

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-32010iCV1#,SV1#..4D198203-198607

main75571-32020iCV1#,SV1#..5D198208-198607

75572MOULDING, BACK WINDOW, LOWER

main75575-32010iCV10,SV1#..4D198203-198501

main75575-32011iCV1#,SV1#..4D198501-198607

main75575-32020iCV1#,SV1#..5D198208-198607

75573MOULDING, BACK WINDOW SIDE, RH

main75573-32010iCV1#,SV1#..4D198203-198607

main75573-32020iCV1#,SV1#..5D198208-198607

75574MOULDING, BACK WINDOW SIDE, LH

main75574-32010iCV1#,SV1#..4D198203-198607

main75574-32020iCV1#,SV1#..5D198208-198607

75577MOULDING, BACK WINDOW CORNER, LOWER RH

main75583-32010iCV1#,SV1#..4D198203-198607

75578MOULDING, BACK WINDOW CORNER, LOWER LH

main75584-32010iCV1#,SV1#..4D198203-198607

75821MOULDING, LUGGAGE COMPARTMENT DOOR BACK

main75813-32010iCV10,SV1#..4D198203-198406

main75813-32020iCV1#,SV1#..4D198406-198607

9010905010

main90109-05010

9017905095

main90179-05095

9018904052

main90189-04052

9021012003

main90210-12003

9056204005

main90562-04005

9356054012

main93560-54012

14 parts on this diagram · 2 diagrams in section
