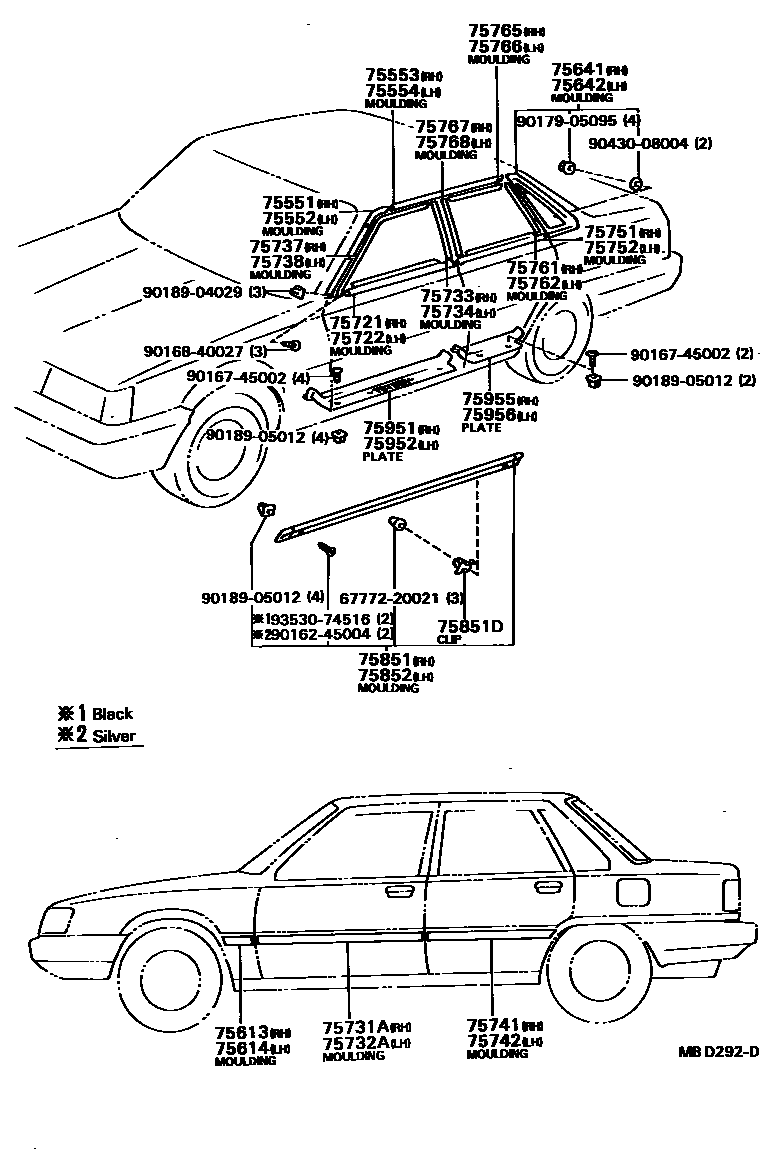

SIDE MOULDING

0001 1 0002 1

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-32010iCV1#,SV1#..4D198203-198607

main75551-32020iCV1#,SV1#..5D198208-198607

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-32010iCV1#,SV1#..4D198203-198607

main75552-32020iCV1#,SV1#..5D198208-198607

75553MOULDING, ROOF DRIP SIDE FINISH, RH

main75553-32010iCV1#,SV1#..4D198203-198607

main75553-32020iCV1#,SV1#..5D198208-198607

75554MOULDING, ROOF DRIP SIDE FINISH, LH

main75554-32010iCV1#,SV1#..4D198203-198607

main75554-32020iCV1#,SV1#..5D198208-198607

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75611-32030-01iCV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX198203-198406

BLACK,BLACK

main75611-32030-03iCV10,SV1#..SE,XE,ZX198203-198406

GRAY,GRAY,033

main75611-32030-05iCV10,SV1#..VE,VF,VX198203-198406

BEIGE,BEIGE

main75611-32030-13iCV10,SV1#..SE,XE,ZX198203-198406

DARK GRAY,GRAY,865

main75611-32050-01iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

BLACK,BLACK

main75611-32050-05iSV12..VX,ZX198406-198607

BEIGE,BEIGE

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75612-32030-01iCV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX198203-198406

BLACK,BLACK

main75612-32030-03iCV10,SV1#..SE,XE,ZX198203-198406

GRAY,GRAY,033

main75612-32030-05iCV10,SV1#..VE,VF,VX198203-198406

BEIGE,BEIGE

main75612-32030-13iCV10,SV1#..SE,XE,ZX198203-198406

DARK GRAY,GRAY,865

main75612-32050-01iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

BLACK,BLACK

main75612-32050-05iSV12..VX,ZX198406-198607

BEIGE,BEIGE

75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH

main68153-39025iCV1#,SV1#..4D198203-198607

sub68153-32010

main68153-39035iCV1#,SV1#..5D198208-198607

sub68153-32020

75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH

main68154-39025iCV1#,SV1#..4D198203-198607

sub68154-32010

main68154-39035iCV1#,SV1#..5D198208-198607

sub68154-32020

75721MOULDING, FRONT DOOR BELT, RH

main75710-32010iCV10,SV1#198203-198406

W/O DOOR MIRROR

main75710-32020iCV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX198305-198406

W/DOOR MIRROR

main75710-32020iCV1#,SV1#198406-198607

75722MOULDING, FRONT DOOR BELT, LH

main75720-32010iCV10,SV1#198203-198406

W/O DOOR MIRROR

main75720-32020iCV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX198305-198406

W/DOOR MIRROR

main75720-32020iCV1#,SV1#198406-198607

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-32030-01iCV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX198203-198406

BLACK,BLACK

main75731-32030-03iCV10,SV1#..SE,XE,ZX198203-198406

GRAY,GRAY,033

main75731-32030-05iCV10,SV1#..VE,VF,VX198203-198406

BEIGE,BEIGE

main75731-32030-13iCV10,SV1#..SE,XE,ZX198203-198406

DARK GRAY,GRAY,865

main75731-32050-01iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

BLACK,BLACK

main75731-32050-05iSV12..VX,ZX198406-198607

BEIGE,BEIGE

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-32030-01iCV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX198203-198406

BLACK,BLACK

main75732-32030-03iCV10,SV1#..SE,XE,ZX198203-198406

GRAY,GRAY,033

main75732-32030-05iCV10,SV1#..VE,VF,VX198203-198406

BEIGE,BEIGE

main75732-32030-13iCV10,SV1#..SE,XE,ZX198203-198406

DARK GRAY,GRAY,865

main75732-32050-01iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

BLACK,BLACK

main75732-32050-05iSV12..VX,ZX198406-198607

BEIGE,BEIGE

75733MOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-32010iSV1#..4D..(VR,VX,ZE,ZX)198203-198607

main75755-32010iCV10,SV1#..4D..(VE,VF)198301-198406

EXTRA

main75755-32010iCV10,SV1#..4D..(VE,VF)198301-198406

SALOON

main75755-32020iCV10,SV1#..5D..(VE,VF)198301-198406

EXTRA

main75755-32020iSV1#..5D..(VR,VX)198208-198607

75734MOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-32010iCV10,SV1#..SE,XE198301-198406

EXTRA

main75756-32010iCV10,SV1#..SE,XE198301-198406

SALOON

main75756-32010iSV1#..4D..(VR,VX,ZE,ZX)198203-198607

main75756-32020iSV1#..5D..(VR,VX)198208-198607

main75756-32020iCV10,SV1#..5D..(VE,VF)198301-198406

EXTRA

75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-32010iCV10,SV1#..4D..(VE,VF)198301-198406

EXTRA

main75751-32010iCV10,SV1#..4D..(VE,VF)198301-198406

SALOON

main75751-32010iSV1#..4D..(VR,VX,ZE,ZX)198203-198607

main75751-32020iSV1#..5D..(VR,VX)198208-198607

main75751-32020iCV10,SV1#..5D..(VE,VF)198301-198406

EXTRA

75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-32010iCV10,SV1#..SE,XE198301-198406

SALOON

main75752-32010iCV10,SV1#..4D..(VE,VF)198301-198406

EXTRA

main75752-32010iSV1#..4D..(VR,VX,ZE,ZX)198203-198607

main75752-32020iCV10,SV1#..5D..(VE,VF)198301-198406

EXTRA

main75752-32020iSV1#..5D..(VR,VX)198208-198607

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-32030-01iCV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX198203-198406

BLACK,BLACK

main75741-32030-03iCV10,SV1#..SE,XE,ZX198203-198406

GRAY,GRAY,033

main75741-32030-05iCV10,SV1#..VE,VF,VX198203-198406

BEIGE,BEIGE

main75741-32030-13iCV10,SV1#..SE,XE,ZX198203-198406

DARK GRAY,GRAY,865

main75741-32060iCV1#,SV10,11..VF,VL,VR,VX,XE,XT,ZE,ZX198406-198607

BLACK

main75741-32070-01iSV12198406-198607

BLACK,BLACK

main75741-32070-05iSV12..VX,ZX198406-198607

BEIGE,BEIGE

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-32030-01iCV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX198203-198406

BLACK,BLACK

main75742-32030-03iCV10,SV1#..SE,XE,ZX198203-198406

GRAY,GRAY,033

main75742-32030-05iCV10,SV1#..VE,VF,VX198203-198406

BEIGE,BEIGE

main75742-32030-13iCV10,SV1#..SE,XE,ZX198203-198406

DARK GRAY,GRAY,865

main75742-32060iCV1#,SV10,11..VF,VL,VR,VX,XE,XT,ZE,ZX198406-198607

BLACK

main75742-32070-01iSV12198406-198607

BLACK,BLACK

sub75742-32060

main75742-32070-05iSV12..VX,ZX198406-198607

BEIGE,BEIGE

sub75742-32060

75751MOULDING, REAR DOOR BELT, RH

main75730-32010iCV1#,SV1#198203-198607

75752MOULDING, REAR DOOR BELT, LH

main75740-32010iCV1#,SV1#198203-198607

75761MOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-32010iCV10,SV1#..SE,XE198301-198406

SALOON

main75765-32010iCV10,SV1#..4D..(VE,VF)198301-198406

EXTRA

main75765-32010iSV1#..4D..(VR,VX,ZE,ZX)198203-198607

main75765-32020iSV1#..5D..(VR,VX)198208-198607

main75765-32020iCV10,SV1#..5D..(VE,VF)198301-198406

EXTRA

75762MOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-32010iCV10,SV1#..SE,XE198301-198406

EXTRA

main75766-32010iCV10,SV1#..SE,XE198301-198406

SALOON

main75766-32010iSV1#..4D..(VR,VX,ZE,ZX)198203-198607

main75766-32020iSV1#..5D..(VR,VX)198208-198607

main75766-32020iCV10,SV1#..5D..(VE,VF)198301-198406

EXTRA

75765MOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-32010iCV10,SV1#..4D..(VE,VF)198301-198406

EXTRA

main75763-32010iCV10,SV1#..4D..(VE,VF)198301-198406

SALOON

main75763-32010iSV1#..4D..(VR,VX,ZE,ZX)198203-198607

main75763-32020iSV1#..5D..(VR,VX)198208-198607

main75763-32020iCV10,SV1#..5D..(VE,VF)198301-198406

EXTRA

75766MOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-32010iSV1#..4D..(VR,VX,ZE,ZX)198203-198607

main75764-32010iCV10,SV1#..4D..(VE,VF)198301-198406

EXTRA

main75764-32010iCV10,SV1#..4D..(VE,VF)198301-198406

SALOON

main75764-32020iSV1#..5D..(VR,VX)198208-198607

main75764-32020iCV10,SV1#..5D..(VE,VF)198301-198406

EXTRA

75767MOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-32010iCV10,SV1#..4D..(VE,VF)198301-198406

SALOON

main75761-32010iCV10,SV1#..SE,XE198301-198406

EXTRA

main75761-32010iSV1#..4D..(VR,VX,ZE,ZX)198203-198607

main75761-32020iSV1#..5D..(VR,VX)198208-198607

main75761-32020iCV10,SV1#..5D..(VE,VF)198301-198406

EXTRA

75768MOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-32010iCV10,SV1#..4D..(VE,VF)198301-198406

SALOON

main75762-32010iCV10,SV1#..SE,XE198301-198406

EXTRA

main75762-32010iSV1#..4D..(VR,VX,ZE,ZX)198203-198607

main75762-32020iCV10,SV1#..5D..(VE,VF)198301-198406

EXTRA

main75762-32020iSV1#..5D..(VR,VX)198208-198607

75851MOULDING, ROCKER PANEL, RH

main75850-39045iSV10..LT,VC,VL,XT198203-198305

sub75850-32010

main75850-39055iSV10..SE,XT198301-198303

SALOON

sub75850-32020

main75850-39055iSV10..VE,VL198301-198303

EXTRA

sub75850-32020

main75850-39055iSV11198208-198607

sub75850-32020

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main75867-32010iCV1#,SV1#198203-198607

75852MOULDING, ROCKER PANEL, LH

main75850-39045iSV10..LT,VC,VL,XT198203-198305

sub75850-32010

main75850-39055iSV10..VE,VL198301-198303

EXTRA

sub75850-32020

main75850-39055iSV10..VE,VL198301-198303

SALOON

sub75850-32020

main75850-39055iSV11198208-198607

sub75850-32020

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-32010-03iCV10,SV1#198203-198406

GRAY,GRAY,TRIM1#

main67913-32010-04iCV10,SV1#198203-198607

BLUE,BLUE,TRIM8#

main67913-32010-05iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198408-198607

BEIGE,BEIGE,TRIM4#

main67913-32010-06iCV10,SV1#198203-198406

BROWN,BROWN,TRIM4#

main67913-32010-13iCV1#,SV1#198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67913-32010-03iCV10,SV1#198203-198406

GRAY,GRAY,TRIM1#

main67913-32010-04iCV10,SV1#198203-198607

BLUE,BLUE,TRIM8#

main67913-32010-05iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198408-198607

BEIGE,BEIGE,TRIM4#

main67913-32010-06iCV10,SV1#198203-198406

BROWN,BROWN,TRIM4#

main67913-32010-13iCV1#,SV1#198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67917-32010-03iCV10,SV1#198203-198406

GRAY,GRAY,TRIM1#

main67917-32010-04iCV10,SV1#198203-198607

BLUE,BLUE,TRIM8#

main67917-32010-05iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198408-198607

BEIGE,BEIGE,TRIM4#

main67917-32010-06iCV10,SV1#198203-198406

BROWN,BROWN,TRIM4#

main67917-32010-13iCV1#,SV1#198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67917-32010-03iCV10,SV1#198203-198406

GRAY,GRAY,TRIM1#

main67917-32010-04iCV10,SV1#198203-198607

BLUE,BLUE,TRIM8#

main67917-32010-05iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198408-198607

BEIGE,BEIGE,TRIM4#

main67917-32010-06iCV10,SV1#198203-198406

BROWN,BROWN,TRIM4#

main67917-32010-13iCV1#,SV1#198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9016245004

main90162-45004

9016745002

main90167-45002

9016840027

main90168-40027

9017905095

main90179-05095

9018904029

main90189-04029

9018905012

main90189-05012

9043008004

main90430-08004

9353074516

main93530-74516

42 parts on this diagram · 2 diagrams in section
