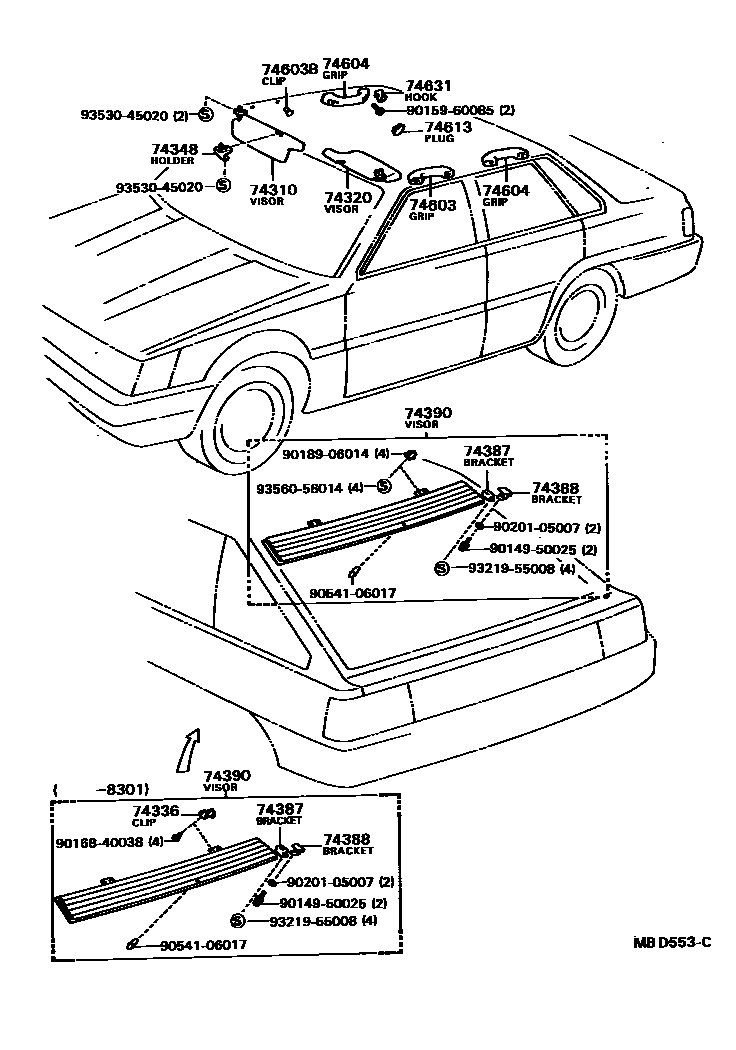

ARMREST & VISOR

0001 1 0002 1 0003 1

74310VISOR ASSY, RH

main74310-32010-03iCV10,SV1#..LT,VC,VL,XT198203-198406

GRAY,GRAY,TRIM1#,8#

sub74310-32130

main74310-32010-05iCV10,SV1#..LT,VC,VL,XT198203-198406

BEIGE,BEIGE,TRIM4#

sub74310-32130

main74310-32020-03iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

W/O SUN ROOF,GRAY,GRAY,TRIM1#,8#

sub74310-32140

main74310-32020-05iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

W/O SUN ROOF,BEIGE,BEIGE,TRIM4#

sub74310-32140

main74310-32030-03iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

W/SUN ROOF,GRAY,GRAY,TRIM1#,8#

sub74310-32150

main74310-32030-05iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

sub74310-32150

main74310-32130-03iCV10,SV10,12..LT,VC,VL,VS,XS,XT198406-198408

W/O SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

sub74310-32160

main74310-32140-03iCV10,SV1#..VF,VR,VX,XE,ZE,ZX198406-198408

W/O SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

sub74310-32180

main74310-32140-05iCV10,SV1#..VF,VR,VX,XE,ZE,ZX198408-198408

W/O SUN ROOF,BEIGE,BEIGE,TRIM4#

sub74310-32180

main74310-32150-03iCV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

W/SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

main74310-32150-05iCV1#,SV1#..VF,VR,VX,XE,ZE,ZX198408-198607

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main74310-32160-03iCV1#,SV10,12..LT,VC,VL,VS,XS,XT198408-198607

W/O SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

main74310-32160-05iCV11,SV10..VF198601-198607

VF-2,BEIGE,BEIGE,TRIM4#

main74310-32160-05iCV1#,SV10..LT,VC,VL,XT198408-198607

W/O SUN ROOF,BEIGE,BEIGE,TRIM4#

main74310-32160-05iCV11,SV10..VF,XE198505-198601

LUMIERE,VF-2,BEIGE,BEIGE,TRIM4#

main74310-32180-03iCV1#,SV1#..VF,VR,VX,XE,ZE,ZX198408-198607

W/O SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

main74310-32180-05iCV1#,SV1#..VF,VR,VX,XE,ZE,ZX198408-198607

W/O SUN ROOF,BEIGE,BEIGE,TRIM4#

74320VISOR ASSY, LH

main74320-32010-03iCV10,SV1#..LT,VC,VL,XT198203-198406

GRAY,GRAY,TRIM1#,8#

sub74320-32100

main74320-32010-05iCV10,SV1#..LT,VC,VL,XT198203-198406

BEIGE,BEIGE,TRIM4#

sub74320-32100

main74320-32020-03iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

GRAY,GRAY,TRIM1#,8#

sub74320-32110

main74320-32020-05iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

BEIGE,BEIGE,TRIM4#

sub74320-32110

main74320-32070-03iCV10,SV10,11..VF,XE198406-198408

W/O SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

sub74320-32150

main74320-32070-03iCV10,SV10,11..VF,XE198406-198408

W/SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

sub74320-32150

main74320-32070-05iCV1#,SV10,11..VF,XE198408-198607

W/O SUN ROOF,BEIGE,BEIGE,TRIM4#

sub74320-32150

main74320-32100-03iCV10,SV10,12..LT,VC,VL,VS,XT198406-198408

W/O SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

sub74320-32130

main74320-32100-05iCV1#,SV10..LT,VC,VL,XT198408-198607

W/O SUN ROOF,BEIGE,BEIGE,TRIM4#

sub74320-32130

main74320-32110-03iSV1#..VR,VX,ZE,ZX198406-198607

W/SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

main74320-32110-03iCV1#,SV10,11..VF,XE198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

main74320-32110-05iSV1#..VR,VX,ZE,ZX198408-198607

BEIGE,BEIGE,TRIM4#

main74320-32110-05iSV1#..VR,VX,ZE,ZX198408-198607

W/SUN ROOF BEIGE,BEIGE,TRIM4#

main74320-32130-03iCV1#,SV10,12..LT,VC,VL,VS,XT198408-198607

W/O SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

main74320-32130-05iCV11,SV10..VF,XE198505-198601

LUMIERE,VF-2,BEIGE,BEIGE,TRIM4#

main74320-32130-05iCV11,SV10..VF198601-198607

VF-2,BEIGE,BEIGE,TRIM4#

main74320-32150-03iCV1#,SV10,11..VF,XE198408-198607

W/SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

main74320-32150-03iSV12..VS,XS198408-198607

W/O SUN ROOF,SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

main74320-32150-05iCV1#,SV10,11..VF,XE198408-198607

W/O SUN ROOF,BEIGE,BEIGE,TRIM4#

74336CLIP, VISOR ARM SET

main74336-14020iSV1#..5D198208-198301

74348HOLDER, VISOR

main74348-32010-03iCV1#,SV1#198203-198607

GRAY,LIGHT GRAY,TRIM1#,8#

sub74348-17010

sub74348-12020

sub74348-32010

main74348-32010-05iCV10,SV1#198203-198607

BEIGE,BEIGE,TRIM4#

sub74348-17010

sub74348-12020

sub74348-32010

74387BRACKET, REAR VISOR, NO.1

main74387-14010iCV1#,SV1#..5D198208-198607

74388BRACKET, REAR VISOR, NO.2

main74388-32010iCV1#,SV1#..5D198208-198607

74390VISOR ASSY, REAR, INNER

main74390-39015iSV1#..5D198208-198301

main74390-39016iCV1#,SV1#..5D198301-198607

sub74390-32011

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-20030-06iCV10,SV1#198203-198406

DARK BROWN,BROWN,TRIM4#

sub74610-20030

main74610-20030-15iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198408-198607

BEIGE,BEIGE,TRIM4#

sub74610-20030

main74610-20030-23iCV10,SV1#198203-198406

DARK GRAY,GRAY,TRIM1#

sub74610-20030

main74610-20030-24iCV10,SV1#198203-198607

BLUE,BLUE,TRIM8#

sub74610-20030

main74610-20030-33iCV1#,SV1#198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub74610-20030

74603BCLIP (FOR ASSIST GRIP)

main90467-06029-03iCV1#,SV1#198203-198607

GRAY,GRAY,TRIM1#,8#

main90467-06029-05iCV10,SV1#198203-198607

BEIGE,BEIGE,TRIM4#

74604GRIP SUB-ASSY, ASSIST, REAR

main74610-20030-06iCV10,SV1#198203-198406

DARK BROWN,BROWN,TRIM4#

sub74610-20030

main74610-20030-15iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198408-198607

BEIGE,BEIGE,TRIM4#

sub74610-20030

main74610-20030-23iCV10,SV1#198203-198406

DARK GRAY,GRAY,TRIM1#

sub74610-20030

main74610-20030-24iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198203-198607

BLUE,BLUE,TRIM8#

sub74610-20030

main74610-20030-33iCV1#,SV1#198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub74610-20030

74613PLUG, ASSIST GRIP

main74617-14010-15iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198408-198607

BEIGE,BEIGE,TRIM4#

sub74617-14010

main74617-14010-16iCV10,SV1#198203-198406

DARK BROWN,BROWN,TRIM4#

sub74617-14010

main74617-14010-23iCV10,SV1#198203-198406

DARK GRAY,GRAY,TRIM1#

sub74617-14010

main74617-14010-24iCV10,SV1#198203-198607

BLUE,BLUE,TRIM8#

sub74617-14010

main74617-14010-43iCV1#,SV1#198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub74617-14010

74631HOOK, COAT, A

main74631-14010-16iCV10,SV1#198203-198406

DARK BROWN,BROWN,TRIM4#

sub74631-14010

sub74631-20040

main74631-14010-24iCV10,SV1#198203-198406

BLUE,BLUE,TRIM8#

sub74631-14010

sub74631-20040

main74631-14010-33iCV10,SV1#198203-198406

DARK GRAY,GRAY,TRIM1#

sub74631-14010

sub74631-20040

9014950025

main90149-50025

9015960085

main90159-60085

9016840038

main90168-40038

9018906014

main90189-06014

9020105007

main90201-05007

9054106017

main90541-06017

9321955008

main93219-55008

9353045020

main93530-45020

9356056014

main93560-56014

21 parts on this diagram · 3 diagrams in section
