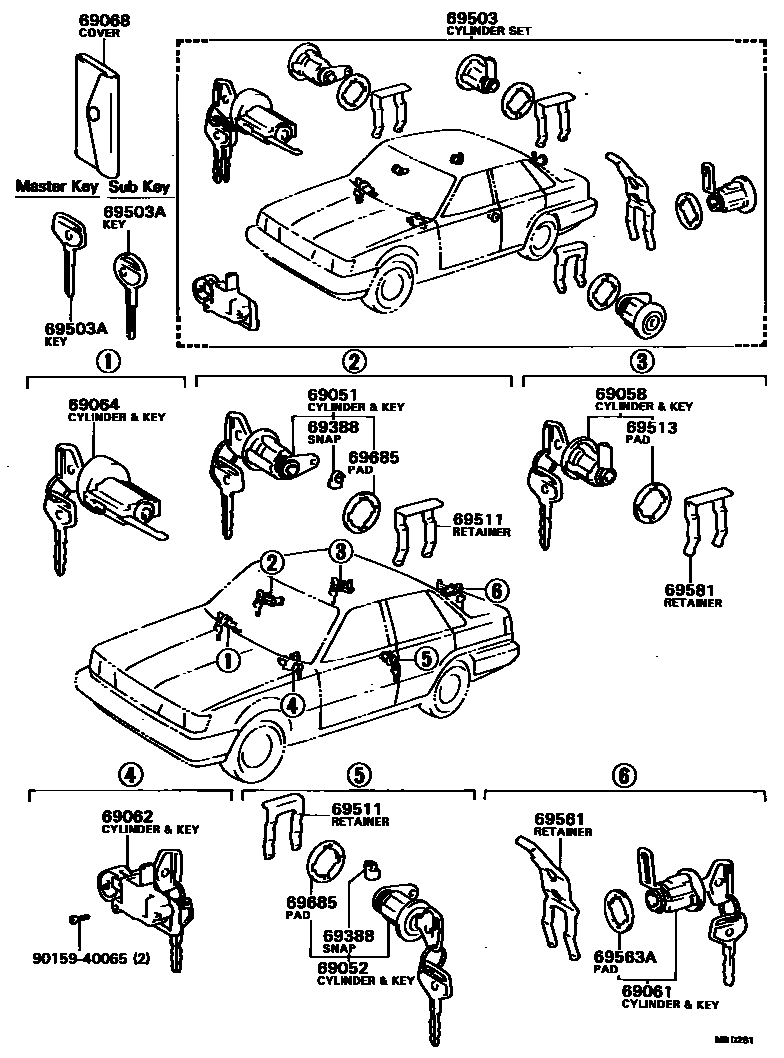

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-32010iCV1#,SV1#¥3,520198203-198607

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-32010iCV1#,SV1#¥3,050198203-198607

sub69052-32041¥3,670

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-32010iCV10,SV1#198203-198406

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-32010iCV10,SV1#..4D198203-198406

main69055-32070iCV1#,SV1#..4D¥3,360198406-198607

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-32010-03iCV10,SV1#198203-198406

GRAY,GRAY,TRIM1#

sub69056-32010¥5,100

main69056-32010-04iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198203-198607

BLUE,BLUE,TRIM8#

sub69056-32010¥5,100

main69056-32010-05iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198408-198607

BEIGE,BEIGE,TRIM4#

sub69056-32010¥5,100

main69056-32010-06iCV10,SV1#198203-198406

BROWN,BROWN,TRIM4#

sub69056-32010¥5,100

main69056-32010-13iCV1#,SV1#198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub69056-32010¥5,100

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-32010iCV1#,SV1#¥5,700198203-198607

sub69057-32031¥7,000

69068COVER SUB-ASSY, KEY

main69555-20010iCV1#,SV1#¥780198203-198607

69388SNAP, ROD(FOR DOOR LOCK)

main69759-24080iCV1#,SV1#¥200198203-198607

LH,W/FR DOOR

main69759-24080iCV1#,SV1#..5D¥200198208-198607

W/BACK DOOR

main69759-24090iCV1#,SV1#¥180198203-198607

RH,W/FR DOOR

69503CYLINDER SET, LOCK

main69005-32010-03iCV10,SV1#..4D198203-198406

GRAY,GRAY,TRIM1#

sub69005-32010¥25,300

main69005-32010-04iCV10,SV1#..4D198203-198406

BLUE,BLUE,TRIM8#

sub69005-32010¥25,300

main69005-32010-06iCV10,SV1#..4D198203-198406

BROWN,BROWN,TRIM4#

sub69005-32010¥25,300

main69005-32030-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

main69005-32030-04iCV10,SV1#..5D198208-198406

BLUE,BLUE,TRIM8#

main69005-32030-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

main69005-32100-03iCV1#,SV1#..4D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub69005-32100¥24,300

main69005-32100-04iCV1#,SV1#..4D..(LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX)198406-198607

BLUE,BLUE,TRIM8#

sub69005-32100¥24,300

main69005-32100-05iCV1#,SV1#..4D..(LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX)198408-198607

BEIGE,BEIGE,TRIM4#

sub69005-32100¥24,300

main69005-32130-03iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub69005-32130¥24,300

main69005-32130-04iCV1#,SV1#..5D..(VF,VL,VR,VX)198406-198607

BLUE,BLUE,TRIM8#

sub69005-32130¥24,300

main69005-32130-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub69005-32130¥24,300

69503AKEY, BLANK

main90999-00069iCV1#,SV1#¥1,550198203-198607

sub90999-00099¥1,550

main90999-00070iCV1#,SV1#¥1,550198203-198607

SUB KEY

sub90999-00100¥1,550

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iCV1#,SV1#¥160198203-198607

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iCV10,SV1#¥120198203-198406

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69511-32010iCV1#,SV1#..5D¥160198208-198607

main69561-32010iCV1#,SV1#..4D¥750198203-198607

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-32010iCV1#,SV1#¥310198203-198607

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iCV10,SV1#¥160198203-198406

69685PAD, LOCK CYLINDER

main69513-32010iCV1#,SV1#¥120198203-198607

9015940065

main90159-40065¥110

17 parts on this diagram · 2 diagrams in section
