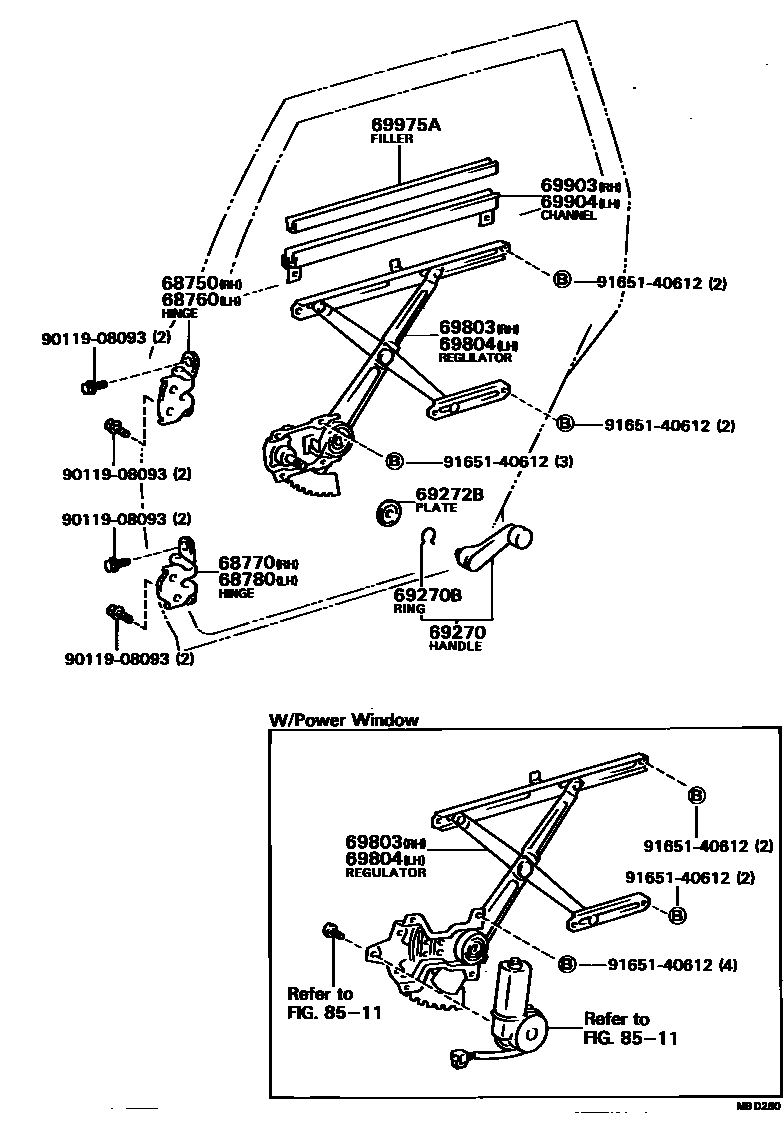

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32010iCV1#,SV1#¥2,980198203-198607

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32010iCV1#,SV1#¥2,980198203-198607

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-32010iCV1#,SV1#¥2,980198203-198607

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-32010iCV1#,SV1#¥2,980198203-198607

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-14020-03iCV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT198203-198406

GRAY,GRAY,TRIM1#

sub69260-14020¥1,600

sub69260-22030¥1,610

main69260-14020-04iCV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT198203-198406

BLUE,BLUE,TRIM8#

sub69260-14020¥1,600

sub69260-22030¥1,610

main69260-14020-16iCV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT198203-198406

BROWN,BROWN,TRIM4#

sub69260-14020¥1,600

sub69260-22030¥1,610

main69260-22020-13iCV1#,SV10,12..LT,VC,VL,VS,XS,XT198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub69260-22020¥1,830

sub69260-14030¥1,610

main69260-22020-14iCV1#,SV10..LT,VC,VL,XT198406-198607

BLUE,BLUE,TRIM8#

sub69260-22020¥1,830

sub69260-14030¥1,610

main69260-22020-35iCV1#,SV10..LT,VC,VL,XT198408-198607

BEIGE,BEIGE,TRIM4#

sub69260-22020¥1,830

sub69260-14030¥1,610

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iCV11,SV10..LT,SE,VC,VE,VL,XT;CV10,SV11,12..VF,VL,VS,XE,XS,XT¥180198203-198607

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69272-30010iCV11,SV10..LT,VC,VL,XT;CV10,SV11,12..VF,VL,VS,XE,XS,XT¥180198408-198607

main69285-22010iSV10..LT,SE,VC,VE,VL,XT;CV10,SV11,12..VF,VL,VS,XE,XS,XT¥330198203-198408

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-32010iCV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX¥7,300198203-198607

W/POWER WINDOW

main69803-32010iCV1#,SV10..VL¥7,300198501-198607

SUPER EXTRA

main69803-32010iSV10..VL¥7,300198512-198607

GRAND EXTRA

main69830-32020iCV11,SV10..LT,SE,VC,VE,VL,XT;CV10,SV11,12..VF,VL,VS,XE,XS,XT¥7,300198203-198607

W/O POWER WINDOW

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-32010iCV1#,SV10..VL¥7,300198501-198607

SUPER EXTRA

main69804-32010iCV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX¥7,300198203-198607

W/POWER WINDOW

main69804-32010iSV10..VL¥7,300198512-198607

GRAND EXTRA

main69840-32020iCV11,SV10..LT,SE,VC,VE,VL,XT;CV10,SV11,12..VF,VL,VS,XE,XS,XT¥7,300198203-198607

W/O POWER WINDOW

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-32010iCV1#,SV1#¥1,200198203-198607

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-32010iCV1#,SV1#¥1,200198203-198607

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-20020iCV1#,SV1#¥400198203-198607

8511

9011908093

main90119-08093¥90

9165140612

main91651-40612¥70

15 parts on this diagram · 1 diagram in section
