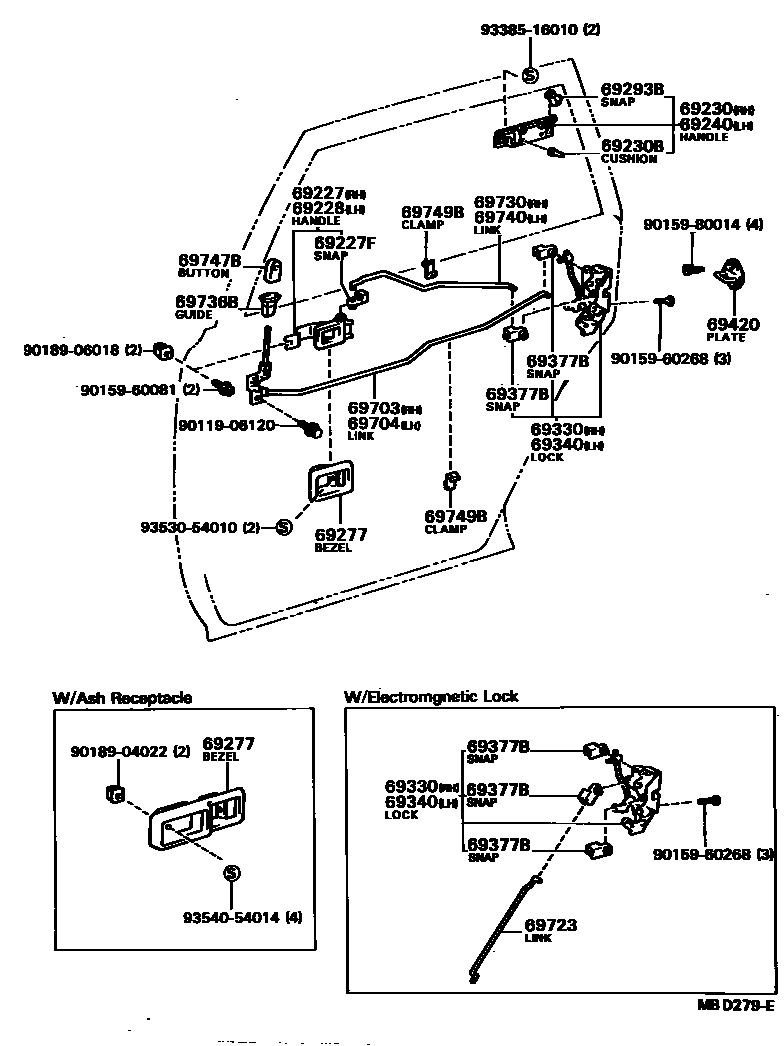

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69205-30030iCV1#,SV1#198406-198607

main69205-32010-03iCV10,SV1#198203-198406

GRAY,GRAY,TRIM1#

sub69205-32010

main69205-32010-04iCV10,SV1#198203-198406

BLUE,BLUE,TRIM8#

sub69205-32010

main69205-32010-06iCV10,SV1#198203-198406

BROWN,BROWN,TRIM4#

sub69205-32010

69227FSNAP(FOR REAR DOOR INSIDE HANDLE)

main69759-14050iCV10,SV1#198203-198406

RH

main69759-24010iCV1#,SV1#198406-198607

RH

main69759-24020iCV1#,SV1#198406-198607

LH

main69759-24070iCV10,SV1#198203-198406

LH

69228HANDLE, REAR DOOR INSIDE, LH

main69206-30020iCV1#,SV1#198406-198607

main69206-32010-03iCV10,SV1#198203-198406

GRAY,GRAY,TRIM1#

sub69206-32010

main69206-32010-04iCV10,SV1#198203-198406

BLUE,BLUE,TRIM8#

sub69206-32010

main69206-32010-06iCV10,SV1#198203-198406

BROWN,BROWN,TRIM4#

sub69206-32010

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-32010iCV1#,SV1#198203-198607

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021iCV10,SV1#198203-198312

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-32010iCV1#,SV1#198203-198607

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-32020-03iCV10,SV1#..VE,VF198301-198406

EXTRA,GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

main69277-32020-03iCV10,SV1#..VE,VF198301-198406

SALOON,GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

main69277-32020-03iSV1#..VX,ZX198203-198406

GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

main69277-32020-04iCV10,SV1#..VE,VF198301-198406

SALOON,BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-32020-04iCV1#,SV1#..VF,VR,VX,XE,ZE,ZX198406-198607

W/*PW,BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-32020-04iSV1#..VX,ZX198203-198406

BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-32020-04iCV10,SV1#..VE,VF198301-198406

EXTRA,BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-32020-06iSV1#..VX,ZX198203-198406

BROWN,BROWN,TRIM4#

sub69277-32020

sub69277-89104

main69277-32020-33iCV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

W/*PW,SHADOW GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

main69277-32020-55iCV1#,SV1#..VF,VR,VX,XE,ZE,ZX198408-198607

W/*PW,BEIGE,BEIGE,TRIM4#

sub69277-32020

sub69277-89104

main69277-32020-55iCV1#,SV10..VL198501-198607

SUPER EXTRA,BEIGE,BEIGE,TRIM4#

sub69277-32020

sub69277-89104

main69297-32010-03iCV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT198203-198406

RH,GRAY,GRAY,TRIM1#

sub69297-32010

main69297-32010-04iCV1#,SV10..LT,VC,VL,XT198406-198607

W/O *PW,RH,BLUE,BLUE,TRIM8#

sub69297-32010

main69297-32010-04iCV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT198203-198406

RH,BLUE,BLUE,TRIM8#

sub69297-32010

main69297-32010-05iCV1#,SV10..LT,VC,VL,XT198408-198607

W/O *PW,RH,BEIGE,BEIGE,TRIM4#

sub69297-32010

main69297-32010-06iCV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT198203-198406

RH,BROWN,BROWN,TRIM4#

sub69297-32010

main69297-32010-13iCV1#,SV10,12..LT,VC,VL,VS,XS,XT198406-198607

W/O *PW,RH,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub69297-32010

main69298-32010-03iCV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT198203-198406

LH,GRAY,GRAY,TRIM1#

sub69298-32010

main69298-32010-04iCV1#,SV10..LT,VC,VL,XT198406-198607

W/O *PW,LH,BLUE,BLUE,TRIM8#

sub69298-32010

main69298-32010-04iCV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT198203-198406

LH,BLUE,BLUE,TRIM8#

sub69298-32010

main69298-32010-05iCV1#,SV10..LT,VC,VL,XT198408-198607

W/O *PW,LH,BEIGE,BEIGE,TRIM4#

sub69298-32010

main69298-32010-06iCV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT198203-198406

LH,BROWN,BROWN,TRIM4#

sub69298-32010

main69298-32010-13iCV1#,SV10,12..LT,VC,VL,VS,XS,XT198406-198607

W/O *PW,LH,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub69298-32010

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-22010iCV1#,SV1#198203-198607

RH

main69293-22020iCV1#,SV1#198203-198607

LH

69330LOCK ASSY, REAR DOOR, RH

main69330-32010iCV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT198203-198406

W/O *EL

sub69330-32020

main69330-32020iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

W/*EL

main69330-32050iCV1#,SV10,12..LT,VC,VL,VS,XS,XT198406-198607

W/O *EL

sub69330-32060

main69330-32060iCV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

W/*EL

sub69330-32020

main69330-32060iCV1#,SV10..VL198501-198607

SUPER EXTRA

sub69330-32020

69340LOCK ASSY, REAR DOOR, LH

main69340-32010iCV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT198203-198406

W/O *EL

sub69340-32020

main69340-32020iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

W/*EL

main69340-32050iCV1#,SV10,12..LT,VC,XS,XT198406-198607

W/O *EL

sub69340-32060

main69340-32060iCV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

W/*EL

sub69340-32020

main69340-32060iCV1#,SV10..VL198501-198607

SUPER EXTRA

sub69340-32020

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69759-24050iCV1#,SV1#198203-198607

GREEN

main69759-24060iCV1#,SV1#198203-198607

GRAY

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-14050iCV10,SV1#198203-198406

sub69410-20070

main69410-87001iCV1#,SV1#198406-198607

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-32010iCV10,SV1#198203-198406

sub69770-32020

main69770-32020iCV1#,SV1#198406-198607

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-32010iCV10,SV1#198203-198406

sub69780-32020

main69780-32020iCV1#,SV1#198406-198607

69723LINK, REAR DOOR LOCK ACTUATOR

main69723-32010iCV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX198203-198607

main69723-32010iCV1#,SV10..VL198501-198607

SUPER EXTRA

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-32010iCV1#,SV1#198203-198607

69736BGUIDE, REAR DOOR LOCK LINK

main69736-12030iCV1#,SV1#198408-198607

main69736-22021iCV10,SV1#198406-198408

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-32010iCV1#,SV1#198203-198607

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-32010-03iCV10,SV1#198203-198406

GRAY,GRAY,TRIM1#

sub69741-32010

sub69741-90K00

main69741-32010-04iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198203-198607

BLUE,BLUE,TRIM8#

sub69741-32010

sub69741-90K00

main69741-32010-05iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198408-198607

BEIGE,BEIGE,TRIM4#

sub69741-32010

sub69741-90K00

main69741-32010-06iCV10,SV1#198203-198406

BROWN,BROWN,TRIM4#

sub69741-32010

sub69741-90K00

main69741-32010-23iCV1#,SV1#198406-198607

SHADOW GRAY,GRAY,TRIM1#

sub69741-32010

sub69741-90K00

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010iSV10198203-198207

main69749-30020iCV1#,SV1#198207-198607

9011906120

main90119-06120

9015960081

main90159-60081

9015960268

main90159-60268

9015980014

main90159-80014

9018904022

main90189-04022

9018906018

main90189-06018

9338516010

main93385-16010

9353054010

main93530-54010

9354054014

main93540-54014

29 parts on this diagram · 1 diagram in section
