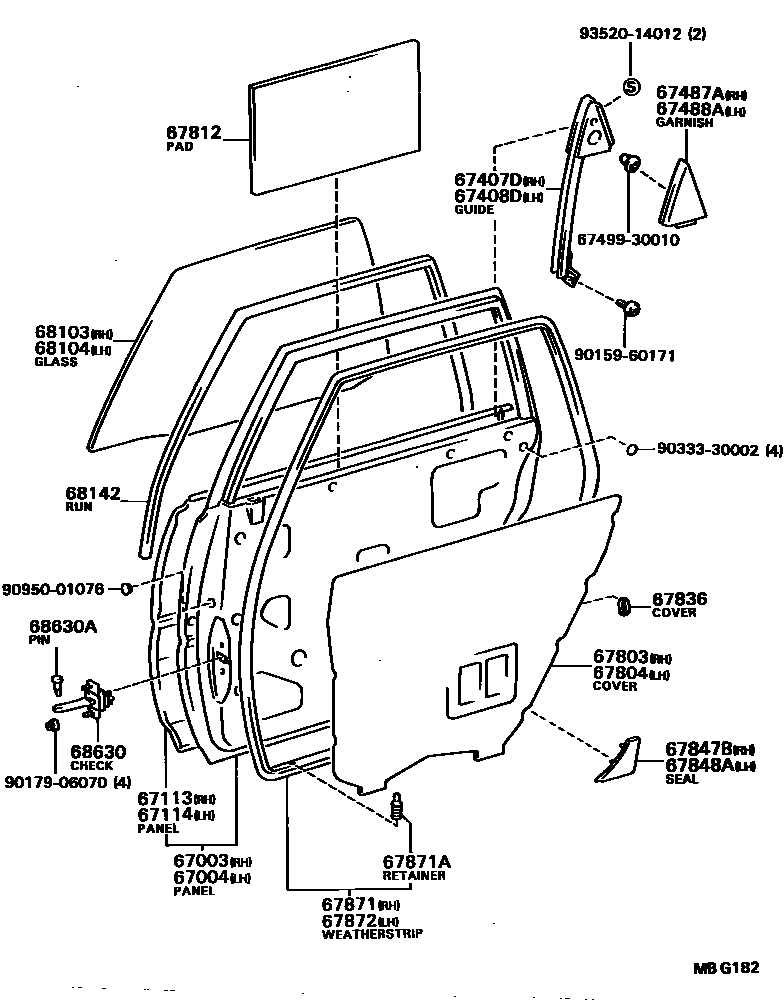

REAR DOOR PANEL & GLASS
67113PANEL, REAR DOOR, OUTER RH
sub67113-32020
67114PANEL, REAR DOOR, OUTER LH
sub67114-32020
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH
67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH
67812PAD, REAR DOOR SILENCER
sub67812-12010
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67847BSEAL, REAR DOOR VENT, RH NO.1
COLD SPEC
67848ASEAL, REAR DOOR VENT, LH NO.1
COLD SPEC
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5
SUPER EXTRA,BRONZE,*TT,T=3.5
BRONZE,*TT,T=3.5
LUMIERE,VF-2,BRONZE,*TT,T=3.5
*TT,T=3.5
SUPER EXTRA,BRONZE,*TT,T=3.5
BRONZE,*TT,T=3.5
VF-2,BRONZE,*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5
SUPER EXTRA,BRONZE,*TT,T=3.5
BRONZE,*TT,T=3.5
LUMIERE,VF-2,BRONZE,*TT,T=3.5
*TT,T=3.5
SUPER EXTRA,BRONZE,*TT,T=3.5
VF-2,BRONZE,*TT,T=3.5
BRONZE,*TT,T=3.5
68142RUN, REAR DOOR GLASS
6749930010RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67499-30010
9015960171
main90159-60171
9017906070
main90179-06070
9033330002
main90333-30002
9095001076
main90950-01076
9352014012
main93520-14012
28 parts on this diagram · 4 diagrams in section
