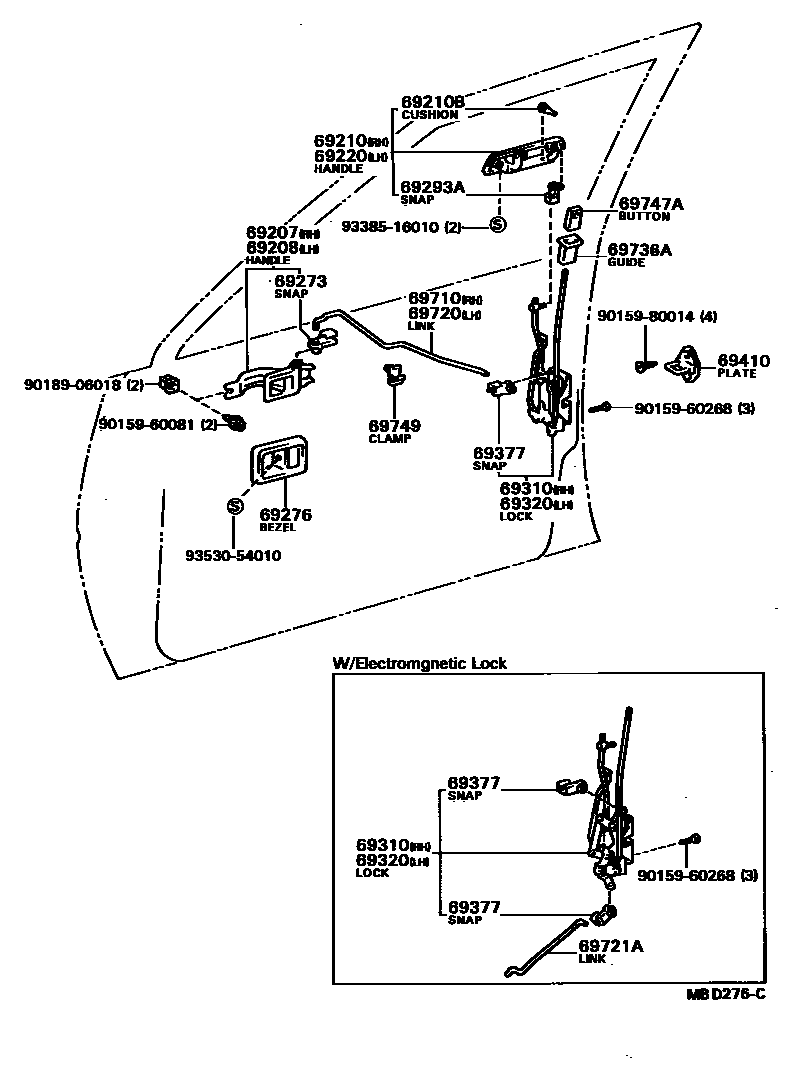

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30030iCV1#,SV1#198406-198607

main69205-32010-03iCV10,SV1#198203-198406

GRAY,GRAY,TRIM1#

sub69205-32010

main69205-32010-04iCV10,SV1#198203-198406

BLUE,BLUE,TRIM8#

sub69205-32010

main69205-32010-06iCV10,SV1#198203-198406

BROWN,BROWN,TRIM4#

sub69205-32010

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30020iCV1#,SV1#198406-198607

main69206-32010-03iCV10,SV1#198203-198406

GRAY,GRAY,TRIM1#

sub69206-32010

main69206-32010-04iCV10,SV1#198203-198406

BLUE,BLUE,TRIM8#

sub69206-32010

main69206-32010-06iCV10,SV1#198203-198406

BROWN,BROWN,TRIM4#

sub69206-32010

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-32010iCV1#,SV1#198203-198607

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iCV10,SV1#198203-198312

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-32010iCV1#,SV1#198203-198607

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-14050iCV10,SV1#198203-198406

RH

main69759-24010iCV1#,SV1#198406-198607

RH

main69759-24020iCV1#,SV1#198406-198607

LH

main69759-24070iCV10,SV1#198203-198406

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-32020-03iCV10,SV1#198203-198406

GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

main69277-32020-04iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198203-198607

BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-32020-06iCV10,SV1#198203-198406

BROWN,BROWN,TRIM4#

sub69277-32020

sub69277-89104

main69277-32020-33iCV1#,SV1#198406-198607

SHADOW GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

main69277-32020-55iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198408-198607

BEIGE,BEIGE,TRIM4#

sub69277-32020

sub69277-89104

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-22010iCV1#,SV1#198203-198607

RH

main69293-22020iCV1#,SV1#198203-198607

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-32010iCV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT198203-198406

W/O *EL

main69310-32020iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

W/*EL

sub69310-32080

main69310-32070iCV1#,SV10,12..LT,VC,VL,VS,XS,XT198406-198607

W/O *EL

sub69310-32010

main69310-32080iCV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

W/*EL

main69310-32080iCV1#,SV10..VL198501-198607

SUPER EXTRA

69320LOCK ASSY, FRONT DOOR, LH

main69320-32010iCV10,SV1#..LT,SE,VC,VE,VF,VL,XE,XT198203-198406

W/O *EL

main69320-32020iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198607

W/*EL

main69320-32020iCV1#,SV10..VL198501-198607

SUPER EXTRA

main69320-32060iCV1#,SV10,12..LT,VC,VL,VS,XS,XT198406-198607

W/O *EL

sub69320-32010

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-24050iCV1#,SV1#198203-198607

GREEN

main69759-24060iCV1#,SV1#198203-198607

GRAY

main69759-32010iCV10,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

ORANGE

main69759-32010iCV1#,SV10..VL198501-198607

SUPER EXTRA,ORANGE

main69759-32020iCV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

VIOLET

main69759-32020iCV1#,SV10..VL198501-198607

SUPER EXTRA,VIOLET

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-14050iCV10,SV1#198203-198406

sub69410-20070

main69410-87001iCV1#,SV1#198406-198607

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-32010iCV1#,SV1#198203-198607

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-32010iCV1#,SV1#198203-198607

69721ALINK, FRONT DOOR LOCK ACTUATOR

main69721-32010iCV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX198203-198607

main69721-32010iCV1#,SV10..VL198501-198607

SUPER EXTRA

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030iCV1#,SV1#198408-198607

main69736-22021iCV10,SV1#198203-198408

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-32010-03iCV10,SV1#198203-198406

GRAY,GRAY,TRIM1#

sub69741-32010

sub69741-90K00

main69741-32010-04iCV10,SV1#198203-198607

BLUE,BLUE,TRIM8#

sub69741-32010

sub69741-90K00

main69741-32010-05iCV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX198408-198607

BEIGE,BEIGE,TRIM4#

sub69741-32010

sub69741-90K00

main69741-32010-06iCV10,SV1#198203-198406

BROWN,BROWN,TRIM4#

sub69741-32010

sub69741-90K00

main69741-32010-23iCV1#,SV1#198406-198607

SHADOW GRAY,GRAY,TRIM1#

sub69741-32010

sub69741-90K00

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iSV10198203-198207

main69749-30020iCV1#,SV1#198207-198607

9015960081

main90159-60081

9015960268

main90159-60268

9015980014

main90159-80014

9018906018

main90189-06018

9338516010

main93385-16010

9353054010

main93530-54010

24 parts on this diagram · 1 diagram in section
