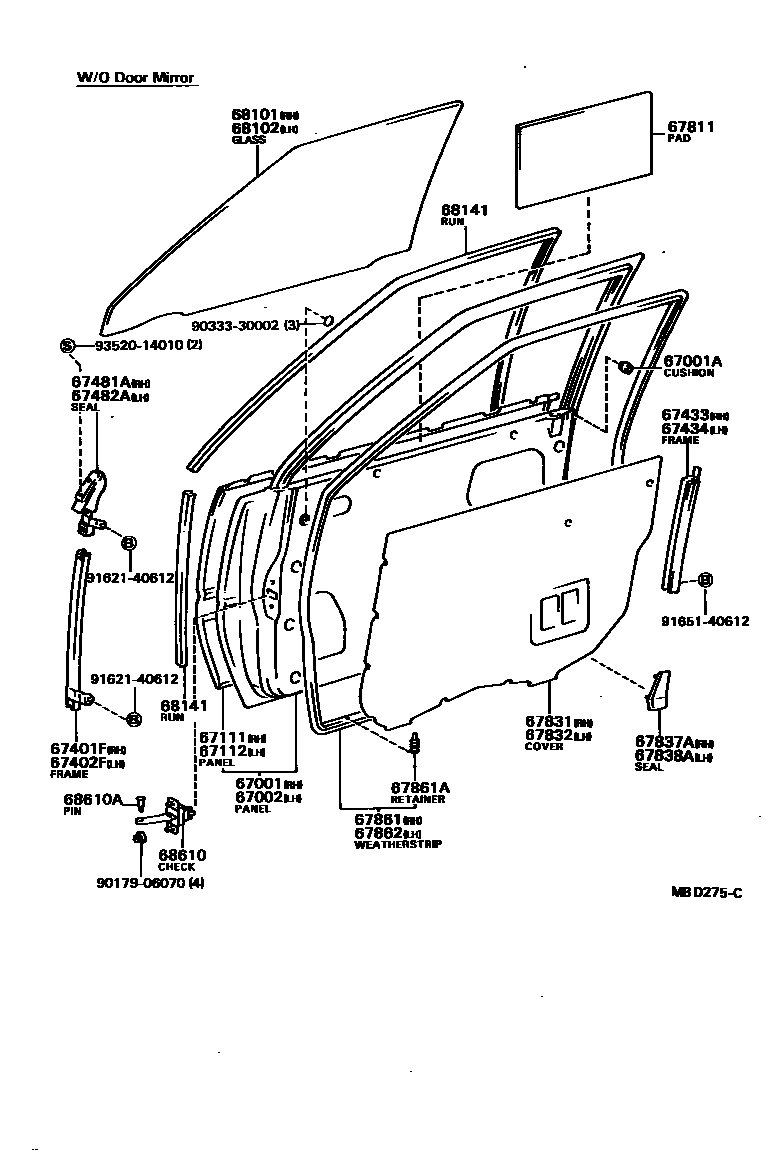

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-32010iSV1#..4D..(LT,SE,VC,VE,VF,VL,XE,XT)198203-198306

W/O POWER WINDOW

sub67001-32030

main67001-32010iCV1#,SV1#..4D198306-198607

sub67001-32030

main67001-32020iSV1#..4D..(SE,VE,VF,VX,XE,ZX)198203-198306

W/POWER WINDOW

sub67001-32010

main67001-32060iCV1#,SV1#..5D198208-198607

sub67001-32080

67001ACUSHION, FRONT DOOR PANEL

main90541-09006iCV1#,SV1#198203-198607

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-32010iSV1#..4D..(LT,SE,VC,VE,VF,VL,XE,XT)198203-198306

W/O POWER WINDOW

sub67002-32030

main67002-32010iCV1#,SV1#..4D198306-198607

sub67002-32030

main67002-32020iSV1#..4D..(SE,VE,VF,VX,XE,ZX)198203-198306

W/POWER WINDOW

sub67002-32010

main67002-32060iCV1#,SV1#..5D198208-198607

sub67002-32080

67111PANEL, FRONT DOOR, OUTER RH

main67111-32010iCV1#,SV1#198203-198607

sub67111-32020

67112PANEL, FRONT DOOR, OUTER LH

main67112-32010iCV1#,SV1#198203-198607

sub67112-32020

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-32010iCV10,SV1#198203-198406

W/O DOOR MIRROR

main67401-32041iCV10,SV1#..4D..(SE,VE,VF,VL,VX,XE,XT,ZX)198305-198406

W/DOOR MIRROR

sub67401-32021

main67401-32051iCV10,SV1#..5D198305-198406

W/DOOR MIRROR

sub67401-32031

main67401-32060iCV1#,SV1#198406-198607

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-32010iCV10,SV1#198203-198406

W/O DOOR MIRROR

main67402-32041iCV10,SV1#..4D..(SE,VE,VF,VL,VX,XE,XT,ZX)198305-198406

W/DOOR MIRROR

sub67402-32021

main67402-32051iCV10,SV1#..5D198305-198406

W/DOOR MIRROR

sub67402-32031

main67402-32060iCV1#,SV1#198406-198607

67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH

main67433-32010iCV1#,SV1#198203-198607

67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH

main67434-32010iCV1#,SV1#198203-198607

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-32010iCV10,SV1#..4D198203-198406

W/O DOOR MIRROR

main67481-32020iCV10,SV1#..5D198208-198406

W/O DOOR MIRROR

main67481-32040iCV1#,SV1#..4D198406-198607

W/O DOOR MIRROR

main67481-32050iCV1#,SV1#..5D198406-198607

W/O DOOR MIRROR

main67481-32060iCV1#,SV1#..4D..(VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)198406-198607

W/DOOR MIRROR

main67481-32070iCV1#,SV1#..5D198406-198607

W/DOOR MIRROR

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-32010iCV10,SV1#..4D198203-198406

W/O DOOR MIRROR

main67482-32020iCV10,SV1#..5D198208-198406

W/O DOOR MIRROR

main67482-32030iCV1#,SV1#..4D198406-198607

W/O DOOR MIRROR

main67482-32040iCV1#,SV1#..5D198406-198607

W/O DOOR MIRROR

main67482-32050iCV1#,SV1#..4D..(VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX)198406-198607

W/DOOR MIRROR

main67482-32060iCV1#,SV1#..5D198406-198607

W/DOOR MIRROR

67811PAD, FRONT DOOR SILENCER

main67811-32010iCV1#,SV1#198203-198607

sub67812-12010

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-32010iSV1#198203-198306

sub67831-32020

main67831-32020iCV1#,SV1#198306-198607

main67831-32030iCV1#,SV1#198305-198607

COLD SPEC

sub67831-32020

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-32030iCV1#,SV1#198401-198607

COLD SPEC

sub67831-32020

main67832-32010iSV1#198203-198306

sub67832-32020

main67832-32020iCV1#,SV1#198306-198607

main67832-32030iCV10,SV1#198305-198401

COLD SPEC

sub67831-32030

67837ASEAL, FRONT DOOR VENT, RH

main67837-32010iCV1#,SV1#198305-198607

COLD SPEC

67838ASEAL, FRONT DOOR VENT, LH

main67838-32010iCV1#,SV1#198305-198607

COLD SPEC

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-32010iCV10,SV1#..4D198203-198406

sub67861-32050

main67861-32030iCV10,SV1#..5D198208-198406

sub67861-32070

main67861-32050iCV1#,SV1#..4D198406-198607

main67861-32070iCV1#,SV1#..5D198406-198607

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iCV1#,SV1#198203-198607

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-32010iCV10,SV1#..4D198203-198406

sub67862-32070

main67862-32030iCV10,SV1#..5D198208-198406

sub67862-32070

main67862-32050iCV1#,SV1#..4D198406-198607

main67862-32070iCV1#,SV1#..5D198406-198607

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-32010iCV10,SV1#..4D198203-198406

W/O *DM,*TT,T=4.0

main68111-32020iSV1#..4D..(VX,ZX)198203-198406

W/O *DM,BRONZE,*TT,T=4.0

main68111-32030iCV10,SV1#..4D..(SE,VE,VF,VL,VX,XE,XT,ZX)198305-198406

W/*DM,*TT,T=4.0

main68111-32030iCV1#,SV1#..4D198406-198607

*TT,T=4.0

main68111-32040iSV11,12..4D..(VX,ZX)198406-198607

BRONZE,*TT,T=4.0

main68111-32040iSV1#..4D..(VX,ZX)198305-198406

W/*DM,BRONZE,*TT,T=4.0

main68111-32040iCV1#,SV10..4D..VL198501-198607

SUPER EXTRA,BRONZE,*TT,T=4.0

main68111-32040iCV11,SV10..4D..(VF,XE)198505-198607

LUMIERE,VF-2,BRONZE,*TT,T=4.0

main68111-32050iCV10,SV1#..5D198208-198406

W/O *DM,*TT,T=4.0

main68111-32060iSV1#..5D..VX198208-198406

W/O *DM,BRONZE,*TT,T=4.0

main68111-32070iCV10,SV1#..5D198305-198406

W/*DM,*TT,T=4.0

main68111-32070iCV1#,SV1#..5D198406-198607

*TT,T=4.0

main68111-32080iSV1#..5D..VX198305-198406

W/*DM,BRONZE,*TT,T=4.0

main68111-32080iCV1#,SV10..5D..VL198501-198607

SUPER EXTRA,BRONZE,*TT,T=4.0

main68111-32080iCV11,SV10..5D..VF198505-198607

VF-2,BRONZE,*TT,T=4.0

main68111-32080iSV11,12..5D..VX198406-198607

BRONZE,*TT,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-32010iCV10,SV1#..4D198203-198406

W/O *DM,*TT,T=4.0

main68112-32020iSV1#..4D..(VX,ZX)198203-198406

W/O *DM,BRONZE,*TT,T=4.0

main68112-32030iCV1#,SV1#..4D198406-198607

*TT,T=4.0

main68112-32030iCV10,SV1#..4D..(SE,VE,VF,VL,VX,XE,XT,ZX)198305-198406

W/*DM,*TT,T=4.0

main68112-32040iSV1#..4D..(VX,ZX)198305-198406

W/*DM,BRONZE,*TT,T=4.0

main68112-32040iSV1#..4D..(VR,VX,ZE,ZX)198406-198607

BRONZE,*TT,T=4.0

main68112-32040iCV11,SV10..4D..(VF,XE)198505-198607

LUMIERE,VF-2,BRONZE,*TT,T=4.0

main68112-32040iCV1#,SV10..4D..VL198501-198607

SUPER EXTRA,BRONZE,*TT,T=4.0

main68112-32050iCV10,SV1#..5D198208-198406

W/O *DM,*TT,T=4.0

main68112-32060iSV1#..5D..VX198208-198406

W/O *DM,BRONZE,*TT,T=4.0

main68112-32070iCV10,SV1#..5D198305-198406

W/*DM,*TT,T=4.0

main68112-32070iCV1#,SV1#..5D198406-198607

*TT,T=4.0

main68112-32080iCV1#,SV10..5D..VL198501-198607

SUPER EXTRA,BRONZE,*TT,T=4.0

main68112-32080iSV1#..5D..VX198305-198406

W/*DM,BRONZE,*TT,T=4.0

main68112-32080iSV1#..5D..(VR,VX)198406-198607

BRONZE,*TT,T=4.0

main68112-32080iCV11,SV10..5D..VF198505-198607

VF-2,BRONZE,*TT,T=4.0

68141RUN, FRONT DOOR GLASS

main68141-32010iCV10,SV1#..4D198203-198406

W/O DOOR MIRROR,LONG

main68141-32020iCV10,SV1#..4D..(SE,VE,VF,VL,VX,XE,XT,ZX)198305-198406

W/DOOR MIRROR,LONG

main68141-32030iCV10,SV1#..5D198208-198406

W/O DOOR MIRROR,LONG

main68141-32040iCV10,SV1#..5D198305-198406

W/DOOR MIRROR,LONG

main68141-32050iCV1#,SV1#..4D198406-198607

LONG

main68141-32060iCV1#,SV1#..5D198406-198607

LONG

main68143-14020iCV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX198305-198309

W/DOOR MIRROR,SHORT

main68143-20050iCV10,SV1#198203-198406

W/O DOOR MIRROR,SHORT

sub68143-91C02

main68143-32020iCV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX198309-198406

W/DOOR MIRROR,SHORT

sub68143-32030

main68143-32030iCV1#,SV1#198406-198607

SHORT

68610CHECK ASSY, FRONT DOOR

main68610-32010iCV10,SV1#198203-198406

sub68610-12030

main68610-32030iCV1#,SV1#198406-198607

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iCV10,SV1#198406-198507

sub68617-90A00

main68617-22010iCV10,SV1#198203-198406

sub68617-12010

main68617-90A00iCV1#,SV1#198507-198607

9017906070

main90179-06070

9033330002

main90333-30002

9162140612

main91621-40612

9165140612

main91651-40612

9352014010

main93520-14010

29 parts on this diagram · 5 diagrams in section
