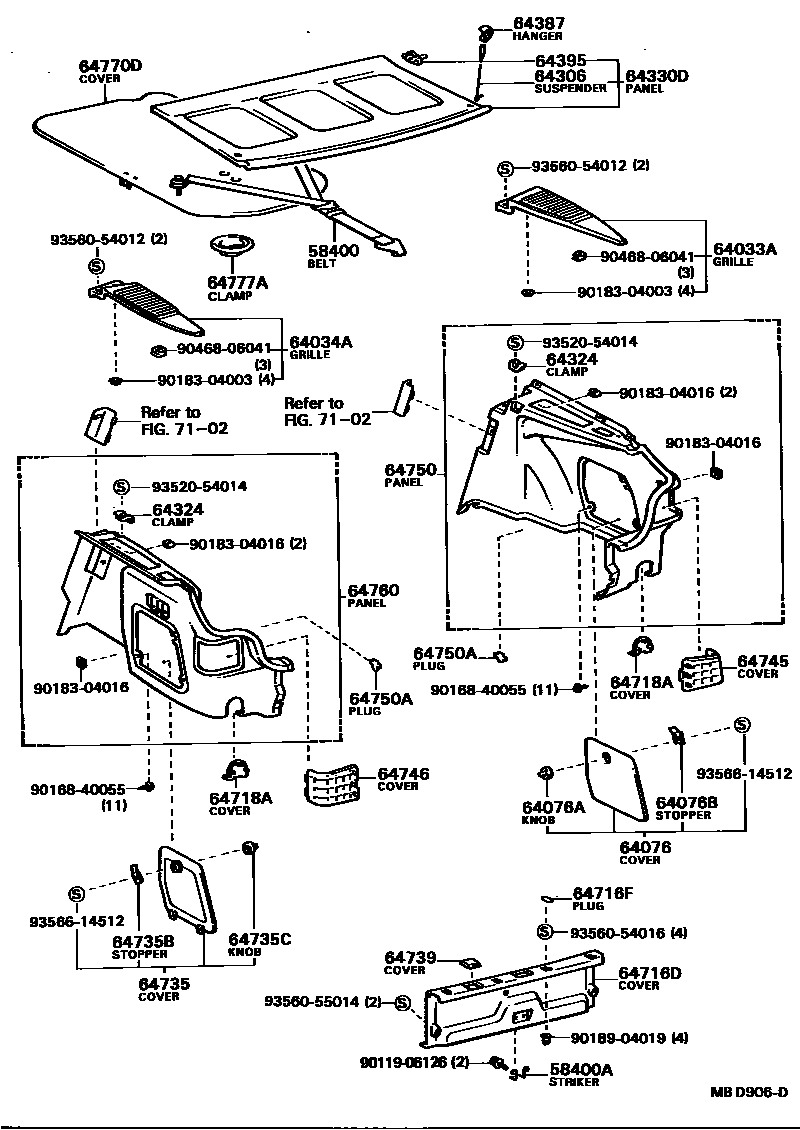

DECK BOARD & DECK TRIM COVER

58400BELT ASSY, LUGGAGE HOLD, NO.1

main58400-14041-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub58400-14041

main58400-14041-14iCV10,SV1#..5D198208-198406

BLUE,BLUE,TRIM8#

sub58400-14041

main58400-14041-46iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub58400-14041

58400ASTRIKER, LUGGAGE HOLD BELT

main58461-14040iCV10,SV1#..5D198208-198607

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-32020-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub64033-32020

main64033-32020-04iCV10,SV1#..5D198208-198607

BLUE,BLUE,TRIM8#

sub64033-32020

main64033-32020-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64033-32020

main64033-32020-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub64033-32020

main64033-32020-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64033-32020

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-32010-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub64034-32010

main64034-32010-04iCV10,SV1#..5D198208-198607

BLUE,BLUE,TRIM8#

sub64034-32010

main64034-32010-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64034-32010

main64034-32010-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub64034-32010

main64034-32010-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64034-32010

64076COVER, DECK TRIM SIDE JACK

main64076-32010-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub64076-32010

main64076-32010-04iCV10,SV1#..5D198208-198607

BLUE,BLUE,TRIM8#

sub64076-32010

main64076-32010-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64076-32010

main64076-32010-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub64076-32010

main64076-32010-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64076-32010

64076AKNOB, DECK TRIM SIDE JACK COVER

main64982-16020-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64982-16020

main64982-16020-13iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub64982-16020

main64982-16020-14iCV1#,SV1#..5D..(VF,VL,VR,VX)198208-198607

BLUE,BLUE,TRIM8#

sub64982-16020

main64982-16020-23iCV1#,SV1#..5D198406-198607

SHADOW GRAY,GRAY,TRIM1#

sub64982-16020

main64982-16020-36iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub64982-16020

64076BSTOPPER, DECK TRIM SIDE JACK COVER

main64981-16021iCV1#,SV1#..5D198208-198607

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-16010iSV1#..5D198208-198210

sub64306-12030

main64306-32010iCV1#,SV1#..5D198210-198607

sub64306-12030

64324CLAMP, PACKAGE TRAY TRIM, NO.2

main64324-20010-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub64324-20010

main64324-20010-04iCV1#,SV1#..5D..(VF,VL,VR,VX)198208-198607

BLUE,BLUE,TRIM8#

sub64324-20010

main64324-20010-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64324-20010

main64324-20010-15iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64324-20010

main64324-20010-16iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub64324-20010

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-32060-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub64330-32060

main64330-32060-04iCV10,SV1#..5D198208-198607

BLUE,BLUE,TRIM8#

sub64330-32060

main64330-32060-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64330-32060

main64330-32060-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub64330-32060

main64330-32060-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64330-32060

64387HANGER, PACKAGE TRAY TRIM

main64381-10010iCV1#,SV1#..5D198208-198607

64395PIN, PACKAGE TRAY TRIM HINGE

main64395-12010iCV1#,SV1#..5D198208-198607

RH

main64396-12010iCV1#,SV1#..5D198208-198607

LH

64716DCOVER, DECK TRIM, REAR

main64716-32020-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub64716-32020

main64716-32020-04iCV1#,SV1#..5D..(VF,VL,VR,VX)198208-198607

BLUE,BLUE,TRIM8#

sub64716-32020

main64716-32020-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64716-32020

main64716-32020-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub64716-32020

main64716-32020-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64716-32020

64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)

main90950-01378-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub90950-01378

main90950-01378-04iCV10,SV1#..5D198208-198607

BLUE,BLUE,TRIM8#

sub90950-01378

main90950-01378-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub90950-01378

main90950-01378-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub90950-01378

main90950-01378-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub90950-01378

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-32010-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub64718-32010

main64718-32010-04iCV1#,SV1#..5D..(VF,VL,VR,VX)198208-198607

BLUE,BLUE,TRIM8#

sub64718-32010

main64718-32010-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64718-32010

main64718-32010-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub64718-32010

main64718-32010-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64718-32010

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64702-32010-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub64702-32010

main64702-32010-04iCV1#,SV1#..5D..(VF,VL,VR,VX)198208-198607

BLUE,BLUE,TRIM8#

sub64702-32010

main64702-32010-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64702-32010

main64702-32010-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub64702-32010

main64702-32010-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64702-32010

64735BSTOPPER, DECK TRIM SIDE SERVICE HOLE COVER

main64981-16021iCV1#,SV1#..5D198208-198607

64735CKNOB, DECK TRIM SIDE SERVICE HOLE COVER

main64982-16020-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64982-16020

main64982-16020-13iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub64982-16020

main64982-16020-14iCV10,SV1#..5D198208-198607

BLUE,BLUE,TRIM8#

sub64982-16020

main64982-16020-23iCV1#,SV1#..5D198406-198607

SHADOW GRAY,GRAY,TRIM1#

sub64982-16020

main64982-16020-36iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub64982-16020

64739COVER, DECK TRIM SIDE WASHER

main64739-32010-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub64739-32010

main64739-32010-04iCV10,SV1#..5D198208-198607

BLUE,BLUE,TRIM8#

sub64739-32010

main64739-32010-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64739-32010

main64739-32010-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub64739-32010

main64739-32010-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64739-32010

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-32010-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

main64745-32010-04iCV1#,SV1#..5D..(VF,VL,VR,VX)198208-198607

BLUE,BLUE,TRIM8#

main64745-32010-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

main64745-32010-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

main64745-32010-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-32010-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

main64746-32010-04iCV1#,SV1#..5D..(VF,VL,VR,VX)198208-198607

BLUE,BLUE,TRIM8#

main64746-32010-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

main64746-32010-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

main64746-32010-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

64750PANEL ASSY, DECK SIDE TRIM, RH

main64730-32010-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub64730-32010

main64730-32010-04iCV1#,SV1#..5D..(VF,VL,VR,VX)198208-198607

BLUE,BLUE,TRIM8#

sub64730-32010

main64730-32010-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64730-32010

main64730-32010-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub64730-32010

main64730-32010-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64730-32010

64750APLUG, HOLE(FOR DECK SIDE TRIM PANEL)

main90950-01245-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub90950-01245

main90950-01245-04iCV10,SV1#..5D198208-198607

BLUE,BLUE,TRIM8#

sub90950-01245

main90950-01245-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,GRAY,TRIM1#

sub90950-01245

main90950-01245-15iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub90950-01245

main90950-01245-16iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub90950-01245

64760PANEL ASSY, DECK SIDE TRIM, LH

main64740-32010-03iCV10,SV1#..5D198208-198406

GRAY,GRAY,TRIM1#

sub64740-32010

main64740-32010-04iCV10,SV1#..5D198208-198607

BLUE,BLUE,TRIM8#

sub64740-32010

main64740-32010-05iCV1#,SV1#..5D..(VF,VL,VR,VX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64740-32010

main64740-32010-06iCV10,SV1#..5D198208-198406

BROWN,BROWN,TRIM4#

sub64740-32010

main64740-32010-13iCV1#,SV1#..5D198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64740-32010

64770DCOVER ASSY, SPARE WHEEL

main64770-32020iCV1#,SV1#..5D198208-198607

64777ACLAMP, SPARE WHEEL COVER

main64777-32020iCV1#,SV1#..5D198208-198607

sub64777-32030

7102

9011906126

main90119-06126

9016840055

main90168-40055

9018304003

main90183-04003

9018304016

main90183-04016

9018904019

main90189-04019

9046806041

main90468-06041

9352054014

main93520-54014

9356054012

main93560-54012

9356054016

main93560-54016

9356055014

main93560-55014

9356614512

main93566-14512

38 parts on this diagram · 1 diagram in section
