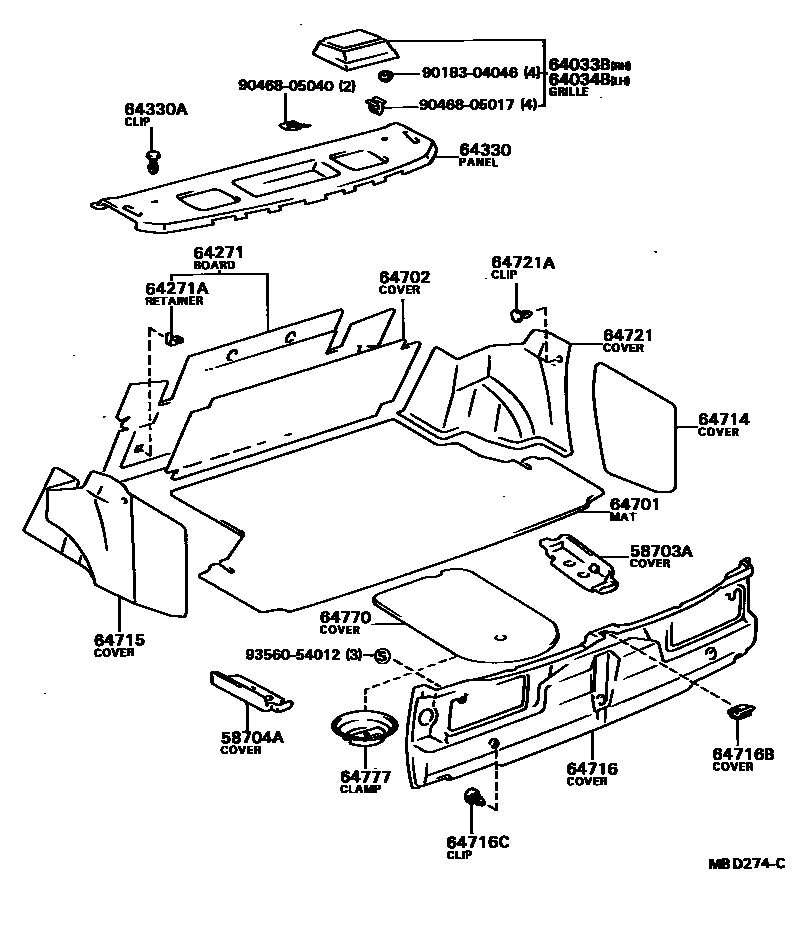

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58773-32010iCV1#,SV1#..4D198203-198607

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58774-32010iCV1#,SV1#..4D198203-198607

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-32010-03iCV10,SV1#..4D..(SE,VE,VF,VX,XE,ZX)198203-198406

DARK GRAY,GRAY,TRIM1#

sub64033-32010

main64033-32010-04iSV10..SE,VE,VX,ZX198203-198208

BLUE,BLUE,TRIM8#

sub64033-32010

main64033-32010-05iSV1#..4D..(VR,VX,ZE,ZX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64033-32010

main64033-32010-06iSV10..SE,VE,VX,ZX198203-198208

DARK BROWN,BROWN,TRIM4#

sub64033-32010

main64033-32010-13iSV1#..4D..(VR,VX,ZE,ZX)198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64033-32010

main64033-32010-14iCV10,SV1#..4D..(SE,VE,VF,VX,XE,ZX)198208-198607

BLUE,BLUE,TRIM8#

sub64033-32010

main64033-32010-16iCV10,SV1#..4D..(SE,VE,VF,VX,XE,ZX)198208-198406

DARK BROWN,BROWN,TRIM4#

sub64033-32010

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-32010-03iCV10,SV1#..4D..(SE,VE,VF,VX,XE,ZX)198203-198406

DARK GRAY,GRAY,TRIM1#

sub64033-32010

main64033-32010-04iSV10..SE,VE,VX,ZX198203-198208

BLUE,BLUE,TRIM8#

sub64033-32010

main64033-32010-05iSV1#..4D..(VR,VX,ZE,ZX)198408-198607

BEIGE,BEIGE,TRIM4#

sub64033-32010

main64033-32010-06iSV10..SE,VE,VX,ZX198203-198208

DARK BROWN,BROWN,TRIM4#

sub64033-32010

main64033-32010-13iSV1#..4D..(VR,VX,ZE,ZX)198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64033-32010

main64033-32010-14iSV1#..4D..(VR,VX,ZE,ZX)198208-198607

BLUE,BLUE,TRIM8#

sub64033-32010

main64033-32010-16iCV10,SV1#..4D..(SE,VE,VF,VX,XE,ZX)198208-198406

DARK BROWN,BROWN,TRIM4#

sub64033-32010

64271BOARD, ROOM PARTITION, NO.1

main64270-32010iSV1#..4D..(VX,ZX)198203-198406

main64271-32010iCV10,SV1#..4D..(LT,SE,VC,VE,VF,VL,XE,XT)198203-198607

64271ARETAINER, ROOM PARTITION BOARD

main62598-14020iSV1#..4D..(VX,ZX)198203-198406

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-32010-03iCV10,SV1#..4D..(LT,SE,VC,VE,VF,VL,XE,XT)198203-198406

W/O SPEAKER,DARK GRAY,GRAY,TRIM1#

sub64330-32010

main64330-32010-04iCV10,SV1#..4D..(LT,SE,VC,VE,VF,VL,XE,XT)198203-198406

W/O SPEAKER,BLUE,BLUE,TRIM8#

sub64330-32010

main64330-32010-04iCV1#,SV10,11..4D..(LT,VC,VF,VL,XE,XT)198406-198607

BLUE,BLUE,TRIM8#

sub64330-32010

main64330-32010-05iCV1#,SV10,11..4D..(LT,VC,VF,VL,XE,XT)198408-198607

BEIGE,BEIGE,TRIM4#

sub64330-32010

main64330-32010-06iCV10,SV1#..4D..(LT,SE,VC,VE,VF,VL,XE,XT)198203-198406

W/O SPEAKER,DARK BROWN,BROWN,TRIM4#

sub64330-32010

main64330-32010-13iCV1#,SV1#..4D..(LT,VC,VF,VL,VS,XE,XS,XT)198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64330-32010

main64330-32020-03iSV1#..4D..(SE,VE,VF,XE)198203-198303

W/SPEAKER,DARK GRAY,GRAY,TRIM1#

sub64330-32070

main64330-32020-04iSV1#..4D..(SE,VE,VF,XE)198203-198303

W/SPEAKER,BLUE,BLUE,TRIM8#

sub64330-32070

main64330-32020-06iSV1#..4D..(SE,VE,VF,XE)198203-198303

W/SPEAKER,DARK BROWN,BROWN,TRIM4#

sub64330-32070

main64330-32030-03iSV1#..4D..(VX,ZX)198203-198406

DARK GRAY,GRAY,TRIM1#

sub64330-32030

sub64330-32040

main64330-32030-04iSV1#..4D..(VR,VX,ZE,ZX)198406-198607

W/RR 3POINT BELT,BLUE,BLUE,TRIM8#

sub64330-32030

sub64330-32040

main64330-32030-04iSV1#..4D..(VX,ZX)198203-198406

BLUE,BLUE,TRIM8#

sub64330-32030

sub64330-32040

main64330-32030-05iSV1#..4D..(VR,VX,ZE,ZX)198408-198607

W/RR 3POINT BELT,BEIGE,BEIGE,TRIM4#

sub64330-32030

sub64330-32040

main64330-32030-06iSV1#..4D..(VX,ZX)198203-198406

DARK BROWN,BROWN,TRIM4#

sub64330-32030

sub64330-32040

main64330-32030-13iSV1#..4D..(VR,VX,ZE,ZX)198406-198607

W/RR 3POINT BELT,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64330-32030

sub64330-32040

main64330-32050-03iCV10,SV1#..4D..(SE,VE,VF,XE)198303-198406

W/SPEAKER,DARK GRAY,GRAY,TRIM1#

sub64330-32050

sub64330-32070

main64330-32050-04iSV1#..4D..(VR,VX,ZE,ZX)198406-198607

W/O RR 3POINT BELT,BLUE,BLUE,TRIM8#

sub64330-32050

sub64330-32070

main64330-32050-04iCV10,SV1#..4D..(SE,VE,VF,XE)198303-198406

W/SPEAKER,BLUE,BLUE,TRIM8#

sub64330-32050

sub64330-32070

main64330-32050-05iSV1#..4D..(VR,VX,ZE,ZX)198408-198607

W/O RR 3POINT BELT,BEIGE,BEIGE,TRIM4#

sub64330-32050

sub64330-32070

main64330-32050-06iCV10,SV1#..4D..(SE,VE,VF,XE)198303-198406

W/SPEAKER,DARK BROWN,BROWN,TRIM4#

sub64330-32050

sub64330-32070

main64330-32050-13iSV1#..4D..(VR,VX,ZE,ZX)198406-198607

W/O RR 3POINT BELT,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub64330-32050

sub64330-32070

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-09012-01iCV10,SV1#..4D198203-198406

BLACK,BLACK

main90467-09047-01iCV1#,SV1#..4D198406-198607

BLACK,BLACK

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-32010iCV1#,SV1#..4D..(LT,SE,VC,VE,VF,VL,VS,XE,XS,XT)198203-198607

main64711-32020iSV1#..4D..(VR,VX,ZE,ZX)198203-198607

64702COVER SUB-ASSY, LUGGAGE COMPARTMENT, FRONT

main64717-32010iCV10,SV1#..4D198203-198607

sub64717-32020

main64717-32020iSV1#..4D..(VR,VX,ZE,ZX)198406-198607

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-32010iCV10,SV1#..4D..(LT,VC,VF,VL,VS,XE,XS,XT)198203-198407

main64714-32011iCV1#,SV1#..4D..(LT,VC,VF,VL,VS,XE,XS,XT)198407-198607

main64714-32021iSV1#..4D..(VR,VX,ZE,ZX)198406-198607

64715COVER, LUGGAGE COMPARTMENT, LH

main64072-32020iCV10,SV1#..4D..(LT,VC,VF,VL,VS,XE,XS,XT)198203-198407

main64072-32021iCV1#,SV1#..4D..(LT,VC,VF,VL,VS,XE,XS,XT)198407-198607

main64072-32041iSV1#..4D..(VR,VX,ZE,ZX)198406-198407

main64072-32042iSV1#..4D..(VR,VX,ZE,ZX)198407-198607

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-32010iCV10,SV1#..4D..(SE,VE,VF,VX,XE,ZX)198203-198406

sub64716-32030

main64716-32030iSV1#..4D..(VR,VX,ZE,ZX)198406-198607

64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-14030iCV1#,SV1#..4D..(LT,VC,VF,VL,VS,XE,XS,XT)198203-198607

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05014-03iSV10..4D..(SE,VE,VR,VX,ZE,ZX);CV10,SV11,12..4D..(VF,VX,XE,ZX)198203-198607

GRAY

sub90467-05014

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-32010iCV10,SV1#..4D198203-198407

sub64721-32011

main64721-32011iCV1#,SV1#..4D..(LT,VC,VF,VL,VS,XE,XS,XT)198407-198607

main64721-32020iSV1#..4D..(VR,VX,ZE,ZX)198406-198407

sub64721-32021

main64721-32021iSV1#..4D..(VR,VX,ZE,ZX)198407-198607

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07158-13iCV1#,SV1#..4D198203-198607

GRAY

sub90467-07158

64770COVER ASSY, SPARE WHEEL

main64770-32010iCV1#,SV1#..4D198203-198607

64777CLAMP, SPARE WHEEL COVER

main64777-32020iCV1#,SV1#..4D198203-198607

sub64777-32030

9018304046

main90183-04046

9046805017

main90468-05017

9046805040

main90468-05040

9356054012

main93560-54012

23 parts on this diagram · 1 diagram in section
