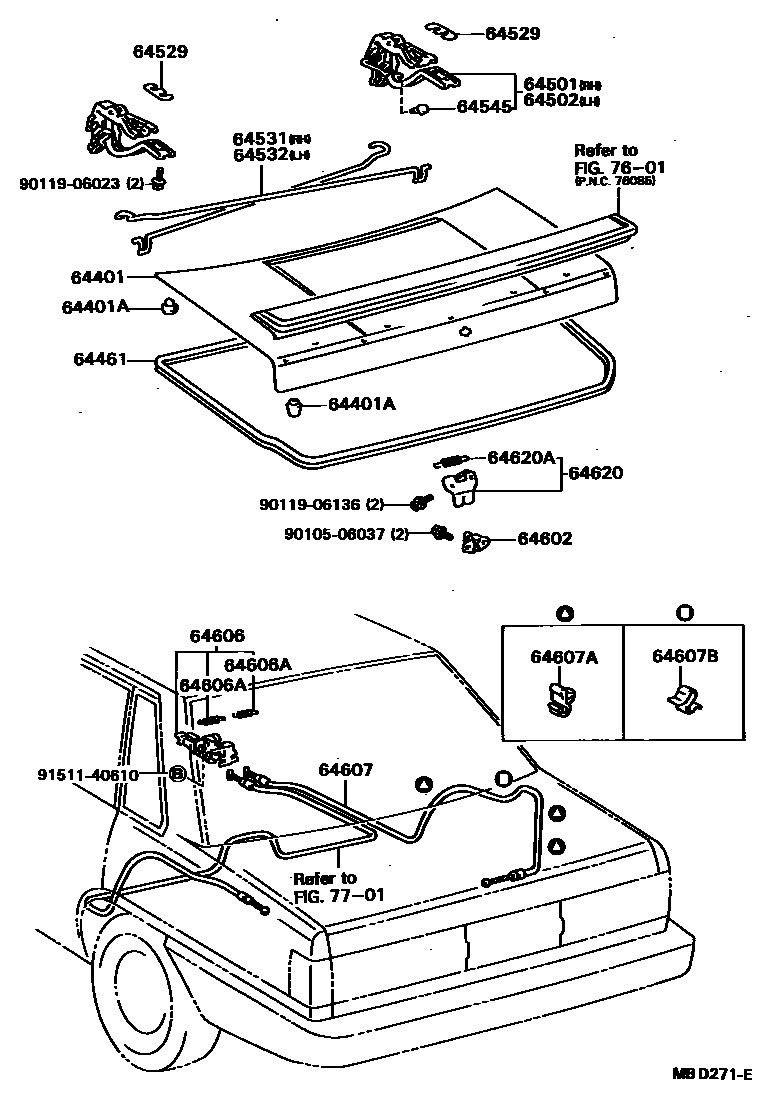

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-32010iCV1#,SV1#..4D..(LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX)198406-198607

W/O SPOILER

main64401-32010iCV10,SV1#..4D198203-198406

main64401-32070iSV1#..4D..(VF,VR,VS,VX,XE,XS,ZE,ZX)198406-198607

W/SPOILER

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076iCV1#,SV1#..4D198203-198607

FR

sub90541-06056

main90541-09021iCV1#,SV1#..4D198203-198607

RR

sub90541-09068

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-32010iCV1#,SV1#..4D198203-198607

sub64461-32011

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-32010iCV1#,SV1#..4D198203-198607

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-32010iCV1#,SV1#..4D198203-198607

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iCV1#,SV1#..4D198203-198607

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-32010iCV10,SV1#..4D198203-198406

main64531-32010iCV1#,SV10,11..4D198406-198607

W/O SPOILER

main64531-32020iSV1#..4D..(VF,VR,VS,VX,XE,XS,ZE,ZX)198406-198607

W/SPOILER

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-32010iCV1#,SV10,11..4D198406-198607

W/O SPOILER

main64532-32010iCV10,SV1#..4D198203-198406

main64532-32020iSV1#..4D..(VF,VR,VS,VX,XE,XS,ZE,ZX)198406-198607

W/SPOILER

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007iCV1#,SV1#..4D198203-198607

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-32010iCV1#,SV1#..4D198203-198607

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-32010iCV1#,SV1#..4D198203-198607

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iCV1#,SV1#..4D198203-198607

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-32010iCV1#,SV1#..4D198203-198607

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iSV1#..4D198203-198607

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90463-05005iCV1#,SV1#..4D198203-198607

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20030iCV10,SV1#..4D198203-198406

main64610-32010iCV1#,SV1#..4D198406-198607

sub64610-12020

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iCV1#,SV1#..4D198406-198607

main90506-09001iCV10,SV1#..4D198203-198406

7601

7701

9010506037

main90105-06037

9011906023

main90119-06023

9011906136

main90119-06136

9151140610

main91511-40610

23 parts on this diagram · 1 diagram in section
