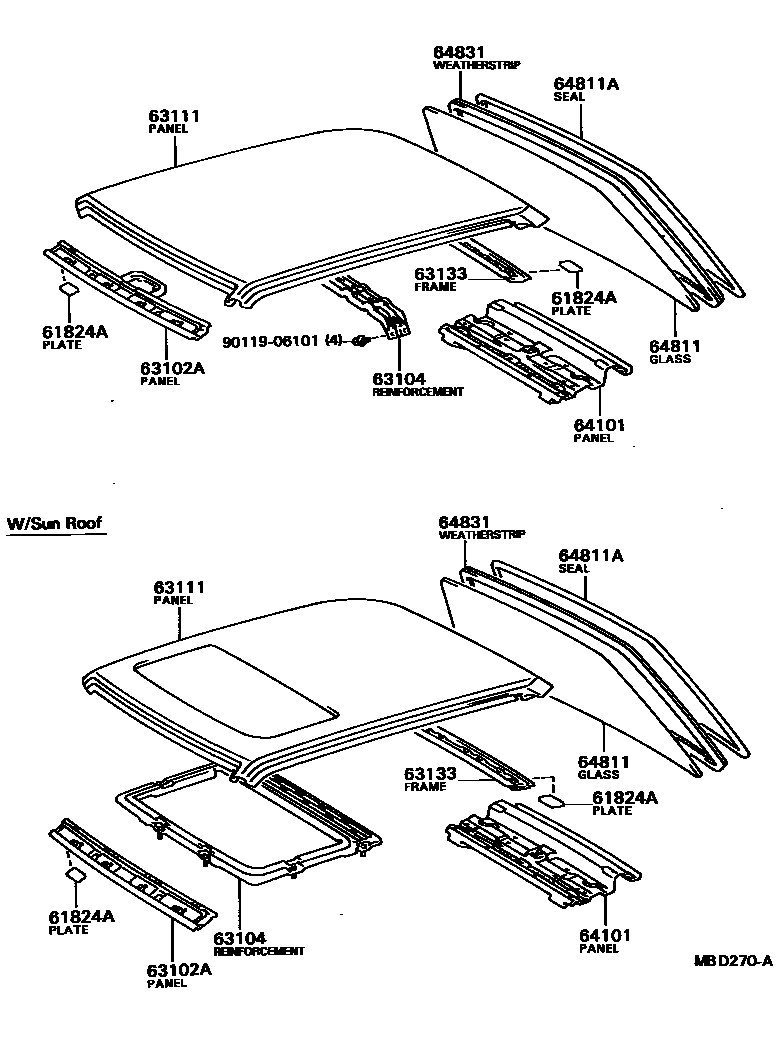

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

61824APLATE, NOISE CONTROL, NO.1

main61824-32010iCV1#,SV1#198406-198607

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-32010iCV1#,SV1#..4D198203-198607

W/O MAP LAMP

main63102-32020iCV1#,SV1#..4D..(SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX)198203-198607

W/MAP LAMP

main63102-32030iCV1#,SV1#..5D198208-198607

W/O MAP LAMP

main63102-32040iCV1#,SV1#..5D..(VE,VF,VR,VS,VX)198208-198607

W/MAP LAMP

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-32010iCV10,SV1#..4D..(SE,VE,VF,VX,XE,ZX)198203-198406

W/O SUN ROOF

main63103-32020iCV10,SV1#..5D..(VE,VF,VX)198208-198406

W/O SUN ROOF

main63141-32010iCV1#,SV1#..4D198203-198607

W/O SUN ROOF

main63141-32020iSV1#..5D..VL198208-198607

W/O SUN ROOF

main63142-32010iCV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX198203-198607

W/SUN ROOF

63111PANEL, ROOF

main63111-32010iCV1#,SV1#..4D198203-198607

W/O SUN ROOF

main63111-32020iCV1#,SV1#..4D..(SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX)198203-198607

W/SUN ROOF

main63111-32030iCV1#,SV1#..5D198208-198607

W/O SUN ROOF

main63111-32040iCV1#,SV1#..5D..(VE,VF,VR,VS,VX)198208-198607

W/SUN ROOF

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-32010iCV1#,SV1#..4D198203-198607

64101PANEL SUB-ASSY, UPPER BACK

main64101-32010iCV1#,SV1#..4D198203-198607

64811GLASS, BACK WINDOW

main64811-32010iCV10,SV1#..4D..(LT,VC,VF,VL,VS,XE,XS,XT)198203-198508

*EHTT,T=4.0

sub64811-32011

main64811-32011iCV11,SV10,11..4D..(LT,VC,VF,VL,XE,XT)198508-198607

*EHTT,T=4.0

main64811-32020iSV10..4D..(SE,VE,VR,VX,ZE,ZX);CV10,SV11,12..4D..(VF,VX,XE,ZX)198203-198607

*EHTT,T=4.0

main64811-32030iSV1#..4D..(VR,VX,ZE,ZX)198203-198607

BRONZ,*EHTT,T=4.0

main64811-32050iSV10..4D..(VF,XE)198505-198508

LUMIERE,VF-2,BRONZE,*EHTT,T=4

sub64811-32051

main64811-32050iCV10,SV10..4D..VL198501-198508

SUPER EXTRA,BRONZE,*EHTT,T=4.0

sub64811-32051

main64811-32051iCV11,SV10..4D..(VF,XE)198508-198607

LUMIERE,VF-2,BRONZE,*EHTT,T=4

main64811-32051iCV11,SV10..4D..VL198508-198607

SUPER EXTRA,BRONZE,*EHTT,T=4.0

64811ASEAL, BACK WINDOW GLASS WEATHERSTRIP

main64814-14030iCV10,SV1#..4D198203-198311

sub64814-20020

main64814-32030iCV1#,SV1#..4D198311-198607

sub64814-32020

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-32010iCV10,SV1#..4D198203-198406

sub64812-32020

main64812-32020iCV10,SV1#..4D198406-198501

sub64812-32021

main64812-32021iCV1#,SV1#..4D198501-198607

9011906101

main90119-06101

10 parts on this diagram · 3 diagrams in section
