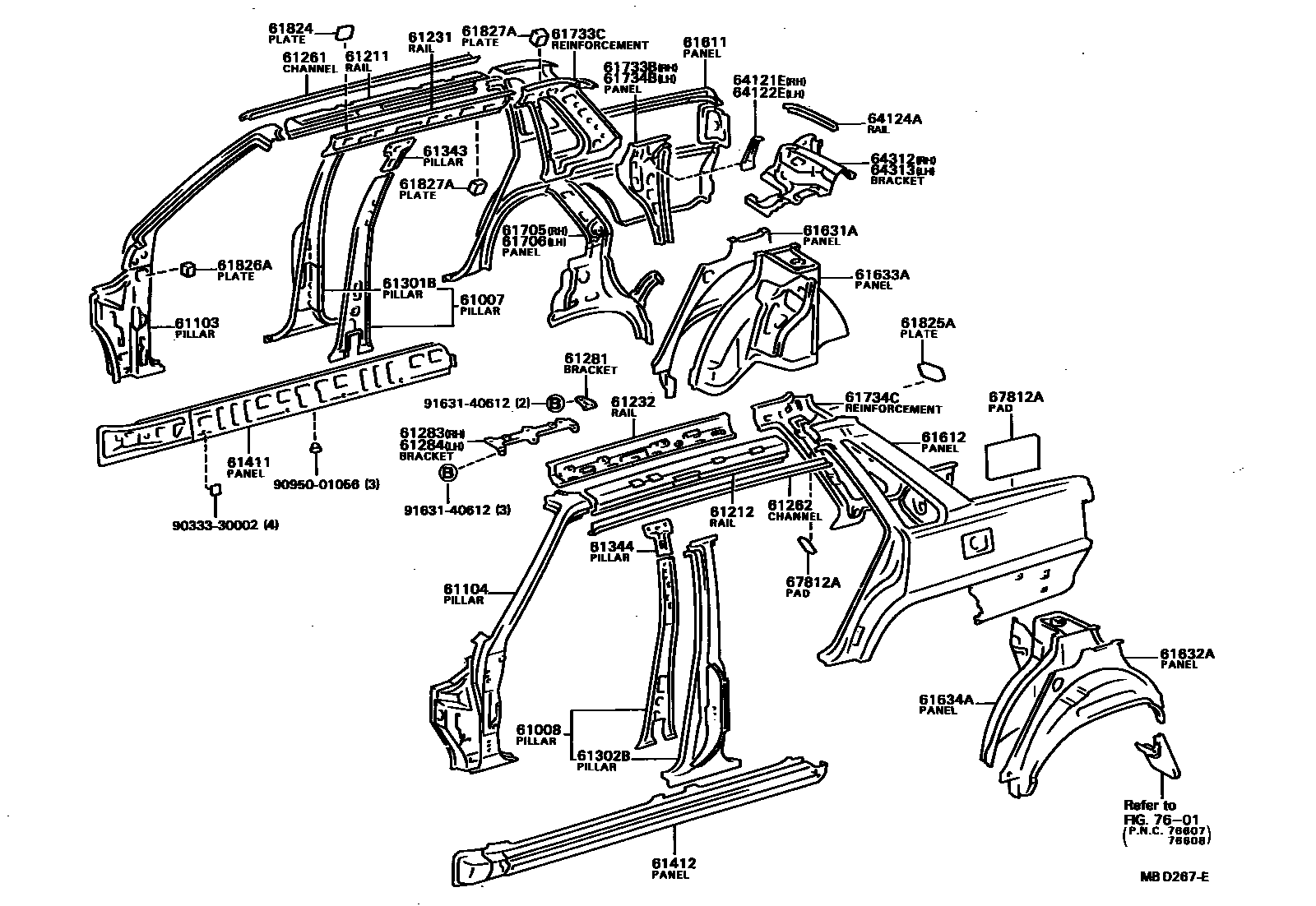

SIDE MEMBER

0001 1 0002 1

61007PILLAR SUB-ASSY, CENTER, RH

main61007-32900iCV1#,SV1#..4D¥26,100198203-198607

main61007-32901iCV1#,SV1#..5D¥26,100198208-198607

61008PILLAR SUB-ASSY, CENTER, LH

main61008-32900iCV1#,SV1#..4D¥26,100198203-198607

main61008-32901iCV1#,SV1#..5D¥26,100198208-198607

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-32020iCV10,SV1#..4D..(LT,SE,VC,VE,VF,VL,XE,XT)¥49,600198203-198406

W/O POWER WINDOW

sub61021-32050

main61021-32030iCV10,SV1#..4D..(SE,VE,VF,VX,XE,ZX)198203-198406

W/POWER WINDOW

main61021-32050iCV1#,SV1#..4D198406-198607

main61021-32130iCV1#,SV1#..5D198208-198607

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-32010iCV10,SV1#..4D..(LT,SE,VC,VE,VF,VL,XE,XT)¥49,500198203-198406

W/O POWER WINDOW

sub61022-32060

sub90950-01056¥230

main61022-32020iCV10,SV1#..4D..(SE,VE,VF,VX,XE,ZX)¥49,500198203-198406

W/POWER WINDOW

sub61022-32060

sub90950-01056¥230

main61022-32060iCV1#,SV1#..4D198406-198607

main61022-32140iCV1#,SV1#..5D¥44,900198208-198607

sub61022-32150

sub90950-01056¥230

61211RAIL, ROOF SIDE, OUTER RH

main61211-32010iCV1#,SV1#..4D198203-198607

main61211-32020iCV1#,SV1#..5D198208-198607

61212RAIL, ROOF SIDE, OUTER LH

main61212-32010iCV1#,SV1#..4D¥6,100198203-198607

main61212-32020iCV1#,SV1#..5D198208-198607

61231RAIL, ROOF SIDE, INNER RH

main61231-32020iCV10,SV1#..4D¥4,520198203-198505

sub61231-32040¥4,520

main61231-32040iCV1#,SV1#..4D¥4,520198505-198607

main61231-32060iSV1#..5D198208-198301

sub61231-32080

main61231-32080iCV1#,SV1#..5D198301-198607

61232RAIL, ROOF SIDE, INNER LH

main61232-32020iCV10,SV1#..4D¥3,640198203-198505

sub61232-32040

main61232-32040iCV1#,SV1#..4D198505-198607

main61232-32060iSV1#..5D198208-198301

sub61231-32080

main61232-32080iCV1#,SV1#..5D198301-198607

61261CHANNEL, ROOF DRIP, RH

main61261-32010iCV1#,SV1#..4D¥3,570198203-198607

main61261-32020iCV1#,SV1#..5D198208-198607

61262CHANNEL, ROOF DRIP, LH

main61262-32010iCV1#,SV1#..4D198203-198607

main61262-32020iCV1#,SV1#..5D198208-198607

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-32010iCV1#,SV1#..4D..(SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX)198203-198607

main61281-32020iCV1#,SV1#..5D..(VE,VF,VR,VS,VX)198208-198607

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-32010iCV1#,SV1#..4D..(SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX)198203-198607

main61283-32020iCV1#,SV1#..5D..(VE,VF,VR,VS,VX)198208-198607

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-32010iCV1#,SV1#..4D..(SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX)198203-198607

main61284-32020iCV1#,SV1#..5D..(VE,VF,VR,VS,VX)198208-198607

61301BPILLAR, CENTER BODY, OUTER RH

main61301-32010iCV1#,SV1#..4D¥31,600198203-198607

main61301-32050iCV1#,SV1#..5D¥31,600198208-198607

61302BPILLAR, CENTER BODY, OUTER LH

main61302-32010iCV1#,SV1#..4D¥31,600198203-198607

main61302-32050iCV1#,SV1#..5D¥31,600198208-198607

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-32010iCV1#,SV1#..4D198203-198607

main61341-32020iCV1#,SV1#..5D¥1,350198208-198607

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-32010iCV1#,SV1#..4D¥1,350198203-198607

main61342-32020iCV1#,SV1#..5D¥1,920198208-198607

61411PANEL, ROCKER, OUTER RH

main61401-32010iCV10,SV1#¥30,900198203-198406

sub61401-32030¥35,100

main61401-32030iCV1#,SV1#¥35,100198406-198607

61412PANEL, ROCKER, OUTER LH

main61402-32010iCV10,SV1#¥30,900198203-198406

sub61402-32030¥35,100

main61402-32030iCV1#,SV1#¥35,100198406-198607

61611PANEL, QUARTER, RH

main61601-32010iCV1#,SV1#..4D¥49,100198203-198607

sub61601-32050¥48,800

main61601-32030iCV10,SV1#..5D¥49,100198208-198402

sub61601-32900¥49,100

sub58375-32020¥1,890

sub61623-32010¥4,850

sub61697-32020¥1,420

sub61757-32010¥270

main61601-32900iCV1#,SV1#..5D¥49,100198402-198607

sub61601-32902¥49,000

61612PANEL, QUARTER, LH

main61602-32010iCV1#,SV1#..4D¥49,100198203-198607

sub61602-32070¥48,800

main61602-32040iCV10,SV1#..5D198208-198402

sub61602-32900¥49,100

sub58376-32010¥1,890

sub61624-32010¥4,850

sub61698-32020¥1,420

sub61757-32010¥270

main61602-32900iCV1#,SV1#..5D¥49,100198402-198607

sub61602-32903¥49,000

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61603-32900iCV1#,SV1#¥16,900198203-198607

sub61603-32901¥16,900

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61604-32900iCV1#,SV1#¥18,900198203-198607

sub61604-32901¥18,900

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-32900iCV10,SV1#..4D..(LT,SE,VC,VE,VF,VL,XE,XT)198203-198311

sub61607-32902¥15,600

main61607-32901iSV1#..4D..(VX,ZX)198203-198406

main61607-32902iCV10,SV1#..4D..(LT,SE,VC,VE,VF,VL,XE,XT)¥15,600198311-198607

main61607-32904iCV1#,SV1#..5D¥15,600198208-198607

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-32900iCV10,SV1#..4D..(LT,SE,VC,VE,VF,VL,XE,XT)¥15,600198203-198607

main61608-32901iSV1#..4D..(VX,ZX)198203-198406

main61608-32903iCV1#,SV1#..5D¥15,600198208-198607

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-32900iCV1#,SV1#..4D¥13,900198203-198607

W/O SUN ROOF

sub61705-32901¥13,900

main61705-32901iCV1#,SV1#..4D..(SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX)¥13,900198203-198607

W/SUN ROOF

main61705-32902iSV1#..5D¥13,900198208-198308

sub61705-32903

main61705-32903iCV1#,SV1#..5D198308-198607

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-32900iCV1#,SV1#..4D¥13,900198203-198607

W/O SUN ROOF

sub61706-32901¥13,900

main61706-32901iCV1#,SV1#..4D..(SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX)¥13,900198203-198607

W/SUN ROOF

main61706-32902iSV1#..5D¥17,400198208-198308

sub61706-32903¥17,400

main61706-32903iCV1#,SV1#..5D¥17,400198308-198607

61733BPANEL, ROOF SIDE, INNER REAR RH

main61735-32900iCV1#,SV1#..4D198203-198607

61733CREINFORCEMENT, ROOF SIDE, INNER RH

main61731-32900iCV1#,SV1#..4D198203-198607

61734BPANEL, ROOF SIDE, INNER REAR LH

main61736-32900iCV1#,SV1#..4D198203-198607

61734CREINFORCEMENT, ROOF SIDE, INNER LH

main61732-32900iCV1#,SV1#..4D¥6,500198203-198607

61824PLATE, NOISE CONTROL, NO.1

main61824-32010iCV1#,SV1#198406-198607

61825APLATE, NOISE CONTROL, NO.2

main61825-32010iCV1#,SV1#..4D198406-198607

61826APLATE, NOISE CONTROL, NO.3

main61826-32010iCV1#,SV1#¥280198406-198607

sub62939-23010¥370

61827APLATE, NOISE CONTROL, NO.4

main61827-32010iCV1#,SV1#¥280198406-198607

sub62939-23010¥370

64121EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64121-32010iCV1#,SV1#198203-198607

64122EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64122-32010iCV1#,SV1#198203-198607

64124ARAIL, UPPER BACK PANEL

main64124-32010iCV1#,SV1#..4D¥1,610198203-198607

RH

main64125-32010iCV1#,SV1#..4D¥1,610198203-198607

LH

64312BRACKET, PACKAGE TRAY, RH

main64312-32010iCV1#,SV1#..4D¥3,000198203-198607

64313BRACKET, PACKAGE TRAY, LH

main64313-32010iCV1#,SV1#..4D¥3,000198203-198607

67812APAD, QUARTER PANEL SILENCER

main67811-32010iCV1#,SV1#..4D¥680198203-198607

300X200

sub67812-12010¥640

main67812-32010iCV1#,SV1#198203-198605

40X20

7601

9033330002

main90333-30002¥70

9095001056

main90950-01056¥230

9163140612

main91631-40612¥120

45 parts on this diagram · 2 diagrams in section
