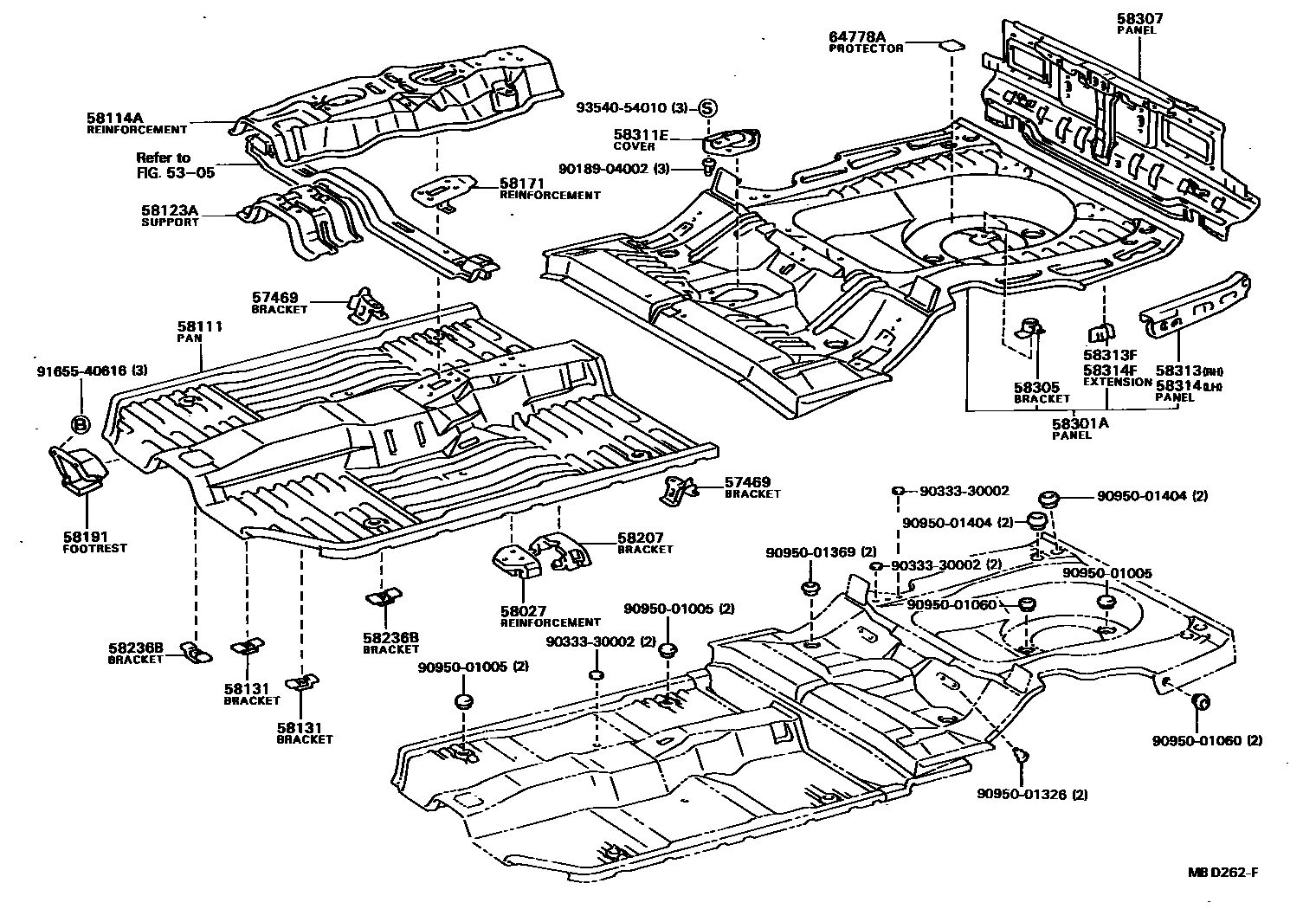

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305

57469BRACKET, FRONT SEAT, OUTSIDE

main57468-32010iCV1#,SV1#198203-198607

RH

main57469-32010iCV1#,SV1#198203-198607

LH

58027REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1

main58027-32010iCV1#,SV1#198203-198607

58111PAN, FRONT FLOOR

main58111-32010iCV1#,SV1#198203-198607

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-32900iCV1#,SV1#198203-198607

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-32010iCV1#,SV1#198203-198607

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-32010iCV1#,SV1#198203-198607

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-32010iCV1#,SV1#198203-198607

58191FOOTREST, FRONT FLOOR

main58191-32010iCV10,SV1#198203-198406

main58191-32020iCV1#,SV1#198406-198607

58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1

main58207-32010iCV1#,SV1#198203-198607

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iCV1#,SV1#198203-198607

58301APANEL SUB-ASSY, REAR FLOOR

main58301-32010iCV10,SV10..4D198203-198607

sub58301-32901

main58301-32020iSV1#..4D198208-198607

sub58301-32010

main58301-32040iCV1#,SV1#..5D198208-198607

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iCV1#,SV1#198203-198607

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-32010iCV1#,SV10,11..4D..(LT,VC,VL,XT)198203-198607

main58307-32020iCV1#,SV1#..4D..(SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX)198203-198607

main58307-32070iCV1#,SV1#..5D198208-198607

sub58307-32090

58311ECOVER, REAR FLOOR SERVICE HOLE

main58325-32010iCV1#,SV1#198203-198607

58313PANEL, REAR FLOOR SIDE, RH

main58313-32010iCV10,SV1#..4D198203-198505

sub58313-32020

main58313-32020iCV1#,SV1#..4D198505-198607

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-32030iCV1#,SV1#..5D198208-198607

main58315-32010iCV1#,SV1#..4D198203-198607

58314PANEL, REAR FLOOR SIDE, LH

main58314-32010iCV10,SV1#..4D198203-198505

sub58314-32020

main58314-32020iCV1#,SV1#..4D198505-198607

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-32030iCV1#,SV1#..5D198208-198607

main58317-32010iCV1#,SV1#..4D198203-198607

64778APROTECTOR, SPARE WHEEL

main64778-14020iCV1#,SV1#198203-198607

9018904002

main90189-04002

9033330002

main90333-30002

9095001005

main90950-01005

9095001060

main90950-01060

9095001326

main90950-01326

9095001369

main90950-01369

9095001404

main90950-01404

9165540616

main91655-40616

9354054010

main93540-54010

29 parts on this diagram · 2 diagrams in section
