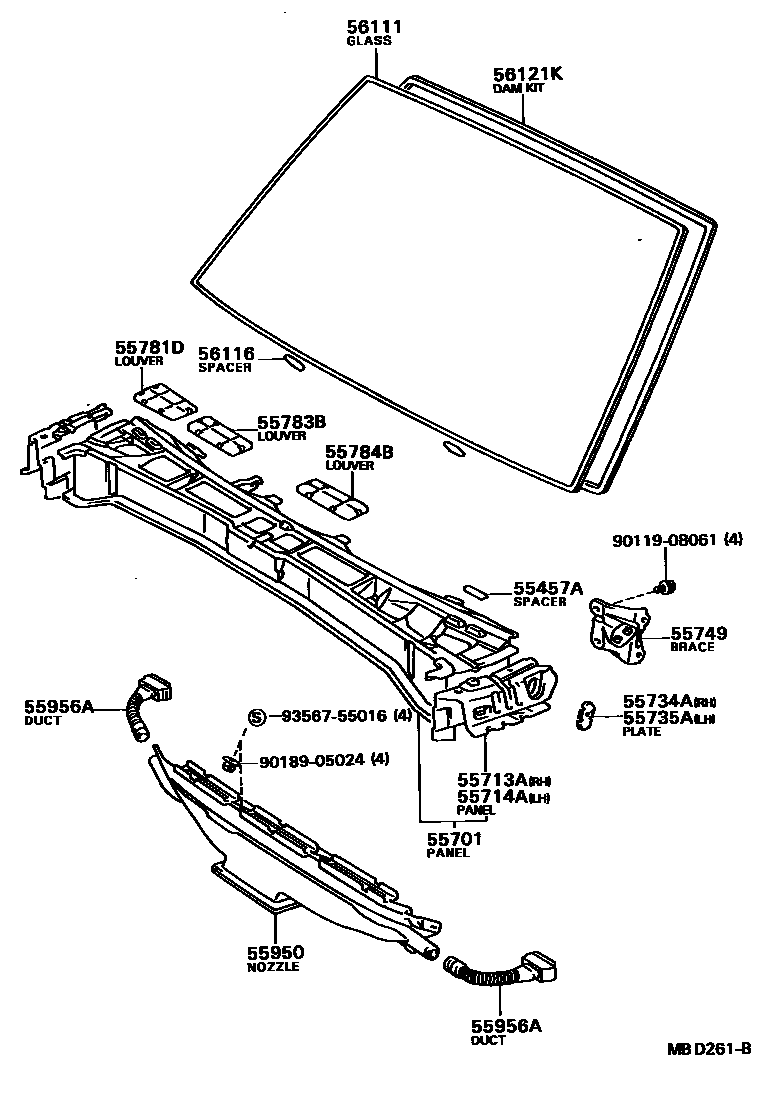

COWL PANEL & WINDSHIELD GLASS

55457ASPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030iCV1#,SV1#198203-198607

55701PANEL SUB-ASSY, COWL

main55700-32010iSV10198203-198406

sub55700-32011

main55700-32011iSV12198406-198504

sub55700-32021

main55700-32020iSV11198208-198406

sub55700-32021

main55700-32021iSV10,11198406-198607

main55700-32090iCV10198312-198406

sub55700-32091

main55700-32091iCV1#198406-198607

55713APANEL, COWL TOP SIDE, RH

main55713-32010iCV1#,SV1#198203-198607

55714APANEL, COWL TOP SIDE, LH

main55714-32010iCV1#,SV1#198203-198607

55734APLATE, WATER GUARD, RH

main55734-32010iCV1#,SV1#198203-198607

55735APLATE, WATER GUARD, LH

main55734-32010iCV1#,SV1#198203-198607

55749BRACE, COWL TOP TO PILLAR, LH

main55749-32010iCV1#,SV1#198203-198607

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-32010iCV1#,SV1#198203-198607

sub55781-32020

main55781-32020iCV11,SV1#198601-198607

COLD SPEC

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-32010iCV1#,SV1#198203-198607

sub55783-32020

main55783-32020iCV11,SV1#198601-198607

COLD SPEC

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-32010iCV1#,SV1#198203-198607

sub55784-32020

main55784-32020iCV11,SV1#198601-198607

COLD SPEC

55950NOZZLE ASSY, DEFROSTER

main55950-32010iSV10198203-198208

sub55950-32H00

main55950-32011iCV1#,SV1#198208-198607

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-32010iCV1#,SV1#198203-198607

56111GLASS, WINDSHIELD

main56111-32010iCV10,SV1#..4D..(LT,SE,VC,VE,VF,VL,VR,VS,XE,XS,XT,ZE)198203-198508

*TZT,T=5.0

sub56111-32040

main56111-32020iSV1#..4D..(VR,VX,ZE,ZX)198203-198607

*TL,T=5.3

main56111-32030iCV11,SV10..4D..(VF,XE)198505-198607

LUMIERE,VF-2,BRONZE,*TL,T=5.3

main56111-32030iSV1#..4D..(VX,ZX)198203-198607

BRONZE,*TL,T=5.3

main56111-32030iCV1#,SV10..4D..VL198501-198607

SUPER EXTRA,BRONZE,*TL,T=5.3

main56111-32040iCV11,SV1#..4D..(LT,VC,VF,VL,VS,XE,XS,XT)198508-198607

*TL,T=5.3

sub56111-32020

main56111-32050iCV10,SV1#..5D..(VE,VF,VL,VR,VS)198208-198508

*TZT,T=5.0

sub56111-32080

main56111-32060iCV11,SV1#..5D..(VF,VL,VS)198508-198607

*TL,T=5.3

sub56111-32080

main56111-32070iSV1#..5D..VX198208-198607

*TL,T=5.3

sub56111-32080

main56111-32080iCV1#,SV10..5D..VL198501-198607

SUPER EXTRA,BRONZE,*TL,T=5.3

main56111-32080iCV11,SV10..5D..VF198505-198607

VF-2,BRONZE,*TL,T=5.3

main56111-32080iSV1#..5D..(VR,VX)198208-198607

BRONZE,*TL,T=5.3

56116SPACER, WINDSHIELD GLASS

main56116-14070iCV1#,SV1#198203-198607

sub56116-32030

56121KDAM KIT, WINDSHIELD GLASS

main04562-14010iCV1#,SV1#198203-198607

sub04562-30040

9011908061

main90119-08061

9018905024

main90189-05024

9356755016

main93567-55016

18 parts on this diagram · 1 diagram in section
