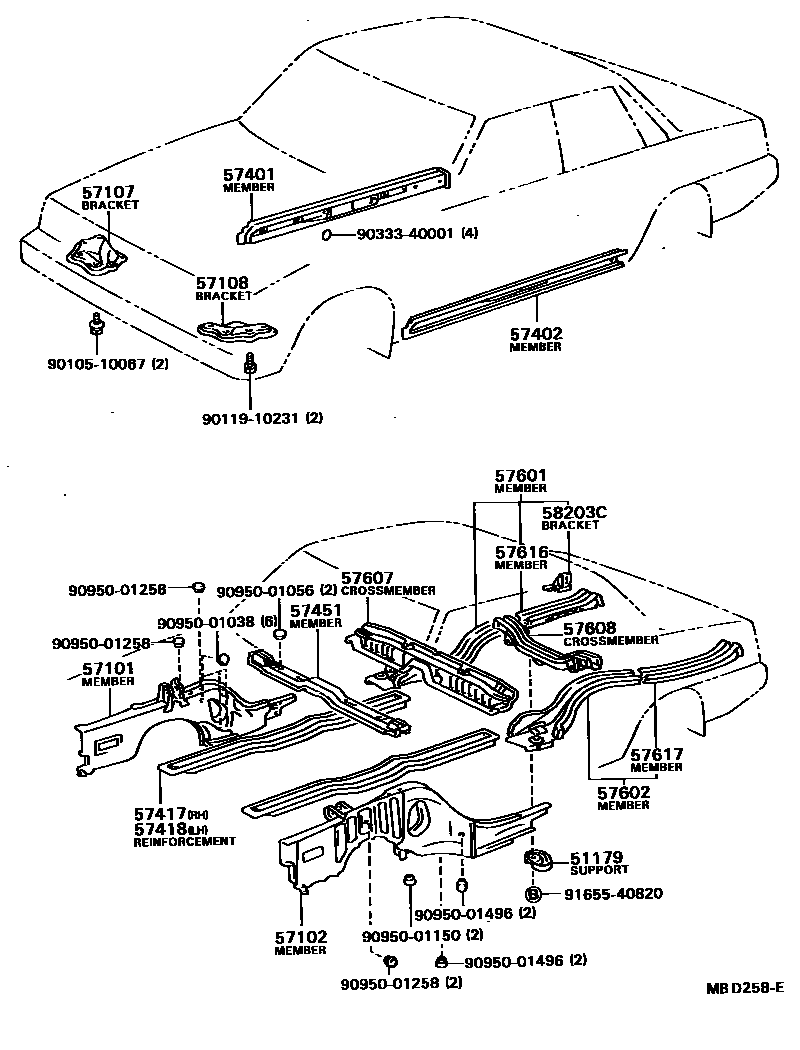

FLOOR SIDE MEMBER

51179SUPPORT, JACK UP

main51179-32010iSV11198208-198406

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-32010iCV1#,SV1#198203-198607

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-32010iCV1#,SV1#198203-198607

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-32010iCV1#,SV1#198203-198607

sub57107-32011

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-32010iCV1#,SV1#198203-198607

sub57108-32011

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-32010iCV1#,SV1#198203-198607

sub57401-32020

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-32010iCV1#,SV1#198203-198607

sub57402-32020

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-32010iSV1#198203-198210

sub57417-32020

main57417-32020iCV1#,SV1#198210-198607

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-32010iSV1#198203-198210

sub57417-32020

main57417-32020iCV1#,SV1#198210-198607

57451MEMBER, FRONT FLOOR CROSS

main57408-32010iCV1#,SV1#198203-198607

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-32010iCV10,SV1#198203-198406

sub57601-32020

main57601-32010iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

W/*UB

sub57601-32020

main57601-32030iCV1#,SV10..LT,VC,VL,XT198406-198607

W/P.P. BUMPER

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-32010iCV10,SV1#198203-198406

sub57602-32020

main57602-32010iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

W/*UB

sub57602-32020

main57602-32030iCV1#,SV10..LT,VC,VL,XT198406-198607

W/P.P. BUMPER

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-32010iCV1#,SV1#198203-198607

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-32010iSV1#198203-198210

sub57606-32020

main57606-32020iCV1#,SV1#198210-198607

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-32900iCV1#,SV1#198203-198607

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-32900iCV1#,SV1#198203-198607

58203CBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING

main58203-32011iCV1#,SV1#198203-198607

9010510067

main90105-10067

9011910231

main90119-10231

9033340001

main90333-40001

9095001038

main90950-01038

9095001056

main90950-01056

9095001150

main90950-01150

9095001258

main90950-01258

9095001496

main90950-01496

9165540820

main91655-40820

26 parts on this diagram · 1 diagram in section
