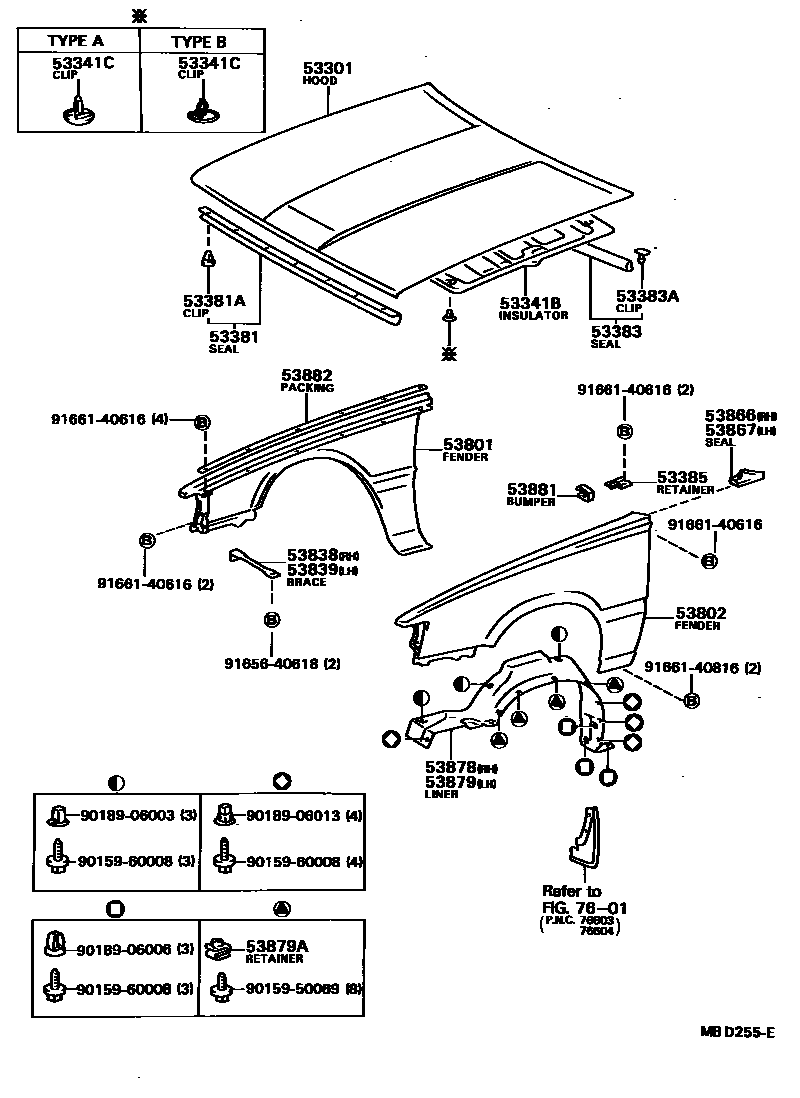

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-32010iCV1#,SV1#..CAM198203-198607

main53301-32020iCV1#,SV1#..VIS198203-198607

sub53301-32040

53341BINSULATOR, HOOD

main53341-32010iSV11198203-198607

sub53341-32020

main53341-32020iCV1#,SV12198308-198607

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006iSV11,12198203-198607

TYPE A

main90467-11020iCV1#198308-198607

TYPE B

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-32010iCV1#,SV1#198203-198607

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iCV1#,SV1#198203-198607

53383SEAL, HOOD TO COWL TOP

main53383-32010iCV1#,SV1#198203-198607

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08030iCV10,SV1#198203-198407

main90467-08044iCV1#,SV1#198407-198607

sub90467-08011

53385RETAINER, HOOD, BUMPER

main53385-14010iCV1#,SV1#198203-198607

RH

main53386-14010iCV1#,SV1#198203-198607

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-32010iCV1#,SV1#..LT,VC,VF,VL,VS,XE,XS,XT198203-198607

W/FENDER MIRROR

main53801-32020iSV10..SE,VE,VR,VX,ZE,ZX;CV10,SV11,12..VF,VX,XE,ZX198203-198607

W/FENDER MIRROR

main53801-32050iCV1#,SV1#..VF,VL,VS,XE,XS,XT198305-198607

W/O FENDER MIRROR

main53801-32060iSV10..SE,VE,VR,VX,ZE,ZX;CV10,SV11,12..VF,VX,XE,ZX198305-198607

W/O FENDER MIRROR

53802FENDER SUB-ASSY, FRONT LH

main53802-32010iCV1#,SV1#198203-198607

W/FENDER MIRROR

main53802-32050iCV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198305-198607

W/O FENDER MIRROR

sub53802-32021

53838BRACE, FRONT FENDER, RH

main53835-32010iCV1#,SV1#198203-198607

53839BRACE, FRONT FENDER, LH

main53835-32010iCV1#,SV1#198203-198607

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-32010iCV1#,SV1#198406-198607

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-32010iCV1#,SV1#198406-198607

53878LINER, FRONT FENDER, RH

main53875-32010iCV1#,SV1#198203-198607

53879LINER, FRONT FENDER, LH

main53876-32010iCV1#,SV1#198203-198607

53879ARETAINER, FRONT FENDER LINER

main53879-14010iCV1#,SV1#198203-198607

53881BUMPER, FENDER TO HOOD

main53384-14030iCV1#,SV1#198203-198607

53882PACKING, FRONT FENDER MAIN

main53882-32010iCV1#,SV1#198203-198607

7601

9015950069

main90159-50069

9015960008

main90159-60008

9018906003

main90189-06003

9018906006

main90189-06006

9018906013

main90189-06013

9165640618

main91656-40618

9166140616

main91661-40616

9166140816

main91661-40816

28 parts on this diagram · 1 diagram in section
