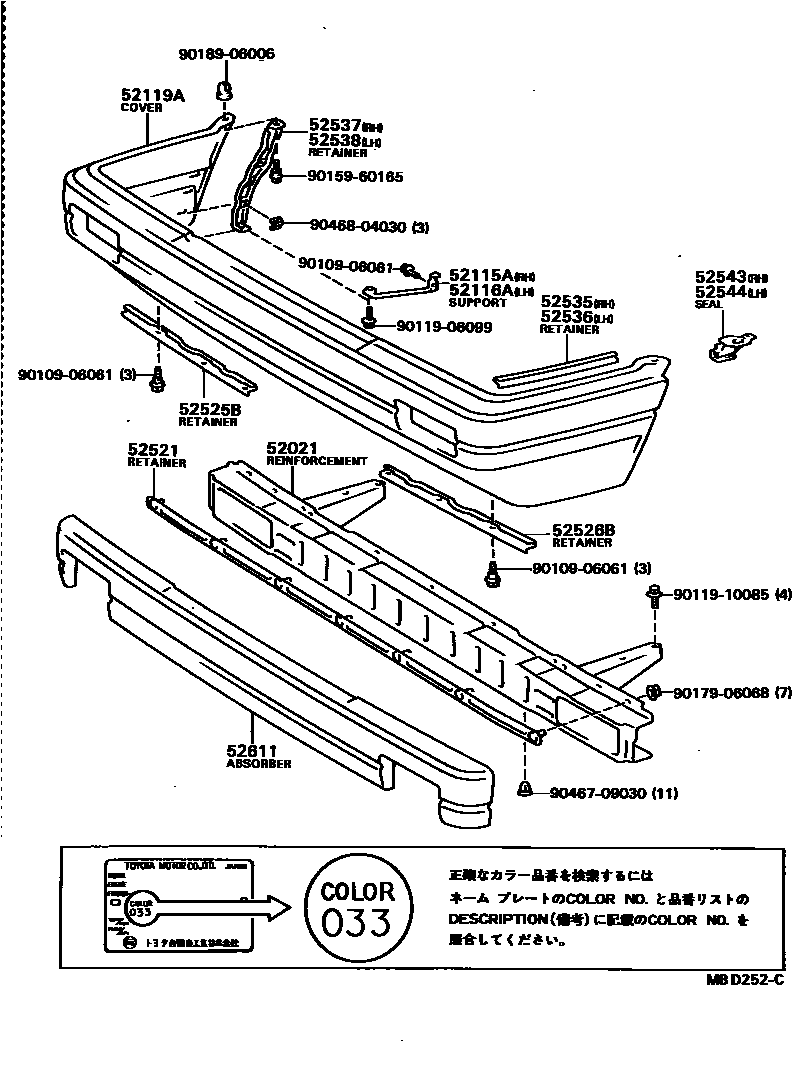

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-32010iCV10,SV1#198203-198406

main52021-32030iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

W/*UB

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-32010iCV1#,SV1#198203-198607

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-32010iCV1#,SV1#198203-198607

52119ACOVER, FRONT BUMPER

main52119-32010-03iCV10,SV1#..SE,XE,ZX198203-198406

SILVER,GRAY,033

sub52119-32912

main52119-32010-13iCV10,SV1#..SE,XE,ZX198305-198406

D-SILVER,GRAY,145 ,3B5 ,6E9

sub52119-32912

main52119-32010-13iCV10,SV1#..SE,XE,ZX198208-198406

D-SILVER,GRAY,379 ,865 ,4D2 ,894

sub52119-32912

main52119-32010-13iSV1#..SE,XE,ZX198203-198305

D-SILVER,GRAY,145 ,3B5 ,4B9 ,6E9 ,6G1

sub52119-32912

main52119-32020iCV10,SV1#..LT,XT198203-198406

BLACK

main52119-32030-02iSV10..VE,VX198203-198208

BRICK RED-M,RED/MAROON,4B9

sub52119-32901

main52119-32030-03iCV10,SV1#..VE,VF,VX198203-198406

ASH GRAY-M,GRAY,145

sub52119-32901

main52119-32030-03iCV10,SV1#..4D..VL198310-198406

EXTRA,ASH GRAY-M,GRAY,145

sub52119-32901

main52119-32030-04iCV10,SV1#..VE,VF,VX198208-198406

DARK BLUE-M,BLUE,865

sub52119-32901

main52119-32030-04iCV10,SV1#..VL198310-198406

EXTRA,DARK BLUE-M,BLUE,865

sub52119-32901

main52119-32030-06iSV10..VE,VX198203-198208

ORANGE-M,BROWN,3B3

sub52119-32901

main52119-32030-07iSV1#..VE,VF,VX198203-198212

SHADE GREEN-M,GREEN,6G1

sub52119-32901

main52119-32030-08iCV10,SV1#..VL198310-198406

EXTRA,WHITE,IVORY,033

sub52119-32901

main52119-32030-08iCV10,SV1#..VE,VF,VX198203-198406

WHITE,IVORY,033

sub52119-32901

main52119-32030-12iSV10..VE198206-198206

RED,RED/MAROON,391

sub52119-32901

main52119-32030-13iCV10,SV1#..VE,VF198301-198406

EXTRA D-SILVER,GRAY,2N6

sub52119-32901

main52119-32030-14iCV10,SV1#..VE,VF,VX198305-198406

LIGHT BLUE-M,BLUE,894

sub52119-32901

main52119-32030-15iCV10,SV1#..VE,VF,VX198305-198406

LIGHT BEIGE-M,BEIGE,4D2

sub52119-32901

main52119-32030-16iCV10,SV1#..VE,VF,VX198305-198406

CAMLE-M,BROWN,2R4

sub52119-32901

main52119-32030-17iCV10,SV1#..VE,VF,VX198203-198309

MINT GREEN-M,GREEN,6E9

sub52119-32901

main52119-32030-22iCV10,SV1#..VE,VF,VX198208-198309

DEEP MAROON-M,RED/MAROON,379

sub52119-32901

main52119-32030-32iCV10,SV1#..VE,VF,VX198208-198406

RED-M,RED/MAROON,3B5

sub52119-32901

main52119-32030-32iSV1#..5D..VL198310-198406

EXTRA,RED-M,RED/MAROON,3B5

sub52119-32901

main52119-32040iCV10,SV1#..VC,VL198203-198406

BRACK

main52119-32050-02iSV1#..SE,XE,ZX198203-198305

BRICK RED-M,RED/MAROON,2H1

sub52119-32050

sub52119-32912

main52119-32050-03iCV10,SV1#..SE,XE198301-198406

SALOON,D-SILVER,GRAY,2N6

sub52119-32050

sub52119-32912

main52119-32050-06iCV10,SV1#..SE,XE,ZX198305-198406

CAMEL-M,BROWN,2R4

sub52119-32050

sub52119-32912

main52119-32060iSV1#..VE,VF,VX198203-198305

BEIGE-M (2E3)

sub52119-32901

main52119-32110-01iSV12..VS,XS198406-198508

*UB,BLACK,BLACK,6A5

sub52119-32903

main52119-32110-02iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

*UB,RED,RED,3D7

sub52119-32903

main52119-32110-03iCV10,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198508

*UB,SILVER-M,SILVER METALLIC,148

sub52119-32903

main52119-32110-04iCV1#,SV1#..VF,VL,VR,VX,XE,XT,ZE,ZX198406-198607

*UB,BLUE-M,DARK TERCOISE BLUE M,8C2

sub52119-32903

main52119-32110-05iCV10,SV1#..VF,VL,VR,VS,VX,XE,XT,ZE,ZX198406-198508

*UB,BEIGE-M,LIGHT BEIGE,4D2 ,2T0

sub52119-32903

main52119-32110-08iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

*UB,WHITE,WHITE,041

sub52119-32903

main52119-32110-12iCV1#,SV10,11..VF,VL,VR,VX,XE,XT,ZE,ZX198406-198607

*UB,DARK RED,DARK RED,3F1

sub52119-32903

main52119-32110-13iCV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198508-198607

*UB,GRAY-M,MEDIUM GRAY METALLIC,157

sub52119-32903

main52119-32110-14iCV10,SV1#..4D..(VF,VR,VX,XE,ZE,ZX)198406-198508

*UB,DARK BLUE-M,DARK BLUE METALLIC,2S9

sub52119-32903

main52119-32110-15iSV12..VX,ZX198406-198607

*UB,BEIGE-M,LIGHT BEIGE METALLIC,2T1

sub52119-32903

main52119-32110-15iSV12..ZX198509-198607

LIMITED,BEIGE,LIGHT BEIGE METALLIC,041

sub52119-32903

main52119-32110-25iCV11,SV1#..VF,VL,VR,VS,VX,XE,XT,ZE,ZX198508-198607

*UB,BEIGE-M,BEIGE METALLIC,4E6

sub52119-32903

main52119-32130iCV1#,SV10..LT,VC,VL,XT198406-198607

P.P. BUMPER

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-32010iCV10,SV1#198203-198406

sub52521-32020

main52521-32040iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

W/*UB

sub52521-32050

52525BRETAINER, FRONT BUMPER, LOWER SIDE RH

main52526-32010iCV10,SV1#198203-198406

52526BRETAINER, FRONT BUMPER, LOWER SIDE LH

main52527-32010iCV10,SV1#198203-198406

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-32010iSV1#198203-198406

main52535-32020iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

W/*UB

52536RETAINER, FRONT BUMPER SIDE, LH

main52535-32010iSV1#198203-198406

main52535-32020iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

W/*UB

52537RETAINER, FRONT BUMPER END, RH

main52537-32010iCV10,SV1#..CAM198203-198406

main52537-32020iCV10,SV1#..VIS198203-198406

main52537-32030iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

W/*UB

52538RETAINER, FRONT BUMPER END, LH

main52538-32010iCV10,SV1#..CAM198203-198406

main52538-32020iCV10,SV1#..VIS198203-198406

main52538-32030iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

W/*UB

52543SEAL, FRONT BUMPER SIDE, RH

main52543-32010iCV10,SV1#198301-198309

52544SEAL, FRONT BUMPER SIDE, LH

main52544-32010iCV10,SV1#198301-198309

52611ABSORBER, FRONT BUMPER ENERGY

main52611-32010iCV10,SV1#..CAM198203-198406

main52611-32020iCV10,SV1#..VIS198203-198406

main52611-32050iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

W/*UB

9010906061

main90109-06061

9011906099

main90119-06099

9011910085

main90119-10085

9015960165

main90159-60165

9017906068

main90179-06068

9018906006

main90189-06006

9046709030

main90467-09030

9046804030

main90468-04030

22 parts on this diagram · 3 diagrams in section
