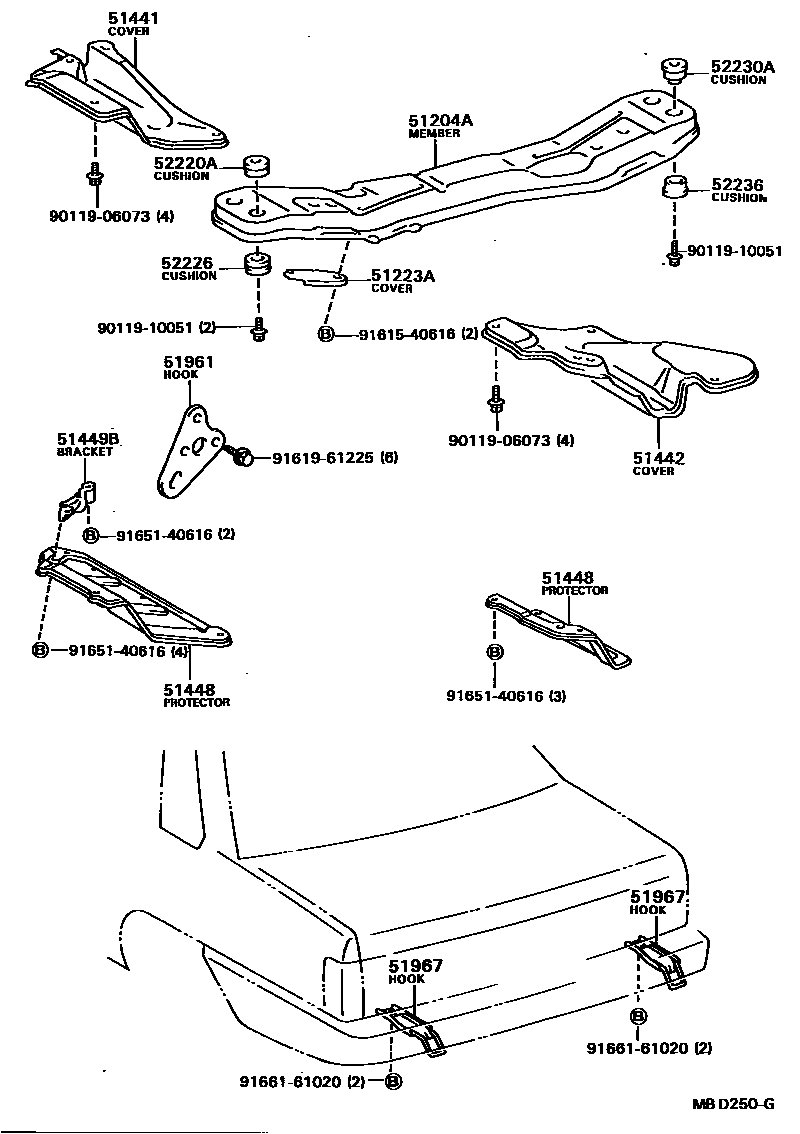

SUSPENSION CROSSMEMBER & UNDER COVER

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-32010iCV1#,SV1#198203-198607

51223ACOVER, ENGINE MOUNTING HOLE

main51223-32010iCV1#,SV1#198203-198607

51441COVER, ENGINE UNDER, NO.1

main51441-32010iSV10,11198203-198607

main51441-32020iCV1#,SV12198308-198607

51442COVER, ENGINE UNDER, NO.2

main51442-32010iCV1#,SV1#..5F198203-198607

main51442-32020iCV1#,SV1#..4FC198207-198607

51448PROTECTOR, OIL PAN

main51447-32010iCV1#,SV1#198203-198607

RH

main51448-32010iCV1#,SV1#198203-198607

LH

51449BBRACKET, OIL PAN PROTECTOR

main51449-32010iCV1#,SV1#198203-198607

51961HOOK, NO.1

main51963-32010iCV10,SV1#198203-198406

main51963-32020iCV1#,SV1#198406-198607

51967HOOK, TRANSPORT, REAR

main51095-32010iCV1#,SV10..LT,VC,VL,XT198406-198607

W/P.P.BUMPER

52220ACUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER

main52220-32010iSV10,11198203-198607

main52220-32020iCV1#,SV12198308-198607

52226CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER

main52226-32010iSV10,11198203-198607

main52226-32020iCV1#,SV12198308-198607

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-32010iSV10,11198203-198607

main52230-32020iCV1#,SV12198308-198607

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-32010iSV10,11198203-198607

main52236-32020iCV1#,SV12198308-198607

9011906073

main90119-06073

9011910051

main90119-10051

9161540616

main91615-40616

9161961225

main91619-61225

9165140616

main91651-40616

9166161020

main91661-61020

18 parts on this diagram · 1 diagram in section
