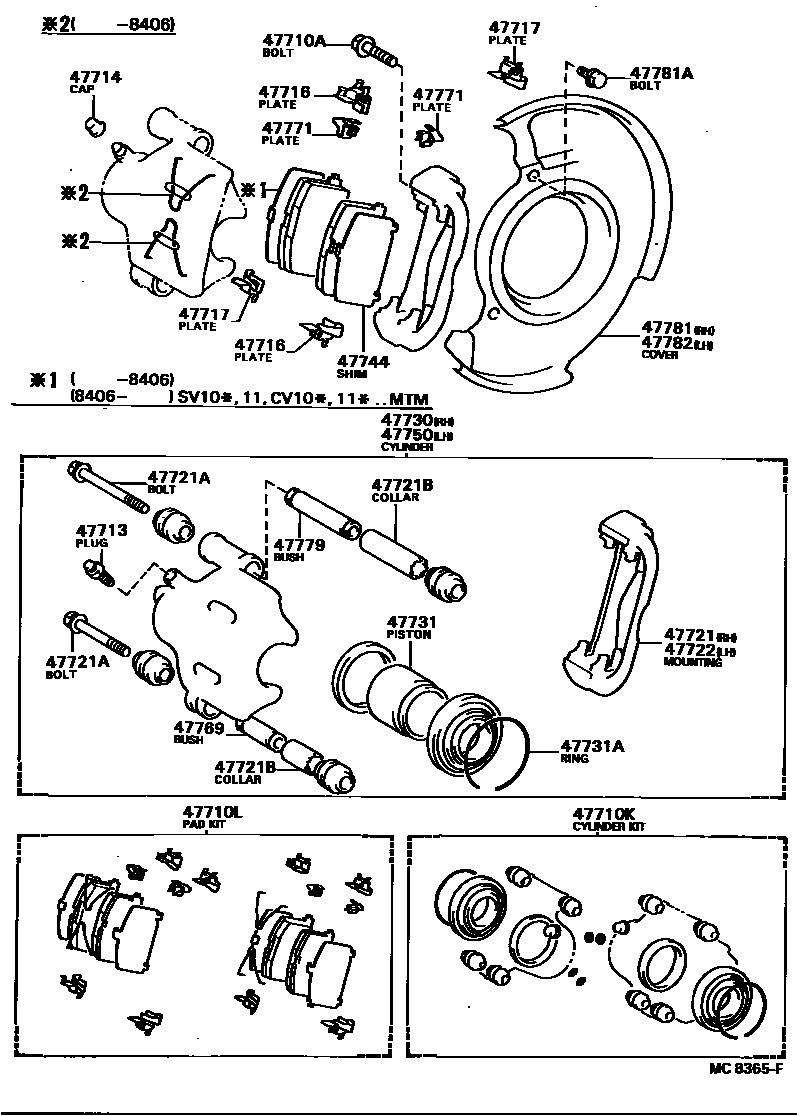

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iCV1#,SV1#198203-198607

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-32010iCV10,SV1#198203-198501

sub04479-32011

main04479-32011iCV1#,SV1#198501-198607

47710LPAD KIT, DISC BRAKE, FRONT

main04491-32010iSV1#198203-198212

sub04491-32012

main04491-32040iCV10,SV1#198212-198406

sub04491-32041

main04491-32041iSV11..5F;CV1#,SV10198406-198607

sub04491-32042

main04491-32050iSV12;SV11..4FC198406-198607

sub04491-32051

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iCV1#,SV1#198203-198607

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCV1#,SV1#198203-198607

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010iCV1#,SV1#198203-198607

sub47716-32031

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010iCV1#,SV1#198203-198607

sub47717-32031

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-32010iCV10,SV1#198203-198607

main47721-32020iSV12;SV11..4FC198406-198601

sub47721-32030

main47721-32030iSV12;SV11..4FC198601-198607

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iCV1#,SV1#198203-198607

main90119-09004iCV1#,SV1#198203-198607

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004iCV1#,SV1#198203-198607

L=12

main90387-15005iCV1#,SV1#198203-198607

L=32

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-32010iSV11..5F;CV1#,SV10198203-198607

main47721-32020iSV12;SV11..4FC198406-198601

sub47721-32030

main47721-32030iSV12;SV11..4FC198601-198607

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12170iSV11..5F;CV1#,SV10198410-198607

sub47730-12171

main47730-17030iSV11..5F;CV10,SV10198406-198410

sub47730-12170

main47730-32010iCV10,SV1#198203-198406

sub47730-12170

main47730-32022iSV12;SV11..4FC198406-198607

47731PISTON, FRONT DISC BRAKE

main47731-20070iCV1#,SV1#198305-198607

main47731-32010iSV1#198203-198305

sub47731-20070

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iCV1#,SV1#198203-198607

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32010iCV1#,SV1#198203-198607

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12170iSV11..5F;CV1#,SV10198410-198607

sub47750-12171

main47750-17030iSV11..5F;CV10,SV10198406-198410

sub47750-12170

main47750-32010iCV10,SV1#198203-198406

sub47750-12170

main47750-32022iSV12;SV11..4FC198406-198607

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-32010iCV1#,SV1#198203-198607

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010iCV1#,SV1#198203-198607

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-32010iCV1#,SV1#198203-198607

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-32010iCV1#,SV1#198203-198607

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06196iSV1#198203-198305

sub91611-G0612

main90119-06227iCV1#,SV1#198305-198607

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-32010iCV1#,SV1#198203-198607

22 parts on this diagram · 2 diagrams in section
