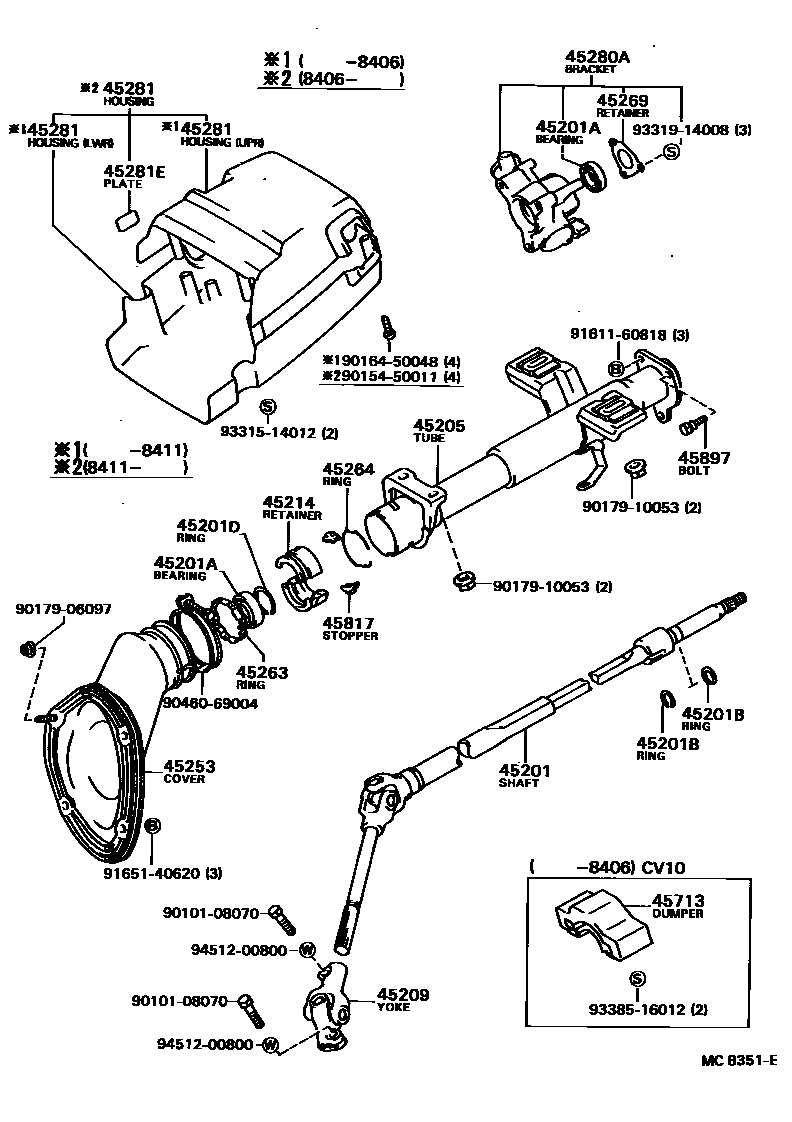

STEERING COLUMN & SHAFT

0001 1 0003 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-32010iSV10..LT,VC198203-198406

sub45210-32070

main45210-32020iSV10..SE,VE,VL,VX,XT,ZX198203-198406

sub45210-32080

main45210-32030iCV10,SV11198208-198406

sub45210-32090

main45210-32070iSV10..LT,VC198406-198607

main45210-32080iSV10..VF,VL,VR,XE,XT,ZE198406-198508

main45210-32090iCV10,SV11,12198406-198607

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iCV1#,SV1#198203-198607

UPR

main90363-30007iCV1#,SV1#198203-198607

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCV1#,SV1#198203-198607

main90520-17196iCV1#,SV1#198203-198607

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iCV1#,SV1#198203-198607

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-32010iSV1#198203-198406

main45870-32030iCV10198308-198406

main45870-32040iSV10..LT,VC198406-198607

main45870-32050iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-32010iSV10..LT,VC198203-198607

sub45209-10020

main45209-32020iCV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198203-198607

sub45209-16010

45214RETAINER, MAIN SHAFT SPRING

main45214-32010iCV1#,SV1#198203-198607

45253COVER, STEERING COLUMN HOLE

main45025-32010iCV10,SV1#198203-198406

main45025-32030iCV1#,SV1#198406-198607

45263RING, STEERING COLUMN, NO.1

main45263-32010iCV1#,SV1#198203-198607

45264RING, STEERING COLUMN, NO.2

main45264-32010iCV1#,SV1#198203-198607

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iCV1#,SV1#198203-198607

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-32011iCV10,SV1#198203-198607

sub45280-32050

main45280-32050iSV1#..VR,VX,ZE,ZX198406-198607

45281HOUSING, STEERING COLUMN

main45024-32010-01iSV1#198203-198305

LWR,BLACK,BLACK,TRIM1#,8#

sub45286-32900

main45024-32010-06iSV1#198203-198305

LWR,DEEP BROWN,BROWN,TRIM4#

sub45286-32900

main45024-32010-14iCV10,SV1#198305-198406

LWR,BLUE,BLUE,TRIM8#

sub45286-32900

main45024-32010-16iCV10,SV1#198305-198406

LWR,DARK BROWN,BROWN,TRIM4#

sub45286-32900

main45024-32010-23iCV10,SV1#198305-198406

LWR,DARK GRAY,GRAY,TRIM1#

sub45286-32900

main45286-32010-01iSV1#198203-198305

UPR,BLACK,BLACK,TRIM1#,8#

sub45286-32900

main45286-32010-06iSV1#198203-198305

UPR,DEEP BROWN,BROWN,TRIM4#

sub45286-32900

main45286-32010-14iCV10,SV1#198305-198406

UPR,BLUE,BLUE,TRIM8#

sub45286-32900

main45286-32010-16iCV10,SV1#198305-198406

UPR,DARK BROWN,BROWN,TRIM4#

sub45286-32900

main45286-32010-23iCV10,SV1#198305-198406

UPR,DARK GRAY,GRAY,TRIM1#

sub45286-32900

main45286-32903-03iSV10..LT,VC198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub45286-32903

main45286-32903-04iSV10..LT,VC198406-198607

BLUE,BLUE,TRIM8#

sub45286-32903

main45286-32903-05iSV10..LT,VC198408-198607

BEIGE,BEIGE,TRIM4#

sub45286-32903

main45286-32905-03iCV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX198406-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub45286-32905

main45286-32905-04iCV1#,SV1#..VF,VL,VR,VX,XE,XT,ZE,ZX198406-198607

BLUE,BLUE,TRIM8#

sub45286-32905

main45286-32905-05iCV1#,SV1#..VF,VL,VR,VX,XE,XT,ZE,ZX198408-198607

BEIGE,BEIGE,TRIM4#

sub45286-32905

45281EPLATE, SAFETY CAUTION

main45283-12010iCV1#,SV1#198203-198607

45713DUMPER, STEERING SHAKE

main45713-20010iCV1#198406-198607

main45713-32010iCV10198308-198406

45817STOPPER, STEERING SHAFT THRUST

main45817-32010iCV1#,SV1#198203-198607

45897BOLT, STEERING LOCK SET

main45897-12020iCV1#,SV1#198406-198607

9010108070

main90101-08070

9015450011

main90154-50011

9016450048

main90164-50048

9017906097

main90179-06097

9017910053

main90179-10053

9046069004

main90460-69004

9161160818

main91611-60818

9165140620

main91651-40620

9331514012

main93315-14012

9331914008

main93319-14008

9338516012

main93385-16012

9451200800

main94512-00800

29 parts on this diagram · 2 diagrams in section
