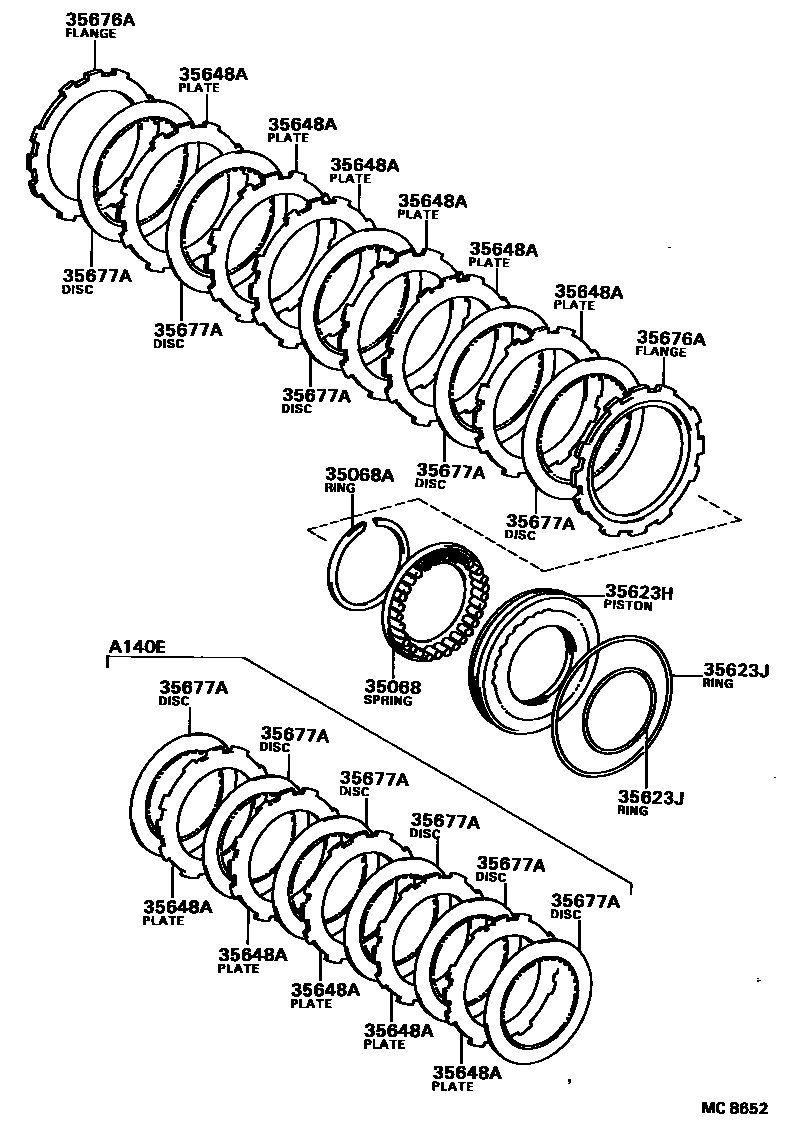

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iCV1#,SV1#..4FC198207-198607

sub35068-20010

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iCV1#,SV1#..4FC198207-198607

35623HPISTON, 1ST & REVERSE BRAKE

main35623-32010iCV1#,SV1#..4FC198207-198607

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iCV1#,SV1#..4FC198207-198607

INNER

main90301-99022iCV1#,SV1#..4FC198207-198607

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020×6iCV1#,SV1#..4FC198207-198607

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010×2iCV1#,SV1#..4FC198207-198607

sub35676-12030

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-32020×6iCV10,SV1#..4FC198207-198404

main35677-32040×6iCV1#,SV1#..4FC198404-198607

7 parts on this diagram · 1 diagram in section
