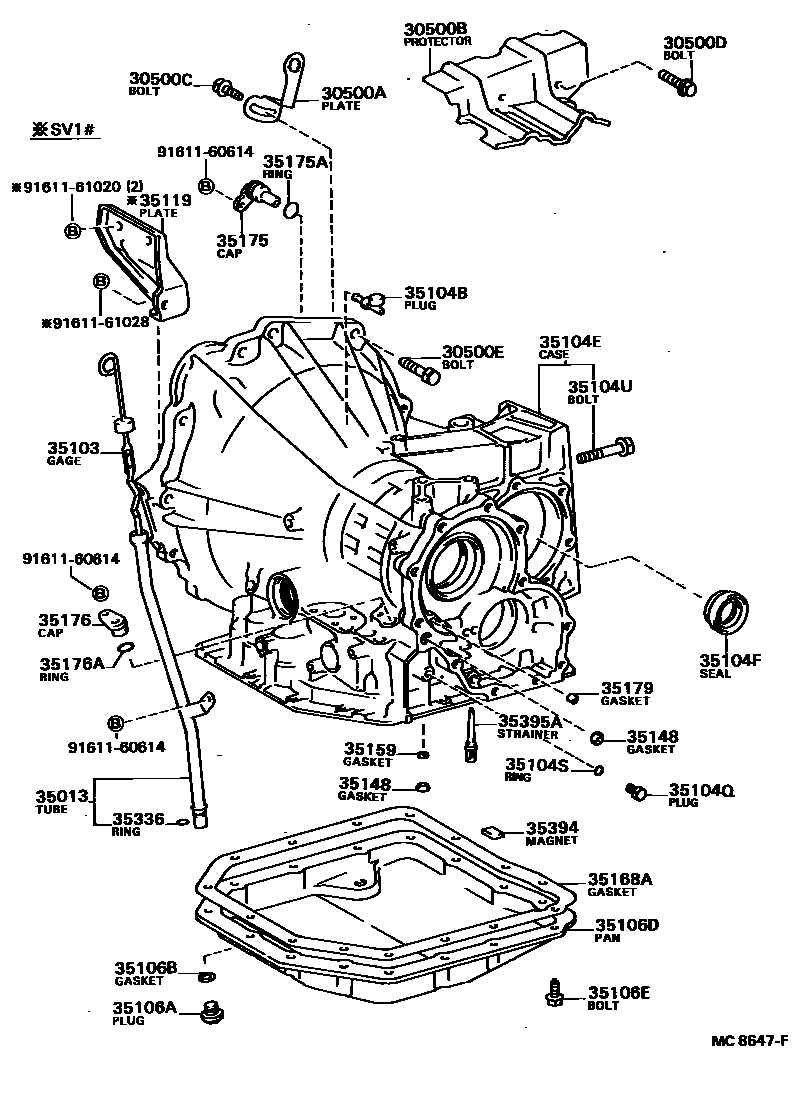

TRANSMISSION CASE & OIL PAN (ATM)

30500APLATE, BOLT LOCK(ATM)

main31129-32010iCV10,SV1#..4FC198207-198406

30500BPROTECTOR, TRANSAXLE CASE

main33117-20010iCV11,SV1#..4FC198512-198512

sub33117-32022

main33117-32020iCV10,SV1#..4FC198207-198405

sub33117-32021

main33117-32021iCV1#,SV1#..4FC198405-198512

sub33117-20010

main33117-32022iCV11,SV1#..4FC198512-198607

30500CBOLT(FOR PLATE BOLT LOCK)

main90105-08040iCV1#,SV1#..4FC198207-198607

sub91641-H0820

30500DBOLT(FOR TRANSAXLE CASE PROTECTOR)

main90105-08040iCV1#,SV1#..4FC198207-198607

sub91641-H0820

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10055iCV10,SV1#..4FC198207-198406

sub90105-10077

main90105-10077iCV1#,SV1#..4FC198406-198607

main91619-61245iCV1#,SV1#..4FC198207-198607

main91651-41016iSV1#..4FC198507-198607

*10-1.25PX16-16

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-20160iSV12..4FC198406-198607

main35013-32010iCV1#,SV10..4FC198207-198607

main35013-32020iSV11..4FC198208-198607

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-32010iCV1#,SV1#..4FC198207-198607

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iCV1#,SV1#..4FC198207-198607

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-32010iCV10,SV1#..4FC198207-198411

sub35104-32020

main35104-32020iCV10,SV1#..4FC198411-198508

sub35104-32031

sub41181-32011

main35104-32031iCV11,SV1#..4FC198508-198607

sub35104-32032

sub33117-32022

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-35010iCV1#,SV1#..4FC198207-198607

sub90311-35019

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iCV10,SV1#..4FC198207-198607

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iCV10,SV1#..4FC198207-198607

35104UBOLT (FOR TRANSAXLE CASE)

main90105-12052iCV1#,SV1#..4FC198207-198607

sub90105-12263

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iCV1#,SV1#..4FC198207-198607

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iSV1#..4FC198207-198305

main90430-18007iCV10,SV1#..4FC198305-198408

sub90430-18008

main90430-18008iCV1#,SV1#..4FC198408-198607

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10020iCV1#,SV1#..4FC198409-198602

W/PROTECTOR

sub35106-10021

main35106-10021iCV11,SV1#..4FC198602-198607

W/PROTECTOR

sub35106-10022

main35106-32010iCV1#,SV1#..4FC198207-198602

sub35106-32011

main35106-32011iCV11,SV1#..4FC198602-198607

sub35106-32012

main35106-32020iCV10,SV1#..4FC198210-198409

W/PROTECTOR

sub35106-10020

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iCV1#,SV1#..4FC198207-198607

35119PLATE, STIFENER, LH (ATM)

main33119-32010iSV1#..4FC198207-198607

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iCV1#,SV1#..4FC198207-198607

35159GASKET, BRAKE DRUM

main35159-32010iCV1#,SV1#..4FC198207-198510

sub35159-32011

main35159-32011iCV11,SV1#..4FC198510-198607

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-32010iCV1#,SV1#..4FC198207-198607

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iCV1#,SV1#..4FC198207-198607

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iCV1#,SV1#..4FC198207-198607

35176CAP, WIRE HARNESS

main35176-32010iCV1#,SV10..4FC198207-198607

35176ARING, O (FOR WIRE HARNESS CAP)

main96721-24013iCV1#,SV10..4FC198207-198607

35179GASKET, OVERDRIVE BRAKE

main35179-32010iCV1#,SV1#..4FC198207-198607

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iCV1#,SV1#..4FC198207-198607

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iCV1#,SV1#..4FC198207-198607

35395ASTRAINER, GOVERNOR OIL

main35395-32010iCV1#,SV10..4FC198207-198511

sub35395-32011

main35395-32011iCV11,SV10..4FC198511-198607

9161160614

main91611-60614

9161161020

main91611-61020

9161161028

main91611-61028

32 parts on this diagram · 1 diagram in section
