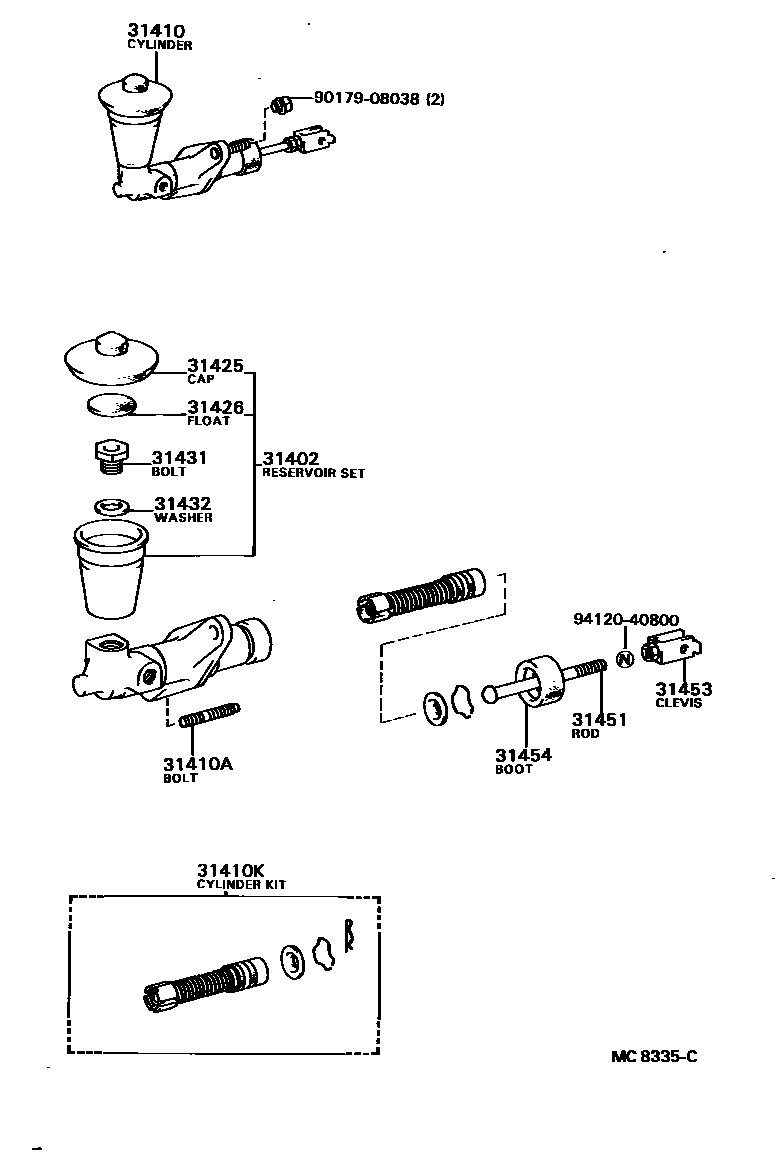

CLUTCH MASTER CYLINDER

0001 1 0002 1

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iCV1#,SV1#..5F198203-198607

31410CYLINDER ASSY, CLUTCH MASTER

main31410-32010iSV1#..5F198203-198403

sub31410-32080

main31410-32011iSV1#..5F198403-198505

sub31410-32012

main31410-32012iSV1#..5F198505-198607

sub31410-32090

main31410-32040iCV1#..5F198308-198607

sub31410-32041

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iCV1#,SV1#..5F198203-198607

31410KCYLINDER KIT, CLUTCH MASTER

main04311-30080iCV1#..5F198308-198607

sub04311-14020

main04311-32010iSV1#..5F198203-198403

main04311-32020iSV1#..5F198403-198607

sub04311-32021

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iCV1#,SV1#..5F198203-198607

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iCV1#,SV1#..5F198203-198607

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iCV1#,SV1#..5F198203-198607

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iCV1#,SV1#..5F198203-198607

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-30060iCV1#..5F198308-198607

main31451-32010iSV1#..5F198203-198607

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iCV1#..5F198506-198607

sub31404-28012

main31404-30041iCV10..5F198308-198506

main31453-22010iSV1#..5F198203-198607

sub31453-35010

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iSV1#..5F198203-198607

main31454-24010iCV1#..5F198308-198607

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
