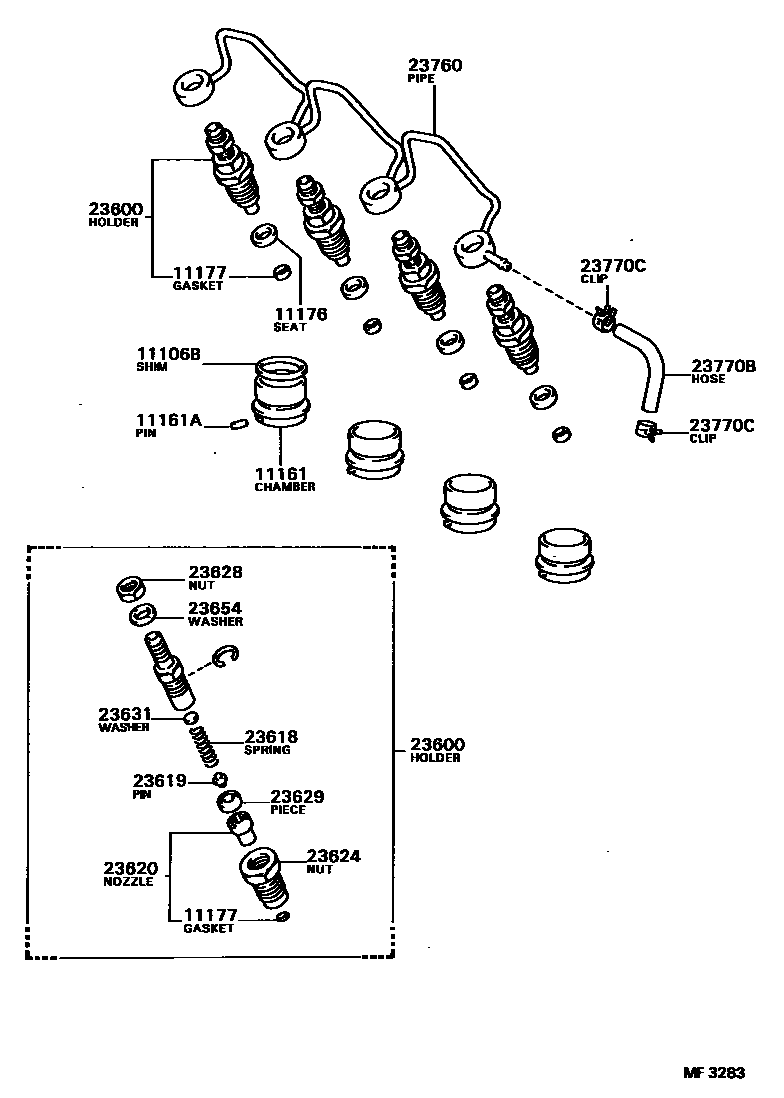

INJECTION NOZZLE

11106BSHIM(FOR COMBUSTION CHAMBER)

main11165-64010i1CTL,2CTL..CV1#198308-198607

sub11165-64011

main11166-64010i1CTL,2CTL..CV1#198308-198607

sub11166-64011

11161CHAMBER, COMBUSTION

main11161-64010i1CTL..CV10198308-198508

main11161-64050i2CTL..CV11198508-198607

sub11106-64050

11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)

main90250-02046i1CTL,2CTL..CV1#198308-198607

11176SEAT, INJECTION NOZZLE

main11176-64010i1CTL,2CTL..CV1#198308-198607

11177GASKET, INJECTION NOZZLE SEAT

main11177-64010i1CTL,2CTL..CV1#198308-198607

23600HOLDER & NOZZLE SET, NOZZLE

main23600-69025i1CTL..CV10198308-198508

main23600-69045i2CTL..CV11198508-198607

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-64010i1CTL,2CTL..CV1#198308-198607

23619PIN, NOZZLE HOLDER PRESSURE

main23619-64010i1CTL,2CTL..CV1#198308-198607

23620NOZZLE ASSY

main23620-69025i1CTL..CV10198308-198508

main23620-69035i2CTL..CV11198508-198607

23624NUT, NOZZLE RETAINING

main23624-64010i1CTL..CV10198308-198508

sub23624-55010

main23624-64040i2CTL..CV11198508-198607

sub23624-64041

23628NUT(FOR RING PACKING SETTING)

main23628-64010i1CTL,2CTL..CV1#198308-198607

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-64010i1CTL,2CTL..CV1#198308-198607

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-64010i1CTL,2CTL..CV1#198308-198607

main23631-64011i1CTL,2CTL..CV1#198308-198607

main23631-64012i1CTL,2CTL..CV1#198308-198607

main23631-64013i1CTL,2CTL..CV1#198308-198607

main23631-64014i1CTL,2CTL..CV1#198308-198607

main23631-64015i1CTL,2CTL..CV1#198308-198607

main23631-64016i1CTL,2CTL..CV1#198308-198607

main23631-64017i1CTL,2CTL..CV1#198308-198607

main23631-64018i1CTL,2CTL..CV1#198308-198607

main23631-64019i1CTL,2CTL..CV1#198308-198607

main23632-64010i1CTL,2CTL..CV1#198308-198607

main23632-64011i1CTL,2CTL..CV1#198308-198607

main23632-64012i1CTL,2CTL..CV1#198308-198607

main23632-64013i1CTL,2CTL..CV1#198308-198607

main23632-64014i1CTL,2CTL..CV1#198308-198607

main23632-64015i1CTL,2CTL..CV1#198308-198607

main23632-64016i1CTL,2CTL..CV1#198308-198607

main23632-64017i1CTL,2CTL..CV1#198308-198607

main23632-64018i1CTL,2CTL..CV1#198308-198607

main23632-64019i1CTL,2CTL..CV1#198308-198607

main23633-64010i1CTL,2CTL..CV1#198308-198607

main23633-64011i1CTL,2CTL..CV1#198308-198607

main23633-64012i1CTL,2CTL..CV1#198308-198607

main23633-64013i1CTL,2CTL..CV1#198308-198607

main23633-64014i1CTL,2CTL..CV1#198308-198607

main23633-64015i1CTL,2CTL..CV1#198308-198607

main23633-64016i1CTL,2CTL..CV1#198308-198607

main23633-64017i1CTL,2CTL..CV1#198308-198607

main23633-64018i1CTL,2CTL..CV1#198308-198607

main23633-64019i1CTL,2CTL..CV1#198308-198607

main23634-64010i1CTL,2CTL..CV1#198308-198607

main23634-64011i1CTL,2CTL..CV1#198308-198607

main23634-64012i1CTL,2CTL..CV1#198308-198607

main23634-64013i1CTL,2CTL..CV1#198308-198607

main23634-64014i1CTL,2CTL..CV1#198308-198607

main23634-64015i1CTL,2CTL..CV1#198308-198607

main23634-64016i1CTL,2CTL..CV1#198308-198607

main23634-64017i1CTL,2CTL..CV1#198308-198607

main23634-64018i1CTL,2CTL..CV1#198308-198607

main23634-64019i1CTL,2CTL..CV1#198308-198607

main23635-64010i1CTL,2CTL..CV1#198308-198607

main23635-64011i1CTL,2CTL..CV1#198308-198607

main23635-64012i1CTL,2CTL..CV1#198308-198607

23654WASHER(FOR RING PACKING)

main23654-64010i1CTL,2CTL..CV1#198308-198607

23760PIPE ASSY, NOZZLE LEAKAGE

main23761-64030i1CTL,2CTL..CV1#198308-198607

23770BHOSE, FUEL

main23274-64010i1CTL,2CTL..CV1#198308-198607

*H,L=130

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96132-30400i1CTL,2CTL..CV1#198308-198607

sub96132-51000

17 parts on this diagram · 1 diagram in section
