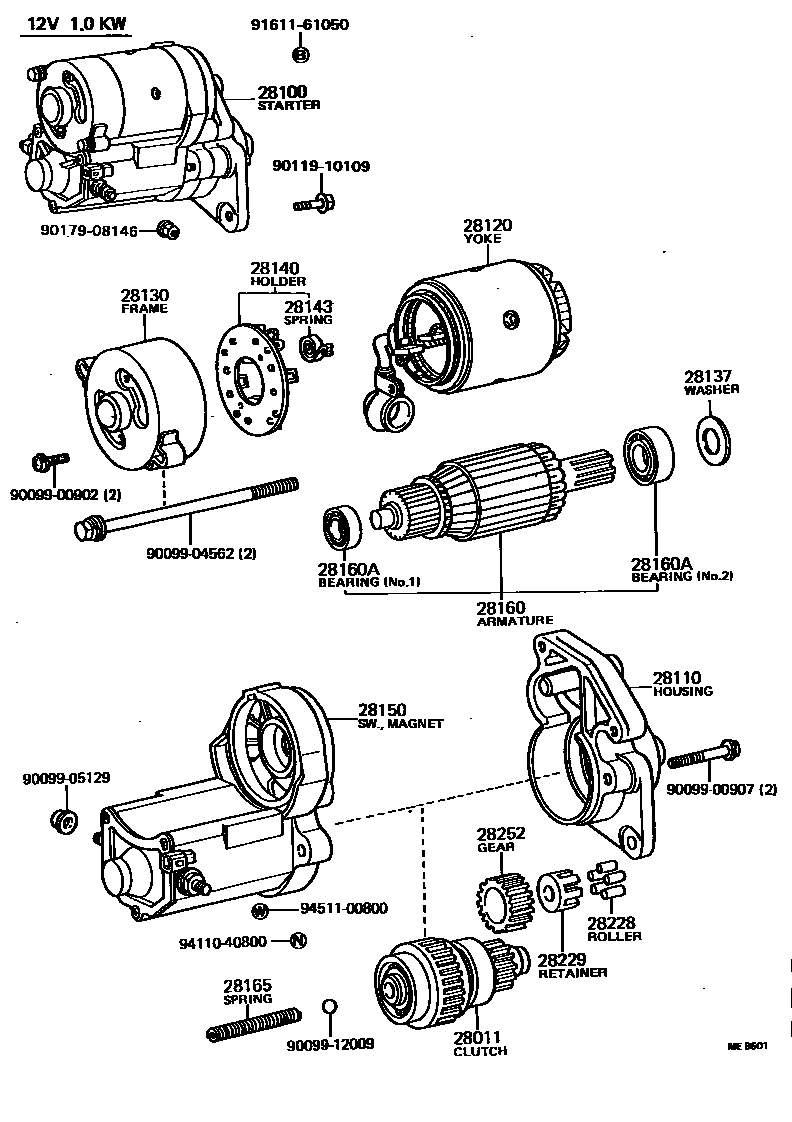

STARTER

0001 1 0002 1 0003 1 0004 1 0005 1

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i1S#,2SELU,3SGELU..SV1#198203-198607

12V 1.0KW

main28011-64010i1CTL,2CTL..CV1#198308-198607

12V 1.4KW

sub28011-67030

main28011-64020i1CTL,2CTL..CV1#..5F198308-198607

12V 2.0KW

main28011-64030i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW

28100STARTER ASSY

main28100-63020i1S#,2SELU..SV10,11198203-198607

main28100-63050i3SGELU..SV12198406-198607

sub28100-74040

main28100-64020i1CTL,2CTL..CV1#..5F198308-198607

sub28100-64040

main28100-64070i1CTL,2CTL..CV1#198308-198607

sub28100-64040

main28100-64080i1CTL,2CTL..CV1#..4FC198308-198607

28110HOUSING ASSY, STARTER DRIVE

main28110-63020i1S#,2SELU..SV10,11198203-198607

12V 1.0KW

main28110-63050i3SGELU..SV12198406-198607

12V 1.0KW

main28110-64070i1CTL,2CTL..CV1#198308-198607

12V 1.4KW

main28115-64020i1CTL,2CTL..CV1#..5F198308-198607

12V 2.0KW

main28115-64030i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW

28120YOKE ASSY, STARTER

main28120-15090i1CTL,2CTL..CV1#198308-198607

12V 1.4KW

main28120-26071i1S#,2SELU,3SGELU..SV1#198203-198607

12V 1.0KW

main28120-47040i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW

main28120-64020i1CTL,2CTL..CV1#..5F198308-198607

12V 2.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i3SGELU..SV12198406-198607

12V 1.0KW

main28130-15090i1CTL,2CTL..CV1#198308-198607

12V 1.4KW

main28130-63020i1S#,2SELU..SV10,11198203-198607

12V 1.0KW

main28130-64080i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW

28137WASHER, FELT, STARTER

main90099-02205i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW

main90099-02323i1S#,2SELU,3SGELU..SV1#198203-198410

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i1CTL,2CTL..CV1#198308-198607

12V 1.4KW

main28140-26070i1S#,2SELU,3SGELU..SV1#198203-198607

12V 1.0KW

main28140-54070i1CTL,2CTL..CV1#..5F198308-198607

12V 2.0KW

main28140-77090i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW

28143SPRING, STARTER BRUSH

main90099-17112i1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#198203-198607

12V 1.0KW,1.4KW

main90099-17115i1CTL,2CTL..CV1#..5F198308-198607

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-63021i1S#,2SELU..SV10,11198203-198607

12V 1.0KW

main28150-63050i3SGELU..SV12198406-198607

12V 1.0KW

main28150-64020i1CTL,2CTL..CV1#..5F198308-198607

12V 2.0KW

main28150-64030i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW

sub28150-17010

main28150-64070i1CTL,2CTL..CV1#198308-198607

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-15090i1CTL,2CTL..CV1#198308-198607

12V 1.4KW

sub28160-15091

main28160-26070i1S#,2SELU,3SGELU..SV1#198203-198607

12V 1.0KW

sub28160-26071

main28160-47040i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW

sub28160-54140

main28160-54070i1CTL,2CTL..CV1#..5F198308-198607

12V 2.0KW

sub28160-54071

28160ABEARING, STARTER ARMATURE

main28253-45020i1S#,2SELU,3SGELU..SV1#198203-198607

12V 1.0KW,NO.1

main28253-54070i1CTL,2CTL..CV1#..5F198308-198607

12V 2.0KW,NO.1

main90099-10107i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW,NO.2

main90099-10113i1S#,2SELU,3SGELU..SV1#198203-198607

12V 1.0KW,NO.2

main90099-10119i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW,NO.1

main90099-10131i1CTL,2CTL..CV1#..5F198308-198607

12V 2.0KW,NO.2

main90099-10143i1CTL,2CTL..CV1#198308-198607

12V 1.4KW,NO.2,OD=13

main90099-10144i1CTL,2CTL..CV1#198308-198607

12V 1.4KW,NO.1,OD=26

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#198203-198607

12V 1.0KW,1.4KW,2.0KW

main28165-77090i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#198203-198607

12V 1.0KW,1.4KW,2.0KW

main28228-56080i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#198203-198607

12V 1.0KW,1.4KW,2.0KW

main28229-56080i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW

28252GEAR, STARTER IDLE

main28254-45020i1S#,2SELU,3SGELU..SV1#198203-198607

12V 1.0KW

main28254-54070i1CTL,2CTL..CV1#198308-198607

12V 1.4KW,2.0KW

main28254-77090i1CTL,2CTL..CV1#..4FC198308-198607

12V 2.5KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9011910109

main90119-10109

9017908146

main90179-08146

9161161050

main91611-61050

9411040800

main94110-40800

9451100800

main94511-00800

25 parts on this diagram · 5 diagrams in section
