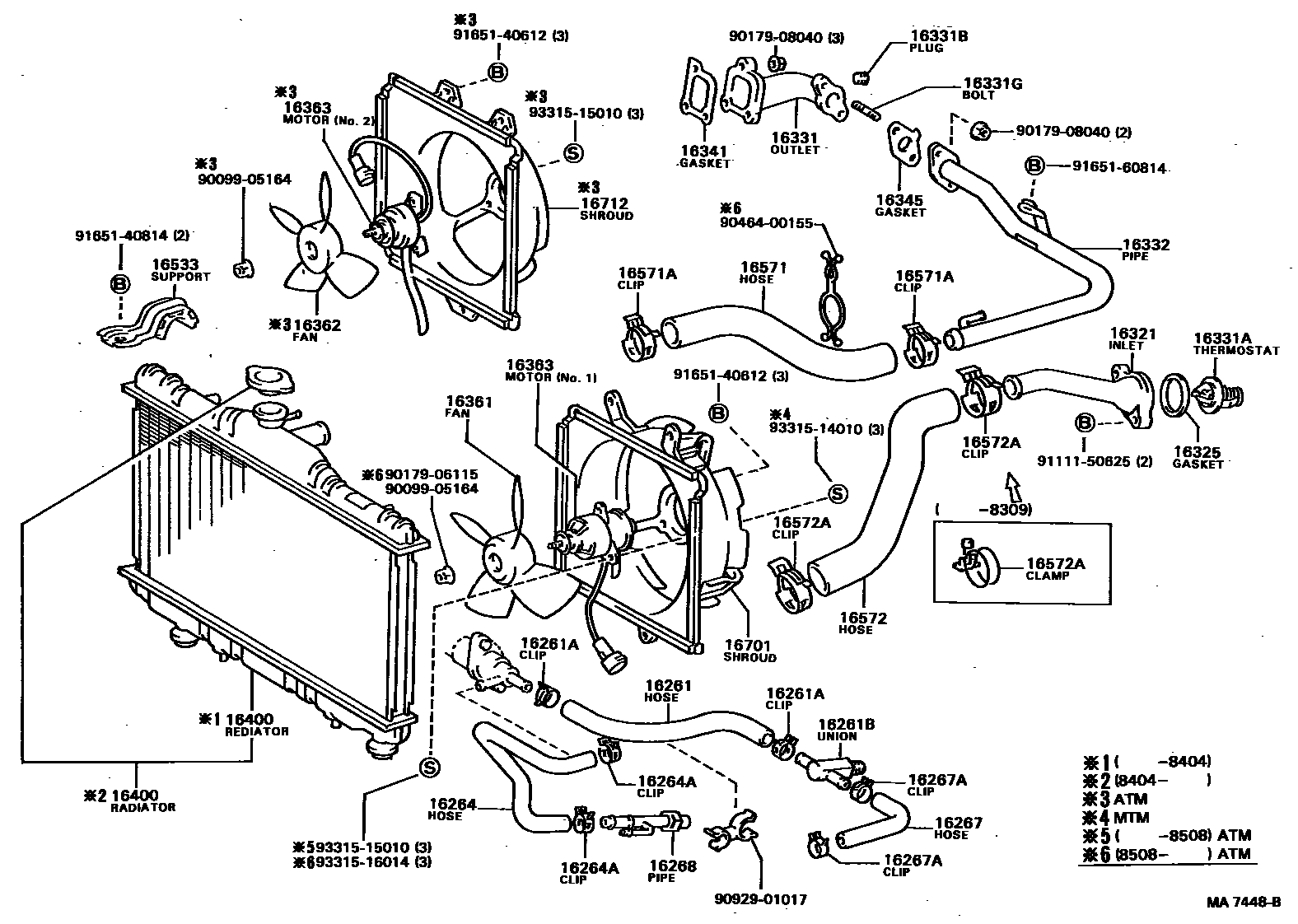

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16261HOSE, WATER BY-PASS

main16261-63010i1S#,2SELU..SV10,11198203-198607

main16261-64030i1CTL..CV10198308-198508

main16261-64060i2CTL..CV11198508-198607

main16261-88360i3SGELU..SV12198406-198607

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15004i1CTL,2CTL..CV1#198308-198607

main90467-21001i1SILU,2SELU..SV10,11198406-198607

sub90467-21006

main90467-22003i3SGELU..SV12198412-198607

sub90467-21010

main96111-10250i1SLU,2SELU..SV1#198203-198308

sub96112-10250

main96112-10250i1S#,2SELU..SV10,11198308-198508

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-53050i1CTL,2CTL..CV1#198308-198607

main90406-17001i3SGELU..SV12198406-198607

sub90406-17012

16264HOSE, WATER BY-PASS, NO.2

main16264-64030i1CTL..CV10198308-198405

sub16264-64031

main16264-64031i1CTL..CV10198405-198508

main16264-64060i2CTL..CV11198508-198607

main99553-10230i1SLU..SV10198304-198308

sub99555-10300

main99553-10230i1SLU..SV10198212-198304

COLD SPEC

sub99555-10300

main99555-10230i1SLU..SV10198308-198406

sub99555-10300

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i1SLU..SV10198304-198406

sub96135-51300

main90467-13001i1SLU..SV10198212-198304

COLD SPEC

sub96135-51300

main90467-15004i1CTL,2CTL..CV1#198308-198607

16267HOSE, WATER BY-PASS, NO.3

main16267-64010i1CTL,2CTL..CV1#198308-198607

main99553-00130i1SLU..SV10198212-198304

COLD SPEC

sub99555-00200

main99553-00130i1SLU..SV10198304-198308

sub99555-00200

main99555-00130i1SLU..SV10198308-198405

sub99555-00200

main99555-00140i1SLU..SV10198405-198406

sub99555-00150

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-11009i1SLU..SV10198212-198304

COLD SPEC

sub96135-51100

main90467-11009i1CTL,2CTL..CV1#198304-198607

sub96135-51100

16268PIPE, WATER BY-PASS, NO.1

main16268-63010i1SLU..SV10198212-198304

COLD SPEC

sub16268-63020

main16268-63010i1SLU..SV10198304-198406

sub16268-63020

main16268-64020i1CTL..CV10198308-198508

main16268-64040i2CTL..CV11198508-198607

main16268-88360i3SGELU..SV12198406-198607

16321INLET, WATER

main16321-64020i1CTL,2CTL..CV1#198308-198607

main16321-88360i3SGELU..SV12198406-198607

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1CTL,2CTL..CV1#198203-198607

sub16325-63011

16331OUTLET, WATER

main16331-63040i1SLU..SV10..5F198203-198210

sub16331-63070

main16331-63050i1SLU..SV10..5F198203-198210

COLD SPEC

main16331-63050i1SLU..SV10..4FC198207-198211

main16331-63060i1SILU,2SELU..SV10,11..5F198208-198607

main16331-63070i2SELU..SV11..4FC198207-198607

main16331-64030i1CTL,2CTL..CV1#198308-198607

main16331-88360i3SGELU..SV12198406-198607

sub16304-88360

16331ATHERMOSTAT

main90916-03046i1CTL,2CTL..CV1#198203-198607

16331BPLUG(FOR WATER OUTLET)

main90344-53011i1CTL,2CTL..CV1#198203-198607

16331GBOLT, STUD(FOR WATER INLET)

main92122-60816i1CTL,2CTL..CV1#198308-198607

16332PIPE, WATER OUTLET, NO.1

main16332-64010i1CTL,2CTL..CV1#198308-198607

16341GASKET, WATER OUTLET

main16341-63010i1S#,2SELU,3SGELU..SV1#198203-198607

sub16341-63011

main16341-64010i1CTL,2CTL..CV1#198308-198607

sub16341-64020

16345GASKET, WATER OUTLET PIPE

main16345-64020i1CTL,2CTL..CV1#198308-198607

sub16345-64040

16361FAN

main16361-63010i1SLU..SV10..5F198203-198211

main16361-63020i1S#,2SELU,3SGELU..SV1#..4FC198207-198607

sub16361-74070

main16361-63030i2SELU..SV11..5F198208-198406

main16361-63040i1SILU,2SELU,3SGELU..SV1#..5F198406-198607

main16361-64020i1CTL..CV10..4FC198308-198607

main16361-64030i1CTL..CV10..4FC198406-198508

main16361-64031i2CTL..CV11..4FC198508-198607

16362FAN, NO.2

main16361-64040i1CTL,2CTL..CV1#..4FC198406-198607

main88453-32010i1CTL..CV10..4FC198308-198406

16363MOTOR, COOLING FAN

main16363-16030i1SILU,2SELU,3SGELU..SV1#..5F198406-198607

main16363-63010i1SLU..SV10..5F198203-198211

sub16363-63011

main16363-63020i2SELU..SV11..5F198208-198406

sub16363-15090

main16363-63030i1SLU,2SELU..SV1#..4FC198207-198406

sub16363-64030

main16363-63030i1CTL..CV10198308-198406

NO.1

sub16363-64030

main16363-64020i1CTL,2CTL..CV1#..4FC198308-198607

NO.2

main16363-64030i1SILU,2SELU,3SGELU..SV1#..4FC198406-198607

NO.1

main16363-64040i1CTL..CV10..4FC198406-198508

NO.1

main16363-64050i2CTL..CV11..4FC198508-198607

NO.1

16400RADIATOR ASSY

main16400-63030i1SLU,2SELU..SV1#..5F198203-198406

sub16400-63040

main16400-63040i1SLU,2SELU..SV1#..4FC198207-198607

main16400-63120i1SILU,2SELU..SV10,11..5F198406-198607

sub16400-63040

main16400-64110i1CTL,2CTL..CV1#..5F198404-198607

sub16400-64120

main16400-64120i1CTL..CV10..4FC198404-198406

main16400-64190i1CTL..CV10..4FC198406-198508

sub16400-64191

main16400-64191i2CTL..CV11..4FC198508-198607

main16400-74040i3SGELU..SV12..5F198406-198607

sub16400-74050

main16400-74050i3SGELU..SV12..4FC198406-198607

main16410-63030i1SLU,2SELU..SV1#..5F198308-198404

sub16400-63030

main16410-63040i1SLU,2SELU..SV1#..4FC198308-198404

sub16400-63040

main16410-64090i1CTL..CV10..5F198308-198404

sub16400-64110

main16410-64100i1CTL..CV10..4FC198308-198404

sub16400-64120

16533SUPPORT, RADIATOR, UPPER

main16505-63010i1S#..SV10..5F198203-198607

main16533-63040i1SLU,2SELU..SV1#..4FC198207-198405

sub16533-63070

main16533-63070i1S#,2SELU..SV10,11..4FC198405-198607

main16533-64020i1CTL..CV10..5F198308-198412

sub16533-64021

main16533-64021i1CTL,2CTL..CV1#..5F198412-198607

main16533-64040i1CTL..CV10..4FC198406-198508

sub16533-64070

main16533-64070i2CTL..CV11..4FC198508-198607

16571HOSE, RADIATOR, INLET

main16571-63020i1S#,2SELU..SV10,11198203-198607

main16571-64070i1CTL,2CTL..CV1#198308-198607

main16571-74020i3SGELU..SV12198406-198607

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i1CTL,2CTL..CV1#198406-198607

sub90467-34003

main90467-34001i1SLU,2SELU..SV1#198203-198406

sub90467-33003

16572HOSE, RADIATOR, OUTLET

main16572-63020i1S#,2SELU..SV10,11198203-198607

main16572-64060i1CTL..CV10198308-198607

main16572-64090i1CTL,2CTL..CV1#..4FC198406-198607

main16572-74020i3SGELU..SV12198406-198607

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i1SILU,2SELU,3SGELU..SV1#198406-198607

RADIATOR SIDE

sub90467-34003

main90467-34001i1SLU,2SELU..SV1#198203-198406

sub90467-33003

main90467-34001i3SGELU..SV12198406-198406

INLET SIDE

sub90467-33003

main90467-34002i1CTL..CV10198308-198406

RADIATOR SIDE

sub90467-34003

main90467-37001i1CTL,2CTL..CV1#198309-198607

INLET SIDE

sub90467-37003

main96111-10450i1CTL..CV10198308-198309

INLET SIDE

16701SHROUD SUB-ASSY, FAN

main16711-63020i1SLU..SV10..5F198203-198211

main16711-63030i1S#,2SELU,3SGELU..SV1#..4FC198207-198607

main16711-63050i2SELU..SV11..5F198208-198406

main16711-63080i1SILU,2SELU,3SGELU..SV1#..5F198406-198607

main16711-64070i1CTL..CV10198308-198607

main16711-64090i1CTL..CV10..4FC198406-198508

main16711-64091i2CTL..CV11..4FC198508-198607

16712SHROUD, FAN, NO.2

main16712-64030i1CTL,2CTL..CV1#..4FC198406-198607

main16712-64040i1CTL..CV10..4FC198308-198406

9009905164

main90099-05164

9017906115

main90179-06115

9017908040

main90179-08040

9046400155

main90464-00155

9092901017

main90929-01017

9111150625

main91111-50625

9165140612

main91651-40612

9165140814

main91651-40814

9165160814

main91651-60814

9331514010

main93315-14010

9331515010

main93315-15010

9331516014

main93315-16014

40 parts on this diagram · 6 diagrams in section
