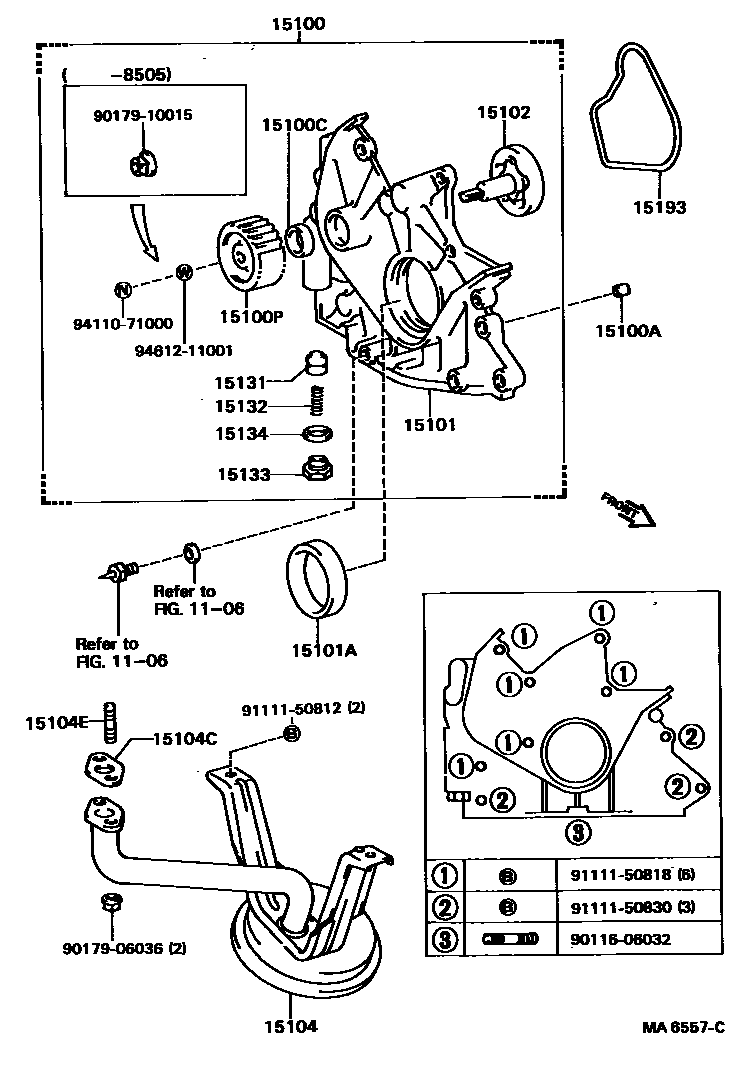

ENGINE OIL PUMP

0001 1 0002 1 0003 1

1106

15100PUMP ASSY, OIL

main15100-63010i1S#,2SELU..SV10,11198203-198607

main15100-64020i1CTL,2CTL..CV1#198308-198607

sub15100-64021

main15100-88360i3SGELU..SV12198406-198607

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i1CTL,2CTL..CV1#198308-198607

15100CSEAL(FOR OIL PUMP)

main15165-64010i1CTL..CV10198308-198505

main15165-70010i1S#,2SELU,3SGELU..SV1#198203-198607

main90029-21007i1CTL,2CTL..CV1#198505-198607

sub90029-21020

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-63010i1S#,2SELU..SV10,11198203-198607

main13524-64010i1CTL,2CTL..CV1#198308-198607

main13524-88360i3SGELU..SV12198406-198607

15101BODY SUB-ASSY, OIL PUMP

main15101-64011i1CTL,2CTL..CV1#198308-198607

sub15100-64030

sub15100-64040

15101ASEAL(FOR CRANKSHAFT)

main90311-42003i1S#,2SELU,3SGELU..SV1#198203-198505

sub90311-42026

main90311-42015i1CTL,2CTL..CV1#198505-198607

sub90311-42026

15102ROTOR SET, OIL PUMP

main15102-63010i1S#,2SELU,3SGELU..SV1#198203-198607

main15102-64020i1CTL,2CTL..CV1#198308-198607

15104STRAINER SUB-ASSY, OIL

main15104-63020i1SLU,2SELU..SV1#198203-198212

main15104-63021i1S#,2SELU..SV10,11198212-198607

main15104-64020i1CTL..CV10198308-198505

main15104-64021i1CTL,2CTL..CV1#198505-198607

sub15104-64060

main15104-88360i3SGELU..SV12198406-198607

main15104-88361i3SGELU..SV12198607-198607

sub15104-88380

15104CGASKET(FOR OIL STRAINER)

main15149-64010i1CTL,2CTL..CV1#198308-198607

sub15149-64030

main15149-88360i3SGELU..SV12198406-198607

sub23293-88360

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06032×2i1CTL,2CTL..CV1#198308-198607

15131VALVE, OIL PUMP RELIEF

main15131-24010i1S#,2SELU,3SGELU..SV1#198203-198607

main15131-64020i1CTL,2CTL..CV1#198308-198607

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i1S#,2SELU,3SGELU..SV1#198203-198607

main15132-76011i1CTL,2CTL..CV1#198308-198607

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1CTL,2CTL..CV1#198308-198607

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i1CTL,2CTL..CV1#198308-198607

15193GASKET, OIL PUMP

main15193-64021i1CTL,2CTL..CV1#198308-198607

sub15193-64022

main15197-63010i1S#,2SELU,3SGELU..SV1#198203-198607

sub15197-63020

9011606032

main90116-06032

9017906036

main90179-06036

9017910015

main90179-10015

9111150812

main91111-50812

9111150818

main91111-50818

9111150830

main91111-50830

9411071000

main94110-71000

9461211001

main94612-11001

24 parts on this diagram · 3 diagrams in section
