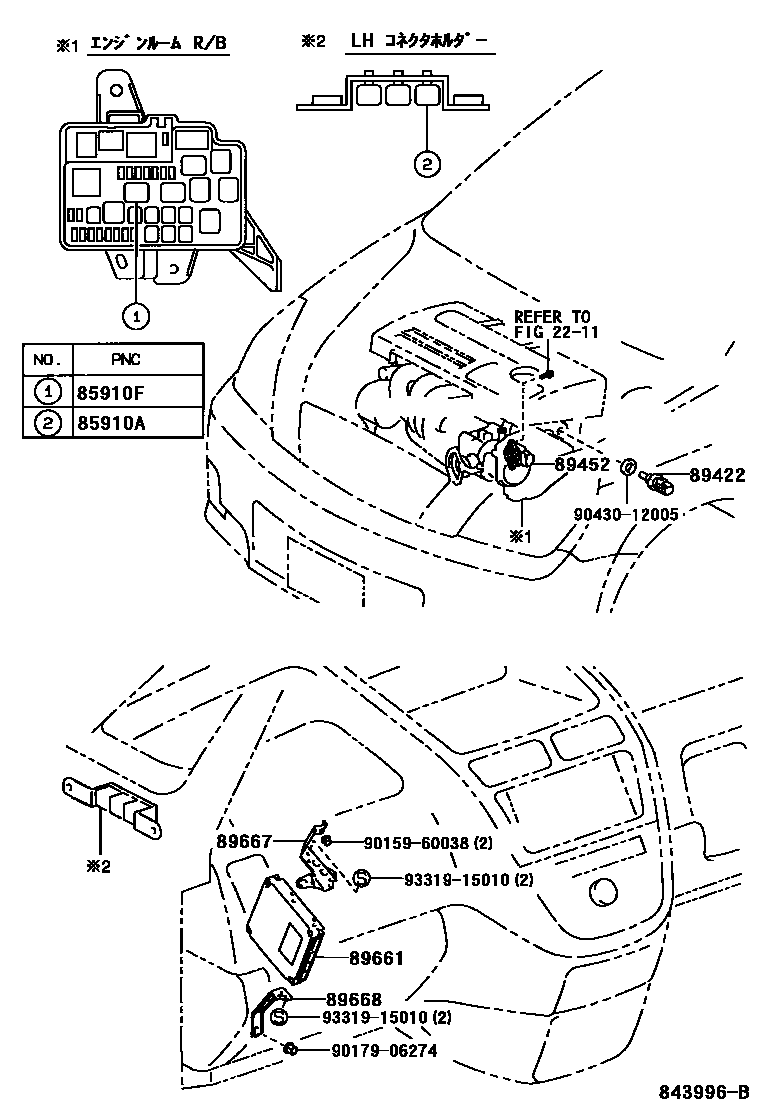

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

2211

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iACT10,ZCT1#200004-200111

main90987-02022iACT10,ZCT1#200111-200205

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iACT10,ZCT1#200004-200111

main90987-02022iACT10,ZCT1#200111-200205

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iACT10,ZCT1#200004-200205

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iZCT1#200205

89661COMPUTER, ENGINE CONTROL

main89661-63010iACT10200008-200107

sub89661-63011

main89661-63020iZCT10200004-200205

main89661-63030iZCT15200004-200205

main89661-63040iACT10200107-200205

sub89661-63041

main89661-63050iZCT10200205

main89661-63060iZCT15200205

main89661-63070iACT10200205

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-63010iACT10,ZCT1#200205

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-63010iACT10200008-200205

main89668-63020iZCT1#200004-200205

9015960038

main90159-60038

9017906274

main90179-06274

9043012005

main90430-12005

9331915010

main93319-15010

12 parts on this diagram · 2 diagrams in section
