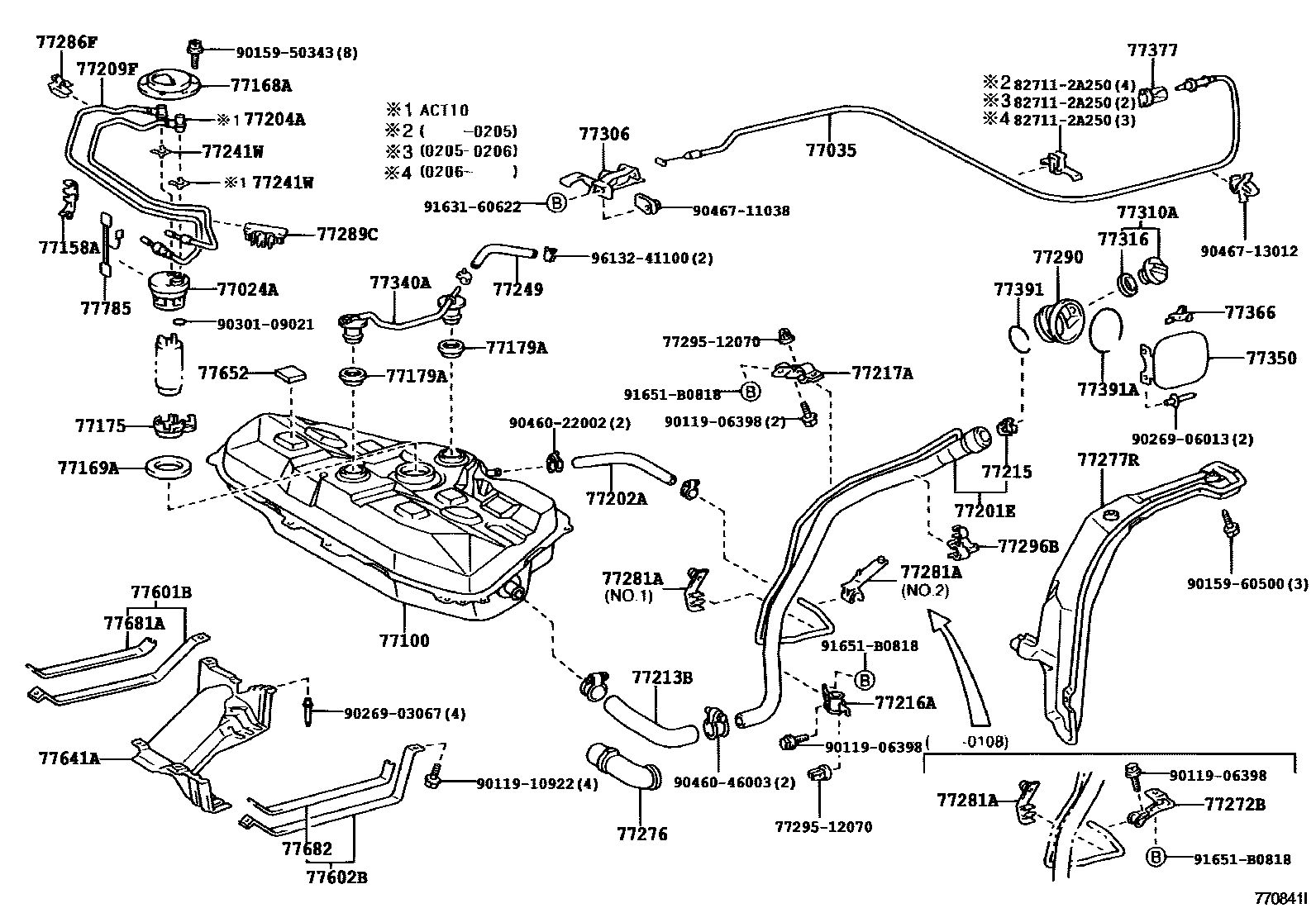

FUEL TANK & TUBE

0001 1 0002 1 0003 1

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-32040iZCT10200004-200205

main77024-32050iACT10200008-200205

main77024-42020iZCT15200205

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-63010iACT10,ZCT1#200004-200205

main77035-63020iACT10,ZCT1#200205

77100TANK ASSY, FUEL

main77001-32140iZCT15200205

sub77001-20800

main77001-32150iACT10,ZCT10200205

sub77001-20790

77158ASUPPORT, TANK SUCTION TUBE

main77158-32010×2iACT10,ZCT10200004-200205

sub77158-20040

77168APLATE, FUEL TANK VENT TUBE SET

main77168-12240iACT10,ZCT10200004-200107

main77168-33050iACT10,ZCT10200107-200205

main77168-52010iZCT15200205

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iACT10,ZCT1#200004-200205

77175SUPPORT, FUEL SUCTION, NO.2

main77175-52020iACT10,ZCT1#200004-200205

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010×2iACT10,ZCT10200004-200205

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-63020iACT10,ZCT1#200004-200205

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95313-13034iACT10,ZCT10200004-200205

77204ATUBE, FUEL TANK RETURN

main77204-32040iACT10200205

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-32020iACT10,ZCT10200205

main77209-32030iZCT15200004-200205

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-32090iACT10,ZCT10200004-200205

main77213-63010iZCT15200205

77215PLATE, FUEL TANK FILLER PIPE FLANGE

main77215-51010iACT10,ZCT1#200004-200205

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-32060iACT10,ZCT1#200004-200205

main77216-32070iACT10,ZCT1#200004-200205

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32050iACT10,ZCT1#200205

main77217-32060iACT10,ZCT1#200004-200205

77241WCLIP, TUBE JOINT

main77241-32060iZCT1#200004-200205

77249HOSE, FUEL EMISSION

main95333-06030iACT10,ZCT10200004-200205

sub95338-06030

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-32040iACT10,ZCT1#200004-200108

main77272-32050iACT10,ZCT1#200004-200108

77276PROTECTOR, FUEL HOSE

main77276-12050iACT10,ZCT1#200004-200205

sub77276-12120

sub77276-12130

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-32080iACT10,ZCT1#200004-200205

77281ACLAMP, FUEL FILLER PIPE

main77281-12070iACT10,ZCT1#200205

main77281-32040iACT10,ZCT1#200108-200205

77286FCLAMP, FUEL TUBE, NO.2

main77286-32070iACT10,ZCT10200004-200205

77289CCLAMP, FUEL TUBE, NO.4

main77289-32030iACT10,ZCT10200004-200205

sub77289-20090

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-63010iACT10,ZCT1#200004-200205

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-32020iACT10,ZCT1#200205

sub77296-32021

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-21010iACT10,ZCT1#200004-200205

77310ACAP ASSY, FUEL TANK

main77310-48010iACT10,ZCT1#200004-200205

77316GASKET, FUEL TANK CAP

main77316-16010iACT10,ZCT1#200004-200205

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-32010iACT10,ZCT10200205

77350LID ASSY, FUEL FILLER OPENING

main77350-63010iACT10,ZCT1#200205

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-21010iACT10,ZCT1#200209

main77360-35010iACT10,ZCT1#200205-200209

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iACT10,ZCT1#200004-200205

77391RING, FUEL INLET BOX

main77391-12020iACT10,ZCT1#200004-200205

77391ARING, FUEL INLET BOX

main77391-63010iACT10,ZCT1#200004-200205

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-32120iACT10,ZCT10200004-200205

sub77601-20280

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-32100iACT10,ZCT10200004-200205

sub77602-20280

77641APROTECTOR, FUEL TANK, NO.1

main77641-32060iACT10,ZCT10200205

77652CUSHION, FUEL TANK, NO.1

main77651-20090×6iZCT15200004-200205

77681ASEAT, FUEL TANK BAND

main77681-26020iACT10,ZCT10200004-200205

77682SEAT, FUEL TANK BAND, LH

main77681-32060iACT10,ZCT10200004-200205

77785HARNESS, FUEL PUMP

main77785-32010iACT10,ZCT1#200004-200205

7729512070SHIELD, FUEL FILLER PIPE

main77295-12070

827112A250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A250

9011906398

main90119-06398

9011910922

main90119-10922

9015950343

main90159-50343

9015960500

main90159-60500

9026903067

main90269-03067

9026906013

main90269-06013

9030109021

main90301-09021

9046022002

main90460-22002

9046046003

main90460-46003

9046711038

main90467-11038

9046713012

main90467-13012

9163160622

main91631-60622

91651B0818

main91651-B0818

9613241100

main96132-41100
