CAUTION PLATE (EXTERIOR & INTERIOR)

41992LABEL, DIFFERENTIAL NOTICE

main41992-33010iZCT15200004-200205

46275ALABEL, PARKING BRAKE RELEASE INFORMATION, NO.1

main46275-32010iACT10,ZCT1#200004-200205

46275BLABEL, PARKING BRAKE RELEASE INFORMATION, NO.2

main46275-47010iACT10,ZCT1#200205

main46275-63010iACT10,ZCT1#200004-200205

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-2B300iACT10,ZCT1#200205

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-51010iACT10,ZCT1#200004-200205

main69349-51010iACT10,ZCT1#200004-200205

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-28060iACT10,ZCT1#200004-200205

74561ALABEL, FUEL CONSUMPTION INFORMATION

main74561-52010iZCT1#200404

main74561-52020iACT10200404

74562BLABEL, EMISSION INFORMATION

main74562-12610iZCT1#200402

main74562-40040iACT10,ZCT1#200004-200205

main74562-40050iZCT1#200205-200402

74751LABEL, TIRE PRESSURE INFORMATION

main42661-63010iZCT10..A200004-200205

main42661-63020iACT10,ZCT10..I200004-200205

main42661-63030iZCT15200004-200205

75341CPLATE, HOOD NAME

main75341-20060iACT10,ZCT1#200004-200205

82685PLATE, CAUTION

main82685-63010iACT10,ZCT1#200004-200205

main82685-63011iACT10,ZCT1#200205

87529BLABEL, A/C FILTER INFORMATION

main87529-50020iACT10,ZCT1#200004-200205

88723ELABEL, COOLER SERVICE CAUTION

main88723-22060iACT10,ZCT1#200004-200202

main88733-20010iACT10,ZCT1#200202-200205

89176ALABEL, AIRBAG DEPLOYMENT INFORMATION

main89176-32010iACT10,ZCT1#200004-200205

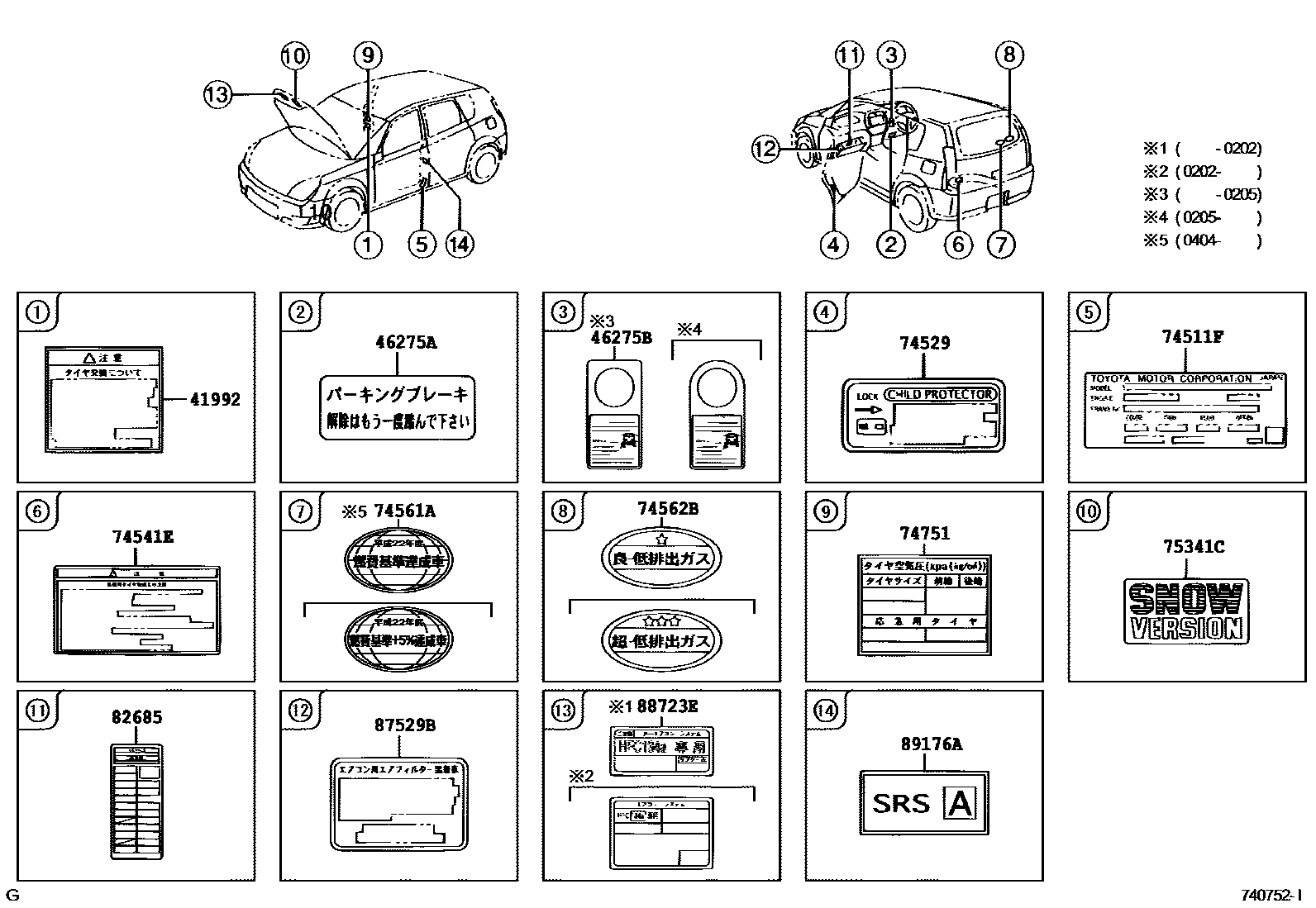

14 parts on this diagram · 1 diagram in section
