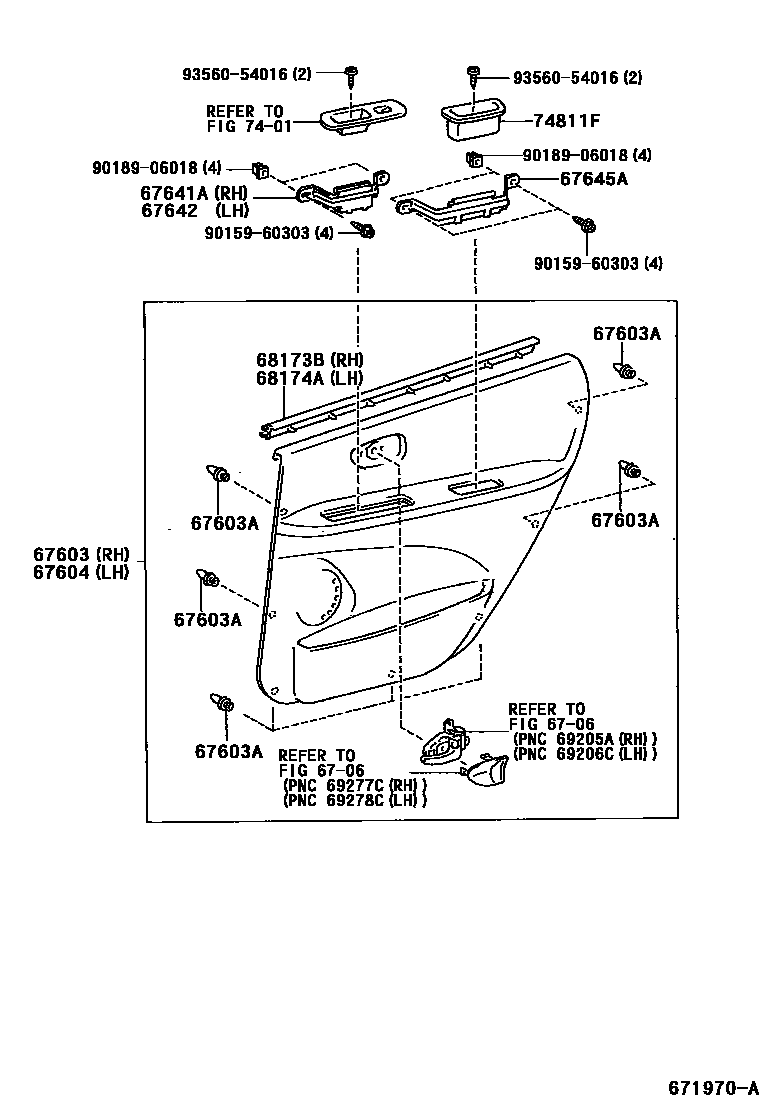

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

6706

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-63010-B0iACT10,ZCT1#..I200004-200108

main67630-63020-B0iACT10,ZCT1#..I200004-200205

main67630-63030-B0iACT10,ZCT1#..A200004-200108

main67630-63031-B1iACT10,ZCT1#200108-200205

main67630-63040-B0iACT10,ZCT1#200205

LT.GRAY,TRIM1#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-28020×14iACT10,ZCT1#200004-200108

main90467-09203×4iACT10,ZCT1#200108-200205

main90467-09206×10iACT10,ZCT1#200108-200205

main90467-10161×10iACT10,ZCT1#200205

main90467-10188×4iACT10,ZCT1#200205

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-63010-B0iACT10,ZCT1#..I200004-200108

main67640-63020-B0iACT10,ZCT1#..I200004-200205

main67640-63030-B0iACT10,ZCT1#..A200004-200108

main67640-63031-B1iACT10,ZCT1#200108-200205

main67640-63040-B0iACT10,ZCT1#200205

LT.GRAY,TRIM1#

67641ABRACKET, REAR DOOR TRIM, NO.1 RH

main67641-63010iACT10,ZCT1#200004-200205

67642BRACKET, REAR DOOR TRIM, NO.1 LH

main67642-63010iACT10,ZCT1#200004-200205

67645ABRACKET, REAR DOOR ARMREST SET, RH

main67645-63010×2iACT10,ZCT1#200004-200205

main67645-63020×2iACT10,ZCT1#200205

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-63010iACT10,ZCT1#200004-200205

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-63010iACT10,ZCT1#200004-200205

7401

74811FHANDLE, DOOR PULL

main74811-12050-B1×2iACT10,ZCT1#200004-200205

DK.GRAY,TRIM1#

9015960303

main90159-60303

9018906018

main90189-06018

9356054016

main93560-54016

14 parts on this diagram · 3 diagrams in section
