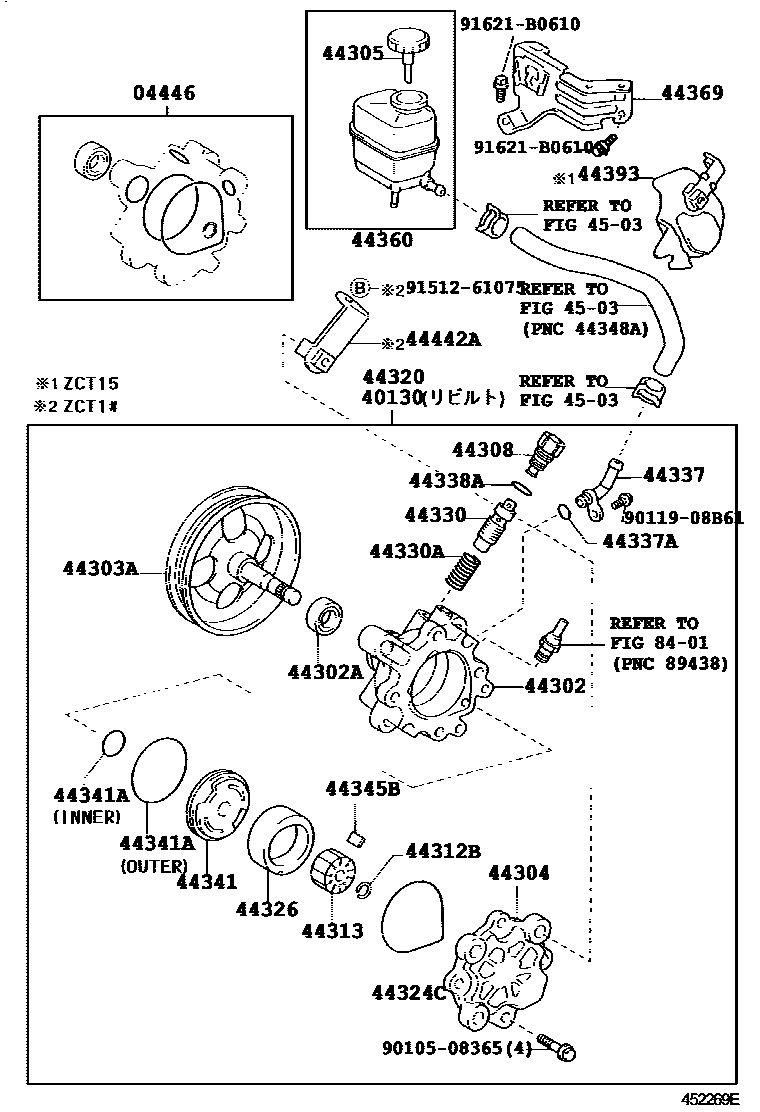

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iACT10,ZCT1#200004-200205

40130PUMP ASSY,VANE REBUILT

main40130-32300iACT10200107-200205

main40130-63010iACT10200008-200107

main40130-63020iZCT1#200205

sub40130-20860

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-32100iACT10,ZCT1#200004-200205

44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)

main90311-15012iACT10,ZCT1#200004-200205

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iACT10200205

main44303-32010iZCT1#200205

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-32041iACT10,ZCT1#200004-200205

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-20041iACT10,ZCT1#200004-200205

sub44305-20050

44308UNION SUB-ASSY, PRESSURE PORT

main44308-32090iACT10,ZCT1#200004-200205

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iACT10,ZCT1#200004-200205

44313ROTOR, VANE PUMP

main44313-32060iACT10,ZCT1#200004-200205

main44313-32070iACT10,ZCT1#200004-200205

main44313-32080iACT10,ZCT1#200004-200205

main44313-32090iACT10,ZCT1#200004-200205

main44313-32100iACT10,ZCT1#200004-200205

44320PUMP ASSY, VANE

main44310-32300iACT10200107-200205

main44310-63010iACT10200008-200107

main44310-63020iZCT1#200205

sub44310-20860

44324CRING, O(FOR PUMP HOUSING REAR)

main90903-01007iACT10,ZCT1#200004-200205

44326RING, CAM(FOR VANE PUMP)

main44325-32340iACT10,ZCT1#200004-200205

main44325-32350iACT10,ZCT1#200004-200205

main44325-32360iACT10,ZCT1#200004-200205

main44325-32370iACT10,ZCT1#200004-200205

main44325-32380iACT10,ZCT1#200004-200205

44330VALVE ASSY, FLOW CONTROL

main44330-32850iACT10,ZCT1#200004-200205

main44330-32860iACT10,ZCT1#200004-200205

main44330-32870iACT10,ZCT1#200004-200205

main44330-32880iACT10,ZCT1#200004-200205

main44330-32890iACT10,ZCT1#200004-200205

main44330-3H010iACT10,ZCT1#200004-200205

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iACT10,ZCT1#200004-200205

44337UNION, POWER STEERING SUCTION PORT

main44337-32110iZCT1#200107-200205

main44337-48010iACT10200205

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iACT10,ZCT1#200004-200205

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-18009iACT10,ZCT1#200004-200205

44341PLATE, VANE PUMP SIDE, FRONT

main44341-32031iACT10,ZCT1#200004-200205

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-16012iACT10,ZCT1#200004-200205

main90301-45003iACT10,ZCT1#200004-200205

44345BPLATE, VANE PUMP

main44345-32100×10iACT10,ZCT1#200004-200205

main44345-32110×10iACT10,ZCT1#200004-200205

main44345-32120×10iACT10,ZCT1#200004-200205

main44345-32130×10iACT10,ZCT1#200004-200205

main44345-32140×10iACT10,ZCT1#200004-200205

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-20150iACT10,ZCT1#200004-200205

44369BRACKET, OIL RESERVOIR, NO.1

main44390-63010iACT10,ZCT1#200004-200205

44393INSULATOR, POWER STEERING PUMP HEAT

main44393-63010iZCT15200004-200205

44442ABRACKET, VANE PUMP, REAR

main44442-32020iZCT1#200004-200205

main44442-63010iZCT10200205

4503

8401

9010508365

main90105-08365

9011908B61

main90119-08B61

9151261075

main91512-61075

91621B0610

main91621-B0610

31 parts on this diagram · 2 diagrams in section
