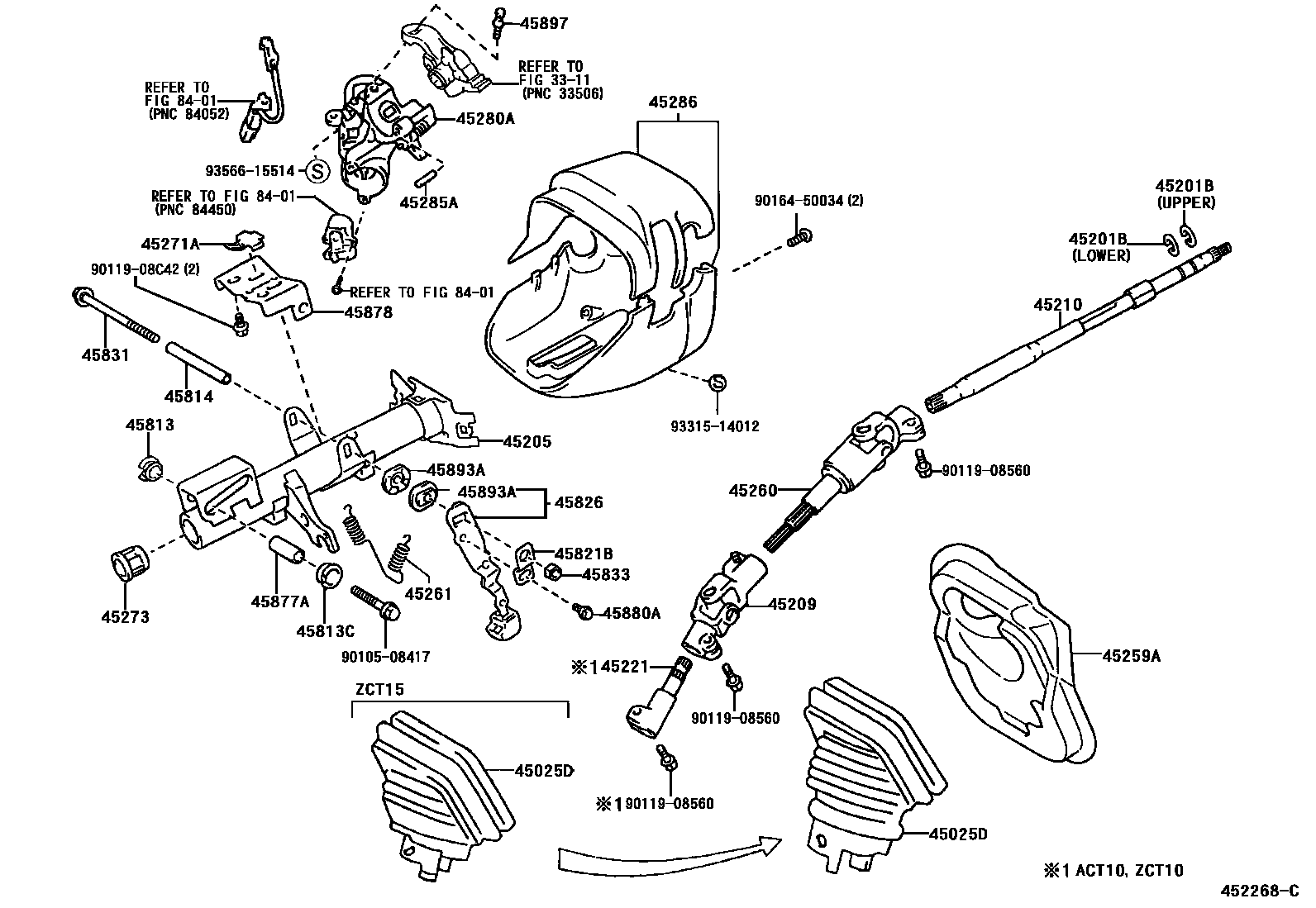

STEERING COLUMN & SHAFT
3311
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45221SHAFT, STEERING INTERMEDIATE
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45261SPRING, TILT STEERING JUMP UP
45271ACLAMP, STEERING COLUMN, UPPER NO.2
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45285APIN, STEERING LOCK
45286COVER, STEERING COLUMN
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
45813COLLAR, TILT STEERING SUPPORT, NO.1
45813CCOLLAR, TILT STEERING SUPPORT, NO.1
45814COLLAR, TILT STEERING SUPPORT, NO.2
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826LEVER, STEERING TILT
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45877ASPACER, STEERING COLUMN BRACKET
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45880ABOLT(FOR STEERING TILT LEVER)
45893ASTOPPER, TILT STEERING PAWL
45897BOLT, STEERING LOCK SET
8401
9010508417
main90105-08417
9011908560
main90119-08560
9011908C42
main90119-08C42
9016450034
main90164-50034
9331514012
main93315-14012
9356615514
main93566-15514
34 parts on this diagram · 2 diagrams in section
