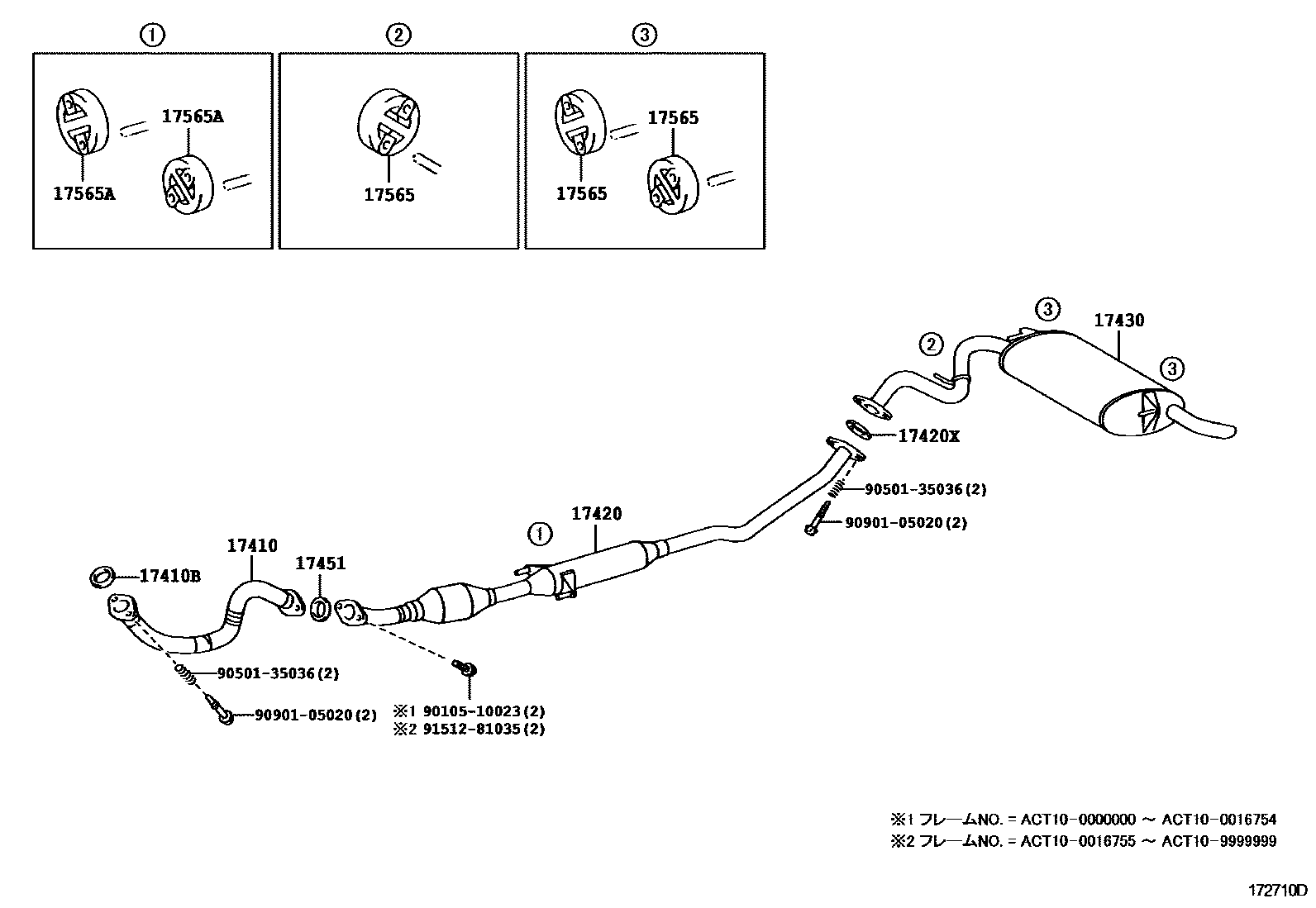

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-22220i1ZZFE..ZCT10200004-200205

main17410-22230i1ZZFE..ZCT15200004-200205

main17410-22400i1ZZFE..ZCT15200205

main17410-22450i1ZZFE..ZCT10200205

main17410-28200i1AZFSE..ACT10200008-200205

17410BGASKET, EXHAUST PIPE

main17451-21030i1ZZFE..ZCT15200004-200205

main17451-22070i1ZZFE..ZCT10200205

main17451-74040i1AZFSE..ACT10200008-200205

17420PIPE ASSY, EXHAUST, CENTER

main17420-22050i1ZZFE..ZCT15200004-200205

main17420-22060i1ZZFE..ZCT15200205

main17420-28060i1AZFSE..ACT10200008-200104

main17420-28061i1AZFSE..ACT10200104-200205

main17420-28190i1AZFSE..ACT10200205

17420XGASKET, EXHAUST PIPE, CENTER

main17451-74060i1AZFSE..ACT10200205

main90917-06044i1ZZFE..ZCT15200004-200205

17430PIPE ASSY, EXHAUST, TAIL

main17430-22200i1ZZFE..ZCT10200004-200205

main17430-22210i1ZZFE..ZCT15200004-200205

main17430-22380i1ZZFE..ZCT10200205

main17430-28200i1AZFSE..ACT10200008-200205

main17430-28420i1AZFSE..ACT10200205

17451GASKET, EXHAUST PIPE

main17451-16030i1ZZFE..ZCT10200004-200205

main17451-21050i1ZZFE..ZCT15200205

main17451-64030i1ZZFE..ZCT15200004-200112

sub17451-64031

main90917-06078i1AZFSE..ACT10200008-200205

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-28010×2i1AZFSE,1ZZFE..ACT10,ZCT10200212-200504

main17565-74280×2i1ZZFE..ZCT15200205-200211

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11160×2i1AZFSE,1ZZFE..ACT10,ZCT1#200004-200205

main17565-22030×2i1AZFSE,1ZZFE..ACT10,ZCT1#200212-200504

9010510023

main90105-10023

9050135036

main90501-35036

9090105020

main90901-05020

9151281035

main91512-81035

12 parts on this diagram · 5 diagrams in section
