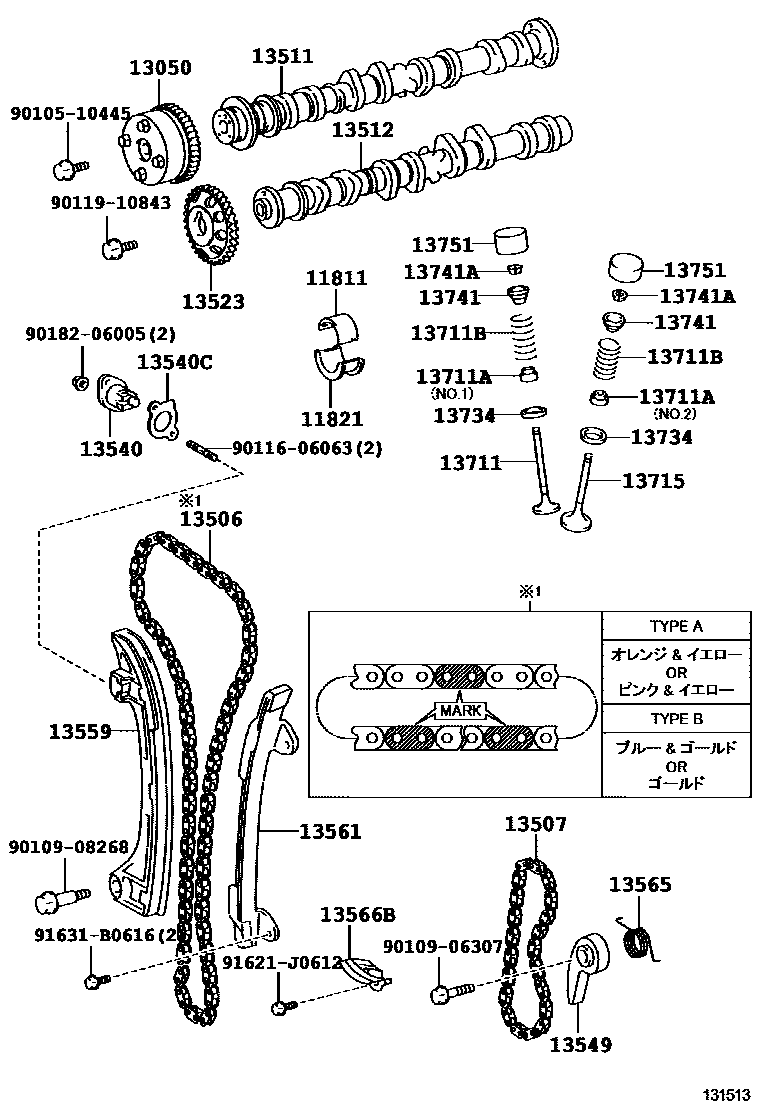

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13507CHAIN SUB-ASSY, NO.2
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
***
13751LIFTER, VALVE
9010510445
main90105-10445
9010906307
main90109-06307
9010908268
main90109-08268
9011606063
main90116-06063
9011910843
main90119-10843
9018206005
main90182-06005
91621J0612
main91621-J0612
91631B0616
main91631-B0616
31 parts on this diagram · 2 diagrams in section
