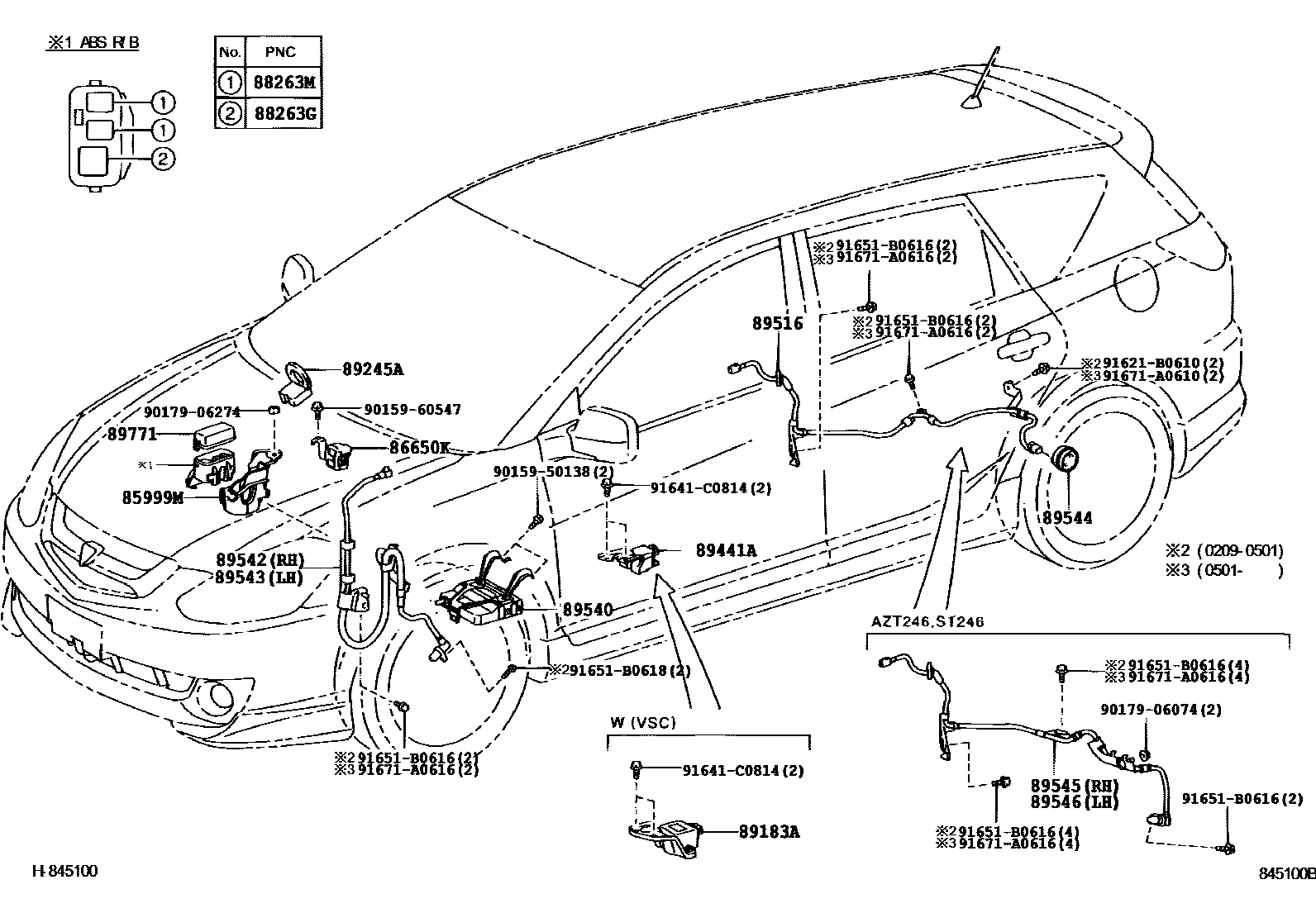

ABS & VSC

85999MBRACKET, RELAY

86650KBUZZER ASSY, SKID CONTROL

88263GRELAY, SKID CONTROL

88263MRELAY, ABS SOLENOID

89183ASENSOR, YAWRATE

89245ASENSOR, STEERING

89441ASENSOR, DECELERATION

main89440-32040iAZT246200501

89516WIRE, SKID CONTROL SENSOR

main89516-21030iAZT241,ZZT241200501

main89516-21040iAZT241,ZZT241200209-200501

89540COMPUTER ASSY, SKID CONTROL

main89540-21020supersedes 89540-21050iST246200209-200501

89542SENSOR, SPEED, FRONT RH

main89542-20170iAZT24#,ST246,ZZT241200209-200501

89543SENSOR, SPEED, FRONT LH

main89543-20170iAZT24#,ST246,ZZT241200209-200501

89544SENSOR, SKID CONTROL

main89544-32030iAZT241,ZZT241200209-200310

main89544-32040×2iAZT241,ZZT241200209-200501

89545SENSOR, SPEED, REAR RH

main89545-21030iAZT246,ST246200209-200501

89546SENSOR, SPEED, REAR LH

main89546-21030iAZT246,ST246200209-200501

89771COVER, ABS RELAY BLOCK, UPPER

main89771-21020

9015950138

main90159-50138

9015960547

main90159-60547

9017906074

main90179-06074

9017906274

main90179-06274

91621B0610

main91621-B0610

91641C0814

main91641-C0814

91651B0616

main91651-B0616

91651B0618

main91651-B0618

91671A0610

main91671-A0610

91671A0616

main91671-A0616

25 parts on this diagram · 1 diagram in section
