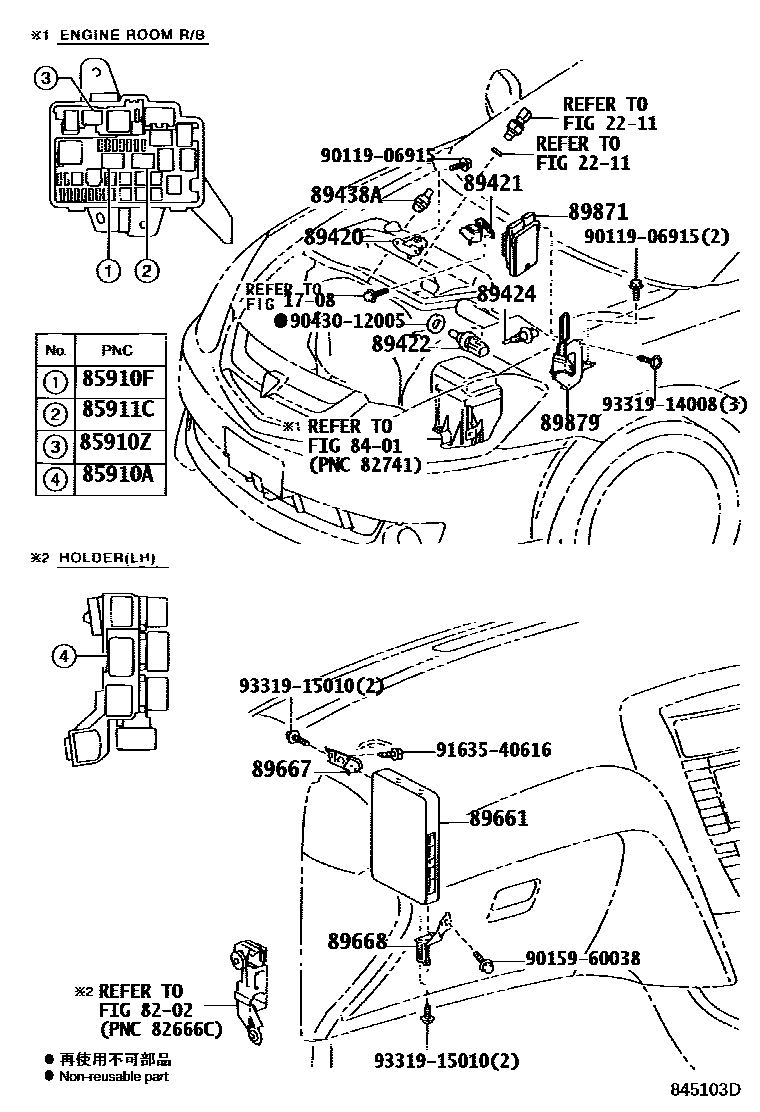

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1708

2211

8202

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02022iAZT24#,ST246,ZZT241200209-200611

main90987-02027iAZT24#,ST246,ZZT241200612-200706

85910FRELAY, COMPUTER (FOR EFI)

main90987-02022iAZT24#,ST246,ZZT241200209-200611

main90987-02027iAZT24#,ST246,ZZT241200612-200706

85910ZRELAY, INJECTION (FOR EFI)

main90987-02022iAZT24#200209-200611

main90987-02027iAZT24#200612-200706

85911CRELAY, EFI 2

main90987-02022iAZT24#200209-200611

main90987-02027iAZT24#200612-200706

89420SENSOR ASSY, VACUUM

main89420-20350iAZT24#200209-200501

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-20190iAZT24#200209-200706

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iST246200209-200706

main89422-22030iST246200209-200706

main89422-33030iAZT24#200501-200706

main89422-35010iZZT241200209-200706

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAZT24#,ST246200209-200501

main89424-24010iST246200209-200501

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iAZT24#,ST246,ZZT241200209-200706

89661COMPUTER, ENGINE CONTROL

main89661-21290iAZT241200209-200501

main89661-21380iAZT246200209-200501

main89661-21400iZZT241200209-200501

main89661-21410iST246200209-200501

main89661-21430iAZT241200501

main89661-21440iAZT246200501

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20420iAZT24#,ST246,ZZT241200209-200501

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20370iZZT241200209-200501

main89668-20380iAZT24#200209-200501

main89668-21040iST246200209-200501

89871DRIVER, INJECTOR

main89871-20040iAZT24#200209-200501

main89871-28010iAZT24#200501

89879BRACKET, INJECTOR DRIVER

main89879-20100iAZT24#200209-200501

9011906915

main90119-06915

9015960038

main90159-60038

9043012005

main90430-12005

9163540616

main91635-40616

9331914008

main93319-14008

9331915010

main93319-15010

24 parts on this diagram · 3 diagrams in section
