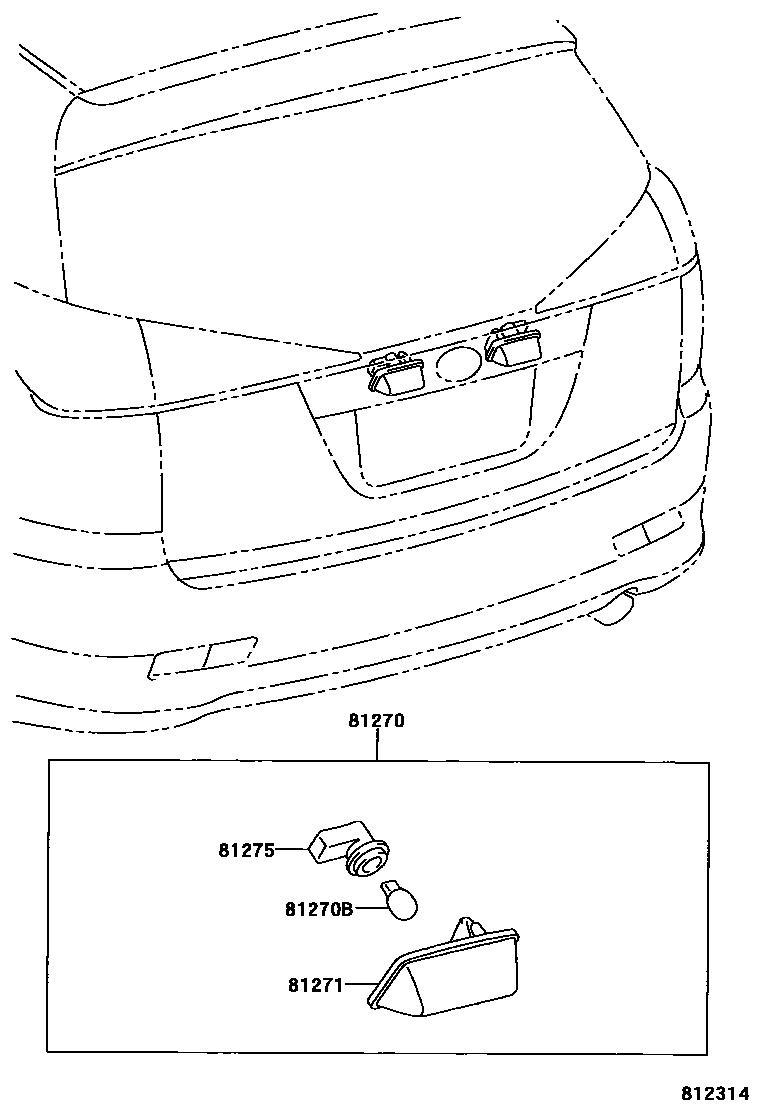

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-12501iAZT24#,ST246,ZZT241200209-200704

sub81270-12502

main81270-12502iAZT24#,ST246,ZZT241200705

sub81270-12503

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iAZT24#,ST246,ZZT241200209-200501

81271LENS, LICENSE PLATE LAMP

main81271-12501iAZT24#,ST246,ZZT241200209-200705

sub81271-12502

main81271-12502iAZT24#,ST246,ZZT241200705

sub81271-12503

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12501iAZT24#,ST246,ZZT241200209-200501

4 parts on this diagram · 1 diagram in section
