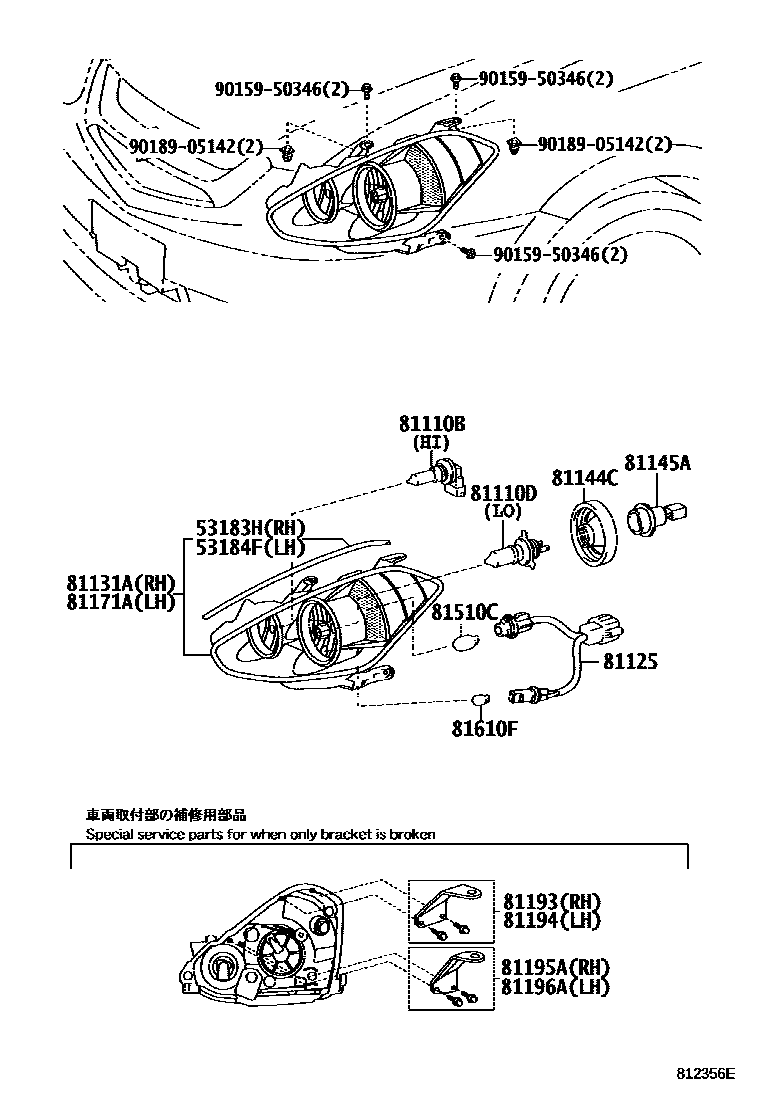

HEADLAMP
53183HSEAL, HEADLAMP COVER, RH
53184FSEAL, HEADLAMP COVER, LH
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
sub90981-13046
81110DBULB(FOR HEADLAMP, NO.2)
81125CORD, HEADLAMP
81131AUNIT, HEADLAMP, RH
81144CCOVER, HEADLAMP SOCKET
81145COVER, HEADLAMP, NO.2
81145AADAPTER ASSY
81171AUNIT, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81610FBULB(FOR CLEARANCE LAMP)
9015950346
main90159-50346
9018905142
main90189-05142
19 parts on this diagram · 3 diagrams in section
