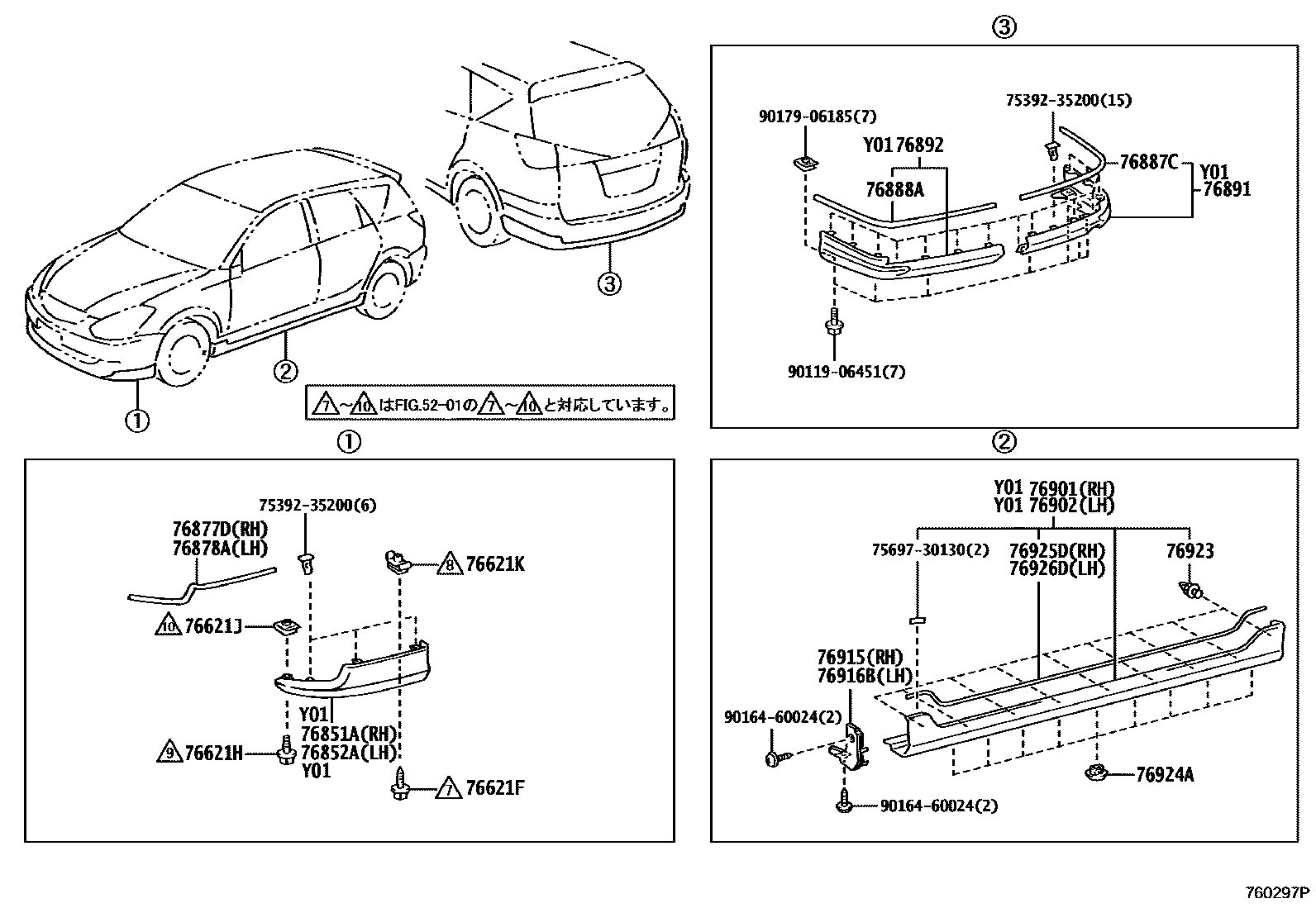

MUDGUARD & SPOILER
76621FSCREW, NO.1
76621HBOLT, NO.1
76621JNUT, NO.1
76621KCLIP, NO.1
76851ACOVER, FRONT SPOILER, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
DK.GRAY M.M.,1E9
BLACK MC.,209
SUPER RED 5,3P0
ORANGE ME.,4R1
BLUE M.M.,8Q1
76852ACOVER, FRONT SPOILER, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
DK.GRAY M.M.,1E9
BLACK MC.,209
SUPER RED 5,3P0
ORANGE ME.,4R1
BLUE M.M.,8Q1
76877DPROTECTOR, FRONT SPOILER SIDE, RH
sub76877-21050
sub76877-21050
sub76877-21050
sub76877-21070
sub76877-21070
sub76877-21070
sub76877-21070
sub76877-21060
sub76877-21060
76878APROTECTOR, FRONT SPOILER SIDE, LH
sub76877-21050
sub76877-21050
sub76877-21050
sub76878-21070
sub76878-21070
sub76878-21070
sub76878-21070
sub76878-21060
sub76878-21060
76887CPROTECTOR, REAR SPOILER, NO.9 RH
76888APROTECTOR, REAR SPOILER, NO.9 LH
76891SPOILER, REAR NO.1
sub76087-21010
sub76087-21010
sub76087-21010
sub76087-21010
sub76087-21010
sub76087-21010
sub76087-21010
sub76087-21010
76892SPOILER, REAR NO.2
sub76088-21040
sub76088-21040
sub76088-21040
sub76088-21040
sub76088-21040
sub76088-21040
sub76088-21040
sub76088-21040
76901MUDGUARD SUB-ASSY, SIDE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
DK.GRAY M.M.,1E9
SILVER ME.,1F7
BLACK MC.,209
SUPER RED 5,3P0
ORANGE ME.,4R1
BLUE M.M.,8Q1
76902MUDGUARD SUB-ASSY, SIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
DK.GRAY M.M.,1E9
SILVER ME.,1F7
BLACK MC.,209
SUPER RED 5,3P0
ORANGE ME.,4R1
BLUE M.M.,8Q1
76915MUDGUARD, REAR DOOR, RH
76916BMUDGUARD, REAR DOOR, LH
76923RETAINER, SIDE MUDGUARD
76924ARETAINER, SIDE MUDGUARD, NO.2
76925DPROTECTOR, SIDE MUDGUARD, RH
76926DPROTECTOR, SIDE MUDGUARD, LH
7539235200RETAINER, OUTSIDE MOULDING
main75392-35200
7569730130PAD, BODY OUTSIDE MOULDING, NO.2
main75697-30130
9011906451
main90119-06451
9016460024
main90164-60024
9017906185
main90179-06185
25 parts on this diagram · 3 diagrams in section
