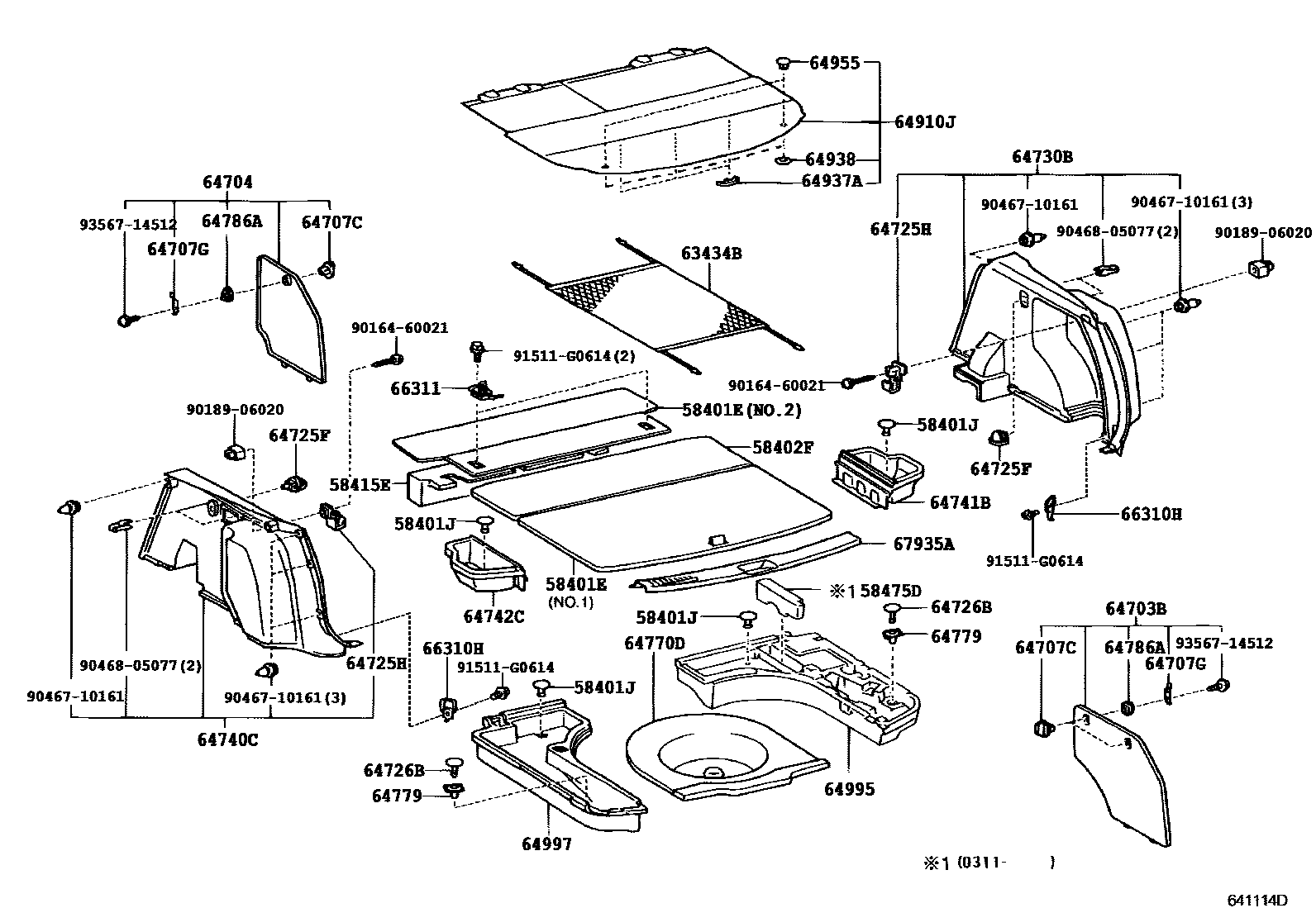

DECK BOARD & DECK TRIM COVER
58401EBOARD SUB-ASSY, DECK
58401JCLIP(FOR DECK BOAD)
58402FBOARD SUB-ASSY, REAR FLOOR, NO.2
DARK GRAY,TRIM1#
BLACK,TRIM2#
58415EBOARD, REAR FLOOR, NO.1
58475DCOVER, ECU SERVICE
63434BNET, ROOM RACK
64703BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM2#
64704COVER SUB-ASSY, DECK SIDE TRIM, LH
BLACK,TRIM2#
64707CKNOB, JACK COVER
64707GSTOPPER, JACK COVER
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM2#
64725HHOOK, QUARTER TRIM,
64726BCLIP, DECK REAR TRIM
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM2#
DARK GRAY,TRIM1#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM2#
DARK GRAY,TRIM1#
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
64770DCOVER ASSY, SPARE WHEEL
64779TRAY, SPARE WHEEL COVER
64786APLATE, JACK COVER
64910JCOVER ASSY, TONNEAU
BLACK,TRIM2#
DK.GRAY,TRIM1#
64937ACAP, TONNEAU COVER HOLDER, NO.1
BLACK,TRIM2#
64938HOOK, TONNEAU COVER, A
BLACK,TRIM2#
64955CLAMP, TONNEAU COVER SUB
BLACK,TRIM2#
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
66310HHOOK ASSY, ROPE
66311HOOK, ROPE
BLACK,TRIM2#
67935APLATE, BACK DOOR SCUFF
9016460021
main90164-60021
9018906020
main90189-06020
9046710161
main90467-10161
9046805077
main90468-05077
91511G0614
main91511-G0614
9356714512
main93567-14512
35 parts on this diagram · 3 diagrams in section
