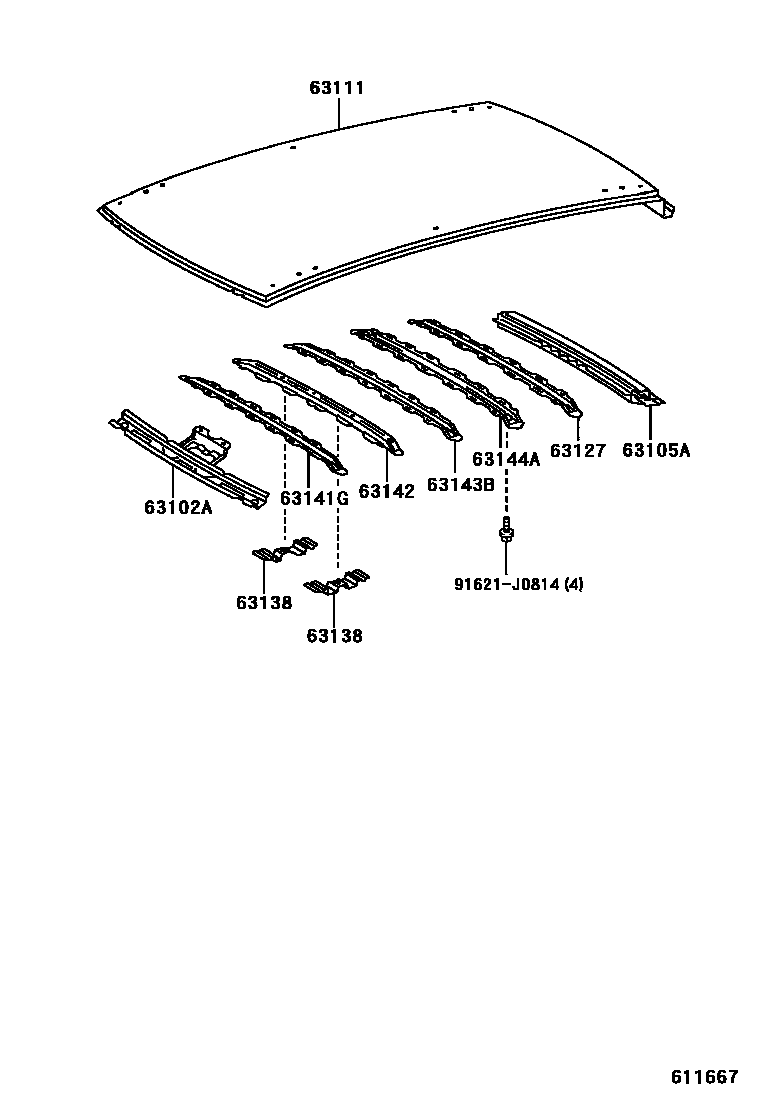

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1��(�-� �-�) 0003 1��(�-� �-�) 0004 1��(�-� ���)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63132-21020supersedes 63102-21030iAZT24#,ST246,ZZT241200209-200501

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-21040iAZT24#,ST246,ZZT241200209-200212

main63105-21041iAZT24#,ST246,ZZT241200212-200501

63111PANEL, ROOF

main63111-21140supersedes 63111-21130iAZT24#,ST246,ZZT241200209-200501

main63111-21150supersedes 63111-21130iAZT24#,ST246,ZZT241200209-200501

main63111-21160supersedes 63111-21130iAZT24#,ST246,ZZT241..GT4,Z,ZT200501

63127REINFORCEMENT, ROOF PANEL, NO.5

main63148-21050iAZT24#,ST246,ZZT241200209-200501

63138BRACKET, DOME LAMP, NO.2

main63138-12011×2iAZT24#,ST246,ZZT241200209-200501

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-21070iAZT24#,ST246,ZZT241200209-200501

63142REINFORCEMENT, ROOF PANEL, NO.2

main63103-63010supersedes 63141-21060iAZT24#,ST246,ZZT241200209-200501

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-21060supersedes 63144-21050iAZT24#,ST246,ZZT241200209-200501

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63149-21020iAZT24#,ST246,ZZT241200209-200501

91621J0814

main91621-J0814

10 parts on this diagram · 4 diagrams in section
